DANFOSS HEATING 003Z3145 003Z3145 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

003Z3145 DANFOSS HEATING TVM-W DN20 2g with NR

Name: 003Z3145 DANFOSS HEATING TVM-W DN20 2g with NR
Brand: DANFOSS HEATING
SKU: DAS003Z3145
Price: 114.49 USD
Availability: OutOfStock

Reference: 003Z3145

Manufacturer: DANFOSS HEATING

Description:

TVM-W DN20 2g with NR

TVM-W, DN 20

Categories:

DANFOSS HEATING

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING

More Info
PDF
Reviews

Guarantee, repair and return.

Unit Price: 102,28 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 10 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

MORE INFO

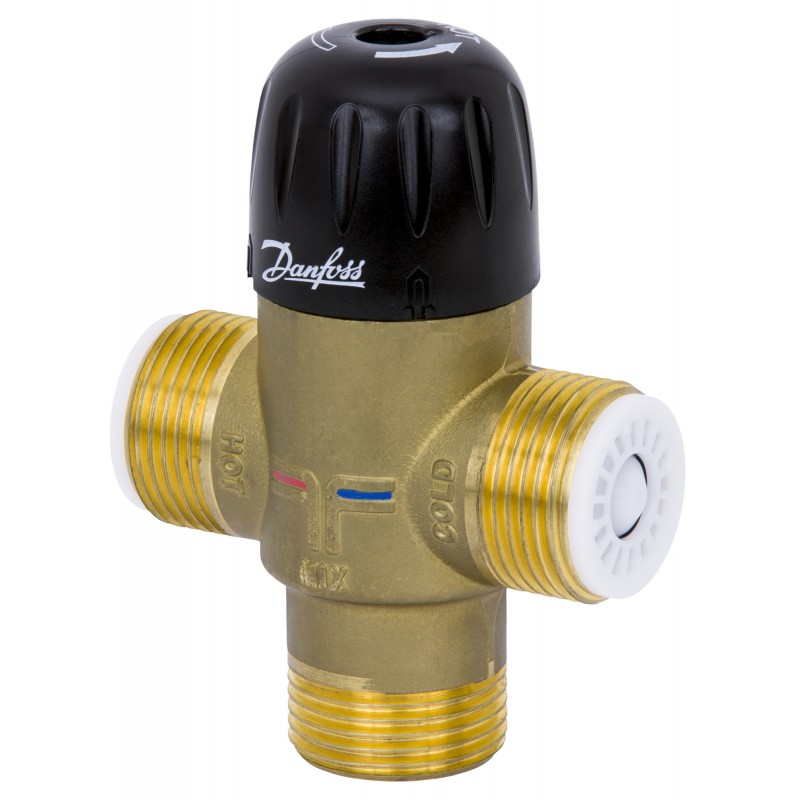

TVM-W DN 20, thermostatic mixing valve

Product details

Gross weight	0.416 Kilogram
Net weight	0.35 Kilogram
Volume	0.488 Liter

EAN	5702425101700
Type	TVM-W
Product group	Hot water balancing

Gross weight	0.416 Kilogram
Net weight	0.35 Kilogram
Volume	0.488 Liter
EAN	5702425101700
Type	TVM-W
Product group	Hot water balancing

China RoHS compliance	Out of scope
Connection types	External Thread
Contains batteries	No
Description	TVM-W DN 20, thermostatic mixing valve
Differential pressure range [bar] [Max]	5 bar
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(c)
Factory setting [°C]	50 °C
Integrated non-return valve	Yes
Kvs value with non-return valve [m3/h]	2.1 m³/h
Label product	Yes

Media temperature [°C] [Max]	90 °C
Pressure class	PN 10
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
RoHS Compliant	Out of scope
SCIP dossier no.	053b7914-9873-46c2-9c7f-7244cdc4e115
SCIP dossier product name	"003Z3145"
Temperature setting range [°C] [Max]	70 °C
Temperature setting range [°C] [Min]	35 °C
Valve body material	DZR brass + antilimescale treatment
Valve size	DN 20

China RoHS compliance	Out of scope
Connection types	External Thread
Contains batteries	No
Description	TVM-W DN 20, thermostatic mixing valve
Differential pressure range [bar] [Max]	5 bar
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(c)
Factory setting [°C]	50 °C
Integrated non-return valve	Yes
Kvs value with non-return valve [m3/h]	2.1 m³/h
Label product	Yes
Media temperature [°C] [Max]	90 °C
Pressure class	PN 10
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
RoHS Compliant	Out of scope
SCIP dossier no.	053b7914-9873-46c2-9c7f-7244cdc4e115
SCIP dossier product name	"003Z3145"
Temperature setting range [°C] [Max]	70 °C
Temperature setting range [°C] [Min]	35 °C
Valve body material	DZR brass + antilimescale treatment
Valve size	DN 20

DATASHEET - PDF

Title

Size

Type

003Z3145 003Z3145 ES_003Z3145.pdf

746 Kbytes

PDF CATALOGUE DANFOSS HEATING EN

11 Mbytes
