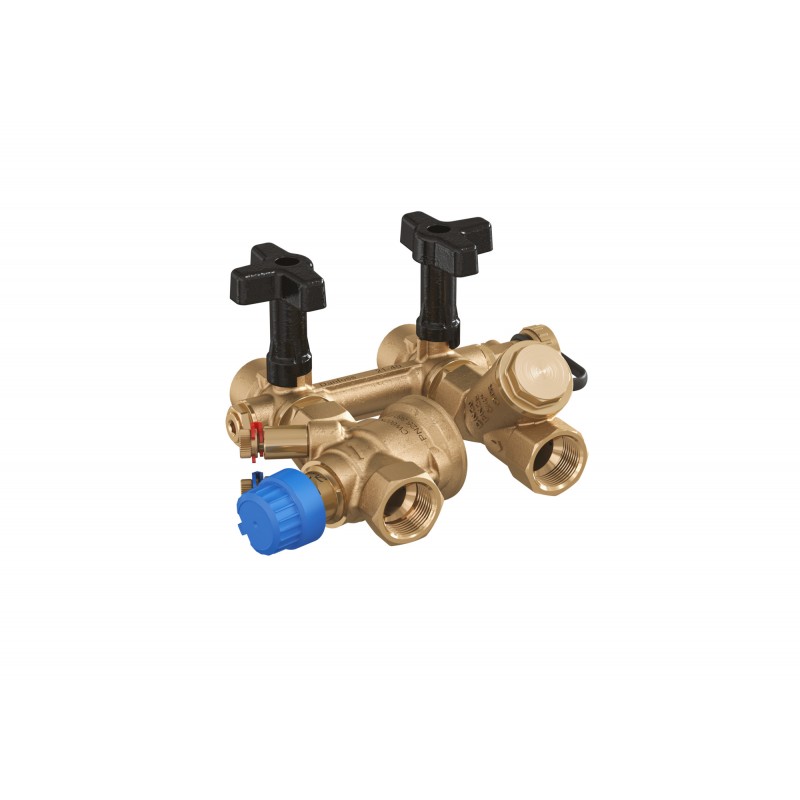

003Z1624 DANFOSS HEATING AB-QM 4.0 Flexo 80 DN20HF w. strainer
003Z1624
DANFOSS HEATING
AB-QM 4.0 Flexo 80 L DN20HF w. strainer
AB-QM Flexo, DN 20 HF; High flow, High flow, With test plugs, Version: Left-hand
Home > DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
Best sellers
▲More info
▲AB-QM 4.0 Flexo 80 DN20 HF w. strainer
Product details
| Gross weight | 2.23 Kilogram |
| Net weight | 1.73 Kilogram |
| Volume | 10.108 Liter |
| EAN | 5702424604691 |
| Type | AB-QM Flexo |
| Product group | Pressure independent balancing and control valves |
| Gross weight | 2.23 Kilogram |
| Net weight | 1.73 Kilogram |
| Volume | 10.108 Liter |
| EAN | 5702424604691 |
| Type | AB-QM Flexo |
| Product group | Pressure independent balancing and control valves |
| China RoHS compliance | Yes with exemptions |
| China RoHS exemption clause | 7.3 |
| Connection types | Internal thread |
| Contains batteries | No |
| Description | AB-QM 4.0 Flexo 80 DN20 HF w. strainer |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow nominal [m³/h] | 1.9 m³/h |
| Flow type | High flow |
| Media temperature [°C] [Max] | 95 °C |
| Media temperature [°C] [Min] | -10 °C |
| Pressure class | PN 25 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 76d8332e-0aba-4f91-b613-8ca82287d6e7 |
| SCIP dossier product name | AB-QM 4.0 Flexo Left,Right - hand version |
| Test plugs | With test plugs |
| Valve size | DN 20 HF High flow |
| Version | Left-hand |
| China RoHS compliance | Yes with exemptions |
| China RoHS exemption clause | 7.3 |
| Connection types | Internal thread |
| Contains batteries | No |
| Description | AB-QM 4.0 Flexo 80 DN20 HF w. strainer |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow nominal [m³/h] | 1.9 m³/h |
| Flow type | High flow |
| Media temperature [°C] [Max] | 95 °C |
| Media temperature [°C] [Min] | -10 °C |
| Pressure class | PN 25 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 76d8332e-0aba-4f91-b613-8ca82287d6e7 |
| SCIP dossier product name | AB-QM 4.0 Flexo Left,Right - hand version |
| Test plugs | With test plugs |
| Valve size | DN 20 HF High flow |
| Version | Left-hand |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
| 003Z1624 003Z1624 EN_003Z4794.pdf | 2 Mbytes |
|
