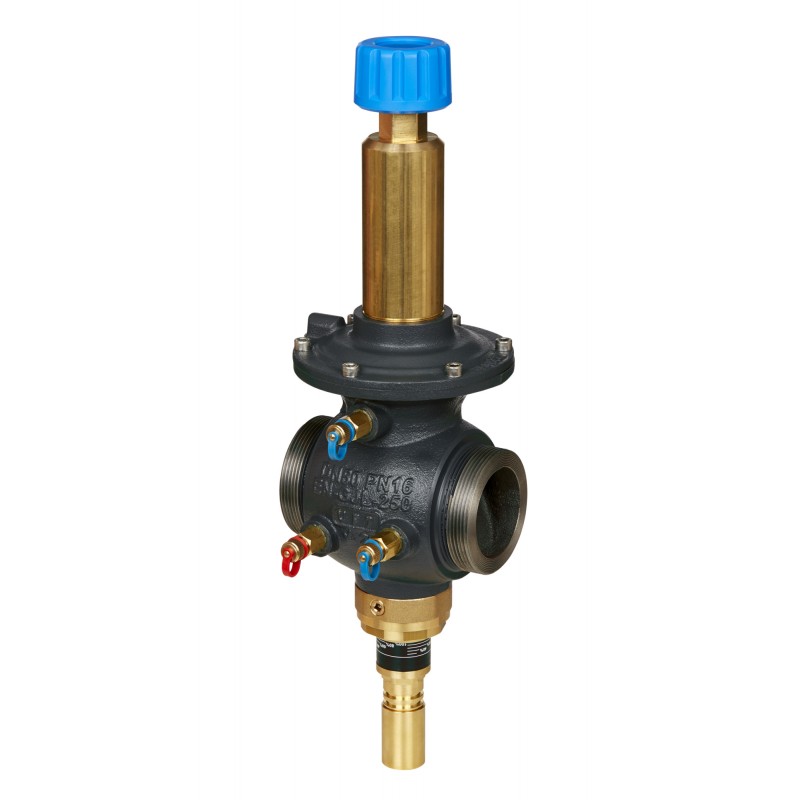

003Z1435 DANFOSS HEATING AB-PM DN40 balancing valve
003Z1435
DANFOSS HEATING
AB-PM DN40 balancing valve
AB-PM, DN 40, External Thread
Home > DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
Best sellers
▲More info
▲AB-PM DN 40, combined automatic balancing valve
Product details
| Gross weight | 7.905 Kilogram |
| Net weight | 6.834 Kilogram |
| Volume | 18.073 Liter |
| EAN | 5710104095493 |
| Type | AB-PM |
| Product group | Automatic balancing |
| Gross weight | 7.905 Kilogram |
| Net weight | 6.834 Kilogram |
| Volume | 18.073 Liter |
| EAN | 5710104095493 |
| Type | AB-PM |
| Product group | Automatic balancing |
| Actuator connection | Danfoss standard |
| China RoHS compliance | Out of scope |
| Connection types | External Thread |
| Contains batteries | No |
| Description | AB-PM DN 40, combined automatic balancing valve |
| Differential pressure [kPa] [Max] | 400 KPa |
| Differential pressure [kPa] [Min] | 42 KPa |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Impulse tube length [m] | 2.5 m |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | -10 °C |
| Mounting position | Return pipe |
| Pressure class | PN 16 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Valve body material | Grey cast iron EN-GJL-250 (GG-25) |
| Valve size | DN 40 |
| Actuator connection | Danfoss standard |
| China RoHS compliance | Out of scope |
| Connection types | External Thread |
| Contains batteries | No |
| Description | AB-PM DN 40, combined automatic balancing valve |
| Differential pressure [kPa] [Max] | 400 KPa |
| Differential pressure [kPa] [Min] | 42 KPa |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Impulse tube length [m] | 2.5 m |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | -10 °C |
| Mounting position | Return pipe |
| Pressure class | PN 16 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Valve body material | Grey cast iron EN-GJL-250 (GG-25) |
| Valve size | DN 40 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
| 003Z1435 003Z1435 EN_003Z0226.pdf | 2 Mbytes |
|
