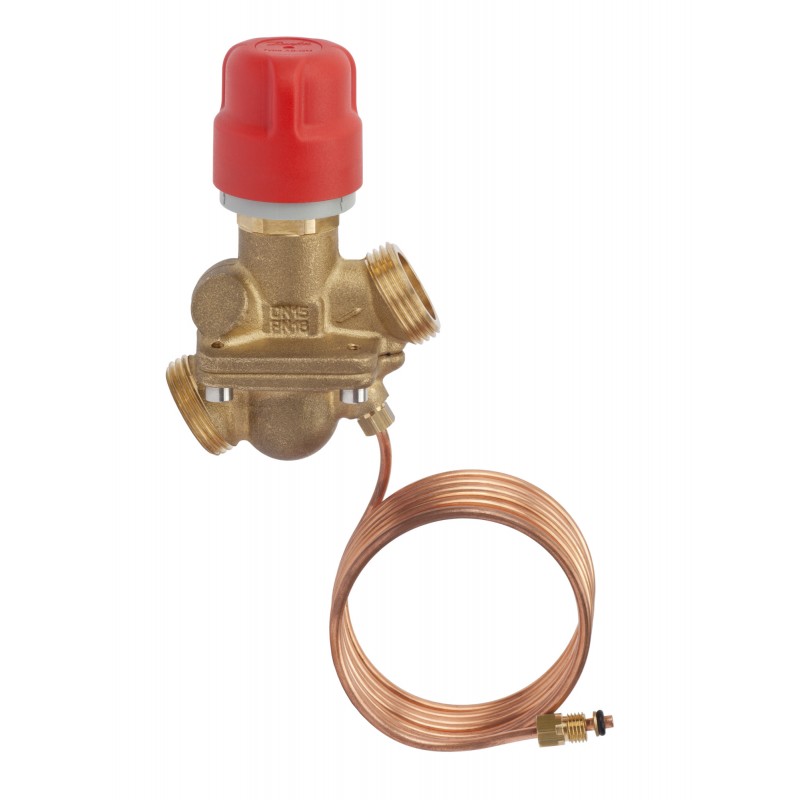

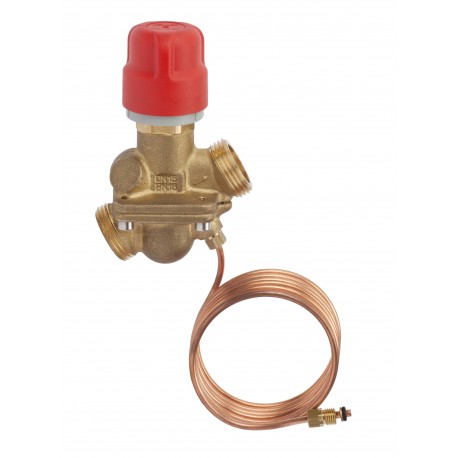

003Z1415 DANFOSS HEATING AB-PM DN32 HP without test plugs
Reference: 003Z1415
Manufacturer: DANFOSS HEATING
Description:
AB-PM DN32 HP without test plugs
AB-PM, DN 32, High pressure, External Thread
Categories:
- DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
- More Info
- Reviews
MORE INFO
AB-PM HP DN 32, without test plugs, combined automatic balancing valve,
Product details
| Gross weight | 2.346 Kilogram |
| Net weight | 2.14 Kilogram |
| Volume | 2.615 Liter |
| EAN | 5710104083742 |
| Type | AB-PM |
| Product group | Automatic balancing |
| Gross weight | 2.346 Kilogram |
| Net weight | 2.14 Kilogram |
| Volume | 2.615 Liter |
| EAN | 5710104083742 |
| Type | AB-PM |
| Product group | Automatic balancing |
| Actuator connection | M30 x 1.5 |
| China RoHS compliance | Out of scope |
| Connection types | External Thread |
| Contains batteries | No |
| Description | AB-PM HP DN 32, without test plugs, combined automatic balancing valve, |
| Differential pressure [kPa] [Max] | 400 KPa |
| Differential pressure [kPa] [Min] | 28 KPa |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Impulse tube length [m] | 1.5 m |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | -10 °C |
| Mounting position | Supply pipe |
| Pressure class | PN 16 |
| Pressure version | High pressure |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 79fd6551-fe13-4c30-9548-73d8970a1e8d |
| SCIP dossier product name | AB-PM DN32 HP without test plugs |
| Valve body material | DZR brass CuZn36Pb2AS (CW 602N) |
| Valve size | DN 32 |
| Actuator connection | M30 x 1.5 |
| China RoHS compliance | Out of scope |
| Connection types | External Thread |
| Contains batteries | No |
| Description | AB-PM HP DN 32, without test plugs, combined automatic balancing valve, |
| Differential pressure [kPa] [Max] | 400 KPa |
| Differential pressure [kPa] [Min] | 28 KPa |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Impulse tube length [m] | 1.5 m |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | -10 °C |
| Mounting position | Supply pipe |
| Pressure class | PN 16 |
| Pressure version | High pressure |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 79fd6551-fe13-4c30-9548-73d8970a1e8d |
| SCIP dossier product name | AB-PM DN32 HP without test plugs |
| Valve body material | DZR brass CuZn36Pb2AS (CW 602N) |
| Valve size | DN 32 |
DATASHEET - PDF
Title
Size
Type
11 Mbytes
