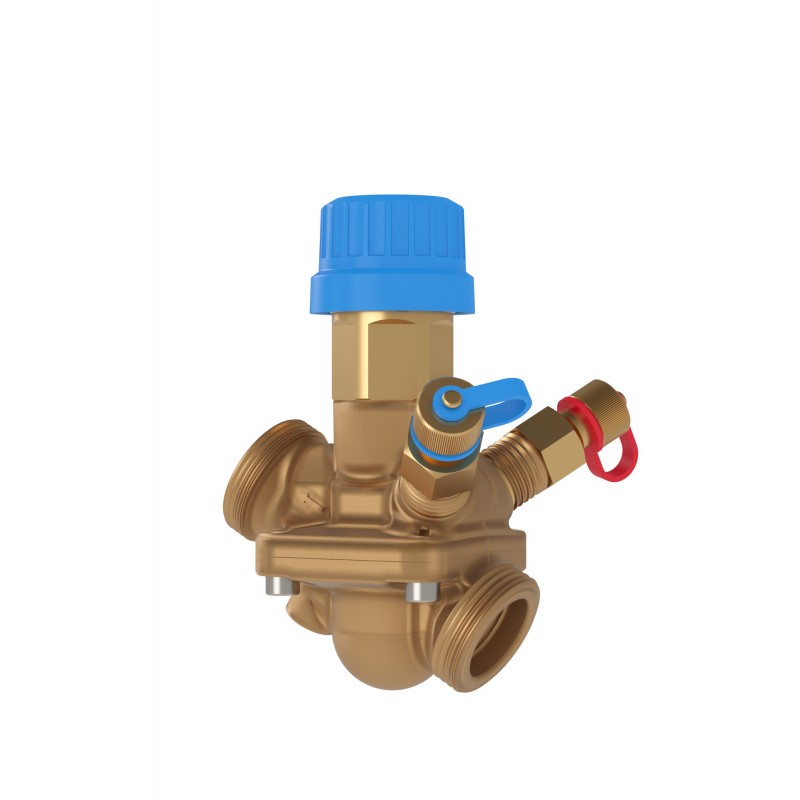

003Z1262 DANFOSS HEATING AB-QM DN15 Low F with m. nipples
003Z1262
DANFOSS HEATING
AB-QM DN15 Low F with m. nipples
AB-QM, DN 15, Low flow, With test plugs, External Thread
Home > DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
Best sellers
▲More info
▲AB-QM DN 15 Low flow, with test plugs, pressure independent balancing and control valve
Product details
| Gross weight | 0.512 Kilogram |
| Net weight | 0.496 Kilogram |
| Volume | 0.922 Liter |
| EAN | 5710104030043 |
| Type | AB-QM |
| Product group | Pressure independent balancing and control valves |
| Gross weight | 0.512 Kilogram |
| Net weight | 0.496 Kilogram |
| Volume | 0.922 Liter |
| EAN | 5710104030043 |
| Type | AB-QM |
| Product group | Pressure independent balancing and control valves |
| Actuator connection | M30 x 1.5 |
| China RoHS compliance | Out of scope |
| Connection types | External Thread |
| Contains batteries | No |
| Description | AB-QM DN 15 Low flow, with test plugs, pressure independent balancing and control valve |
| Differential pressure [kPa] [Max] | 600 KPa |
| EPD available | Yes |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow nominal [m³/h] | 0.275 m³/h |
| Flow type | Low flow |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | -10 °C |
| Pressure class | PN 16 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 4dda221e-77f1-40d7-89bf-d243e1245977 |
| SCIP dossier product name | AB-QM DN15 Low F with m. nipples |
| Starting pressure [kPa] | 16 KPa |
| Stroke [mm] | 2.25 mm |
| Test plugs | With test plugs |
| Valve body material | DZR Brass (CW 602N) |
| Valve size | DN 15 |
| Version | AB-QM 3.0 |
| Actuator connection | M30 x 1.5 |
| China RoHS compliance | Out of scope |
| Connection types | External Thread |
| Contains batteries | No |
| Description | AB-QM DN 15 Low flow, with test plugs, pressure independent balancing and control valve |
| Differential pressure [kPa] [Max] | 600 KPa |
| EPD available | Yes |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow nominal [m³/h] | 0.275 m³/h |
| Flow type | Low flow |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | -10 °C |
| Pressure class | PN 16 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 4dda221e-77f1-40d7-89bf-d243e1245977 |
| SCIP dossier product name | AB-QM DN15 Low F with m. nipples |
| Starting pressure [kPa] | 16 KPa |
| Stroke [mm] | 2.25 mm |
| Test plugs | With test plugs |
| Valve body material | DZR Brass (CW 602N) |
| Valve size | DN 15 |
| Version | AB-QM 3.0 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
| 003Z1262 003Z1262 EN_003Z8307.pdf | 5 Mbytes |
|
