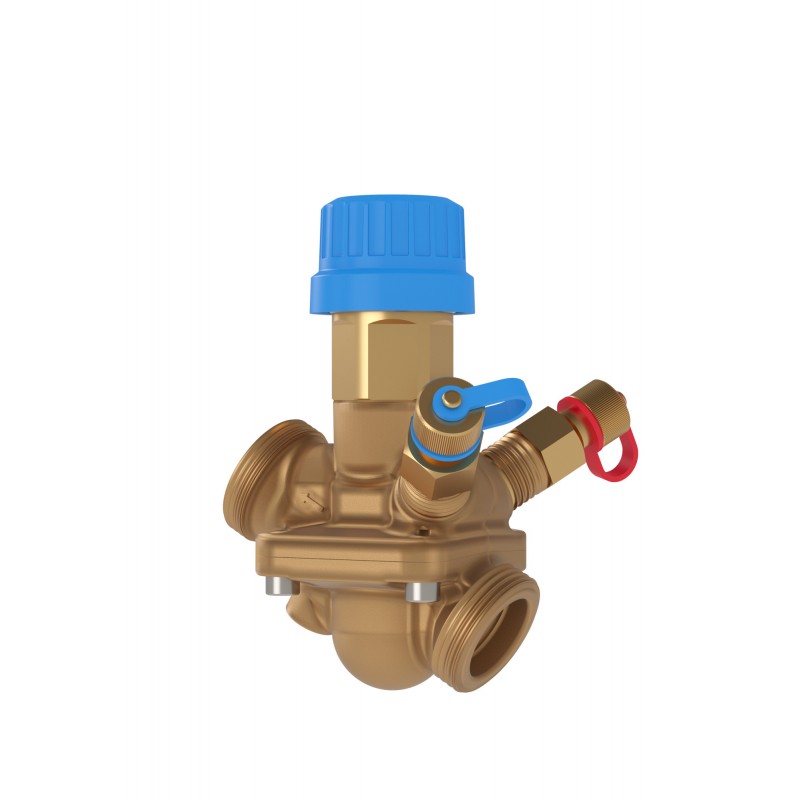

DANFOSS HEATING 003Z1261 003Z1261 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

003Z1261 DANFOSS HEATING AB-QM DN10 Low F with measuring nipples

Reference: 003Z1261

Manufacturer: DANFOSS HEATING

Description:

AB-QM DN10 Low F with measuring nipples
AB-QM, DN 10, Low flow, Without test plugs, External Thread

Categories:

  • DANFOSS HEATING

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 128,05 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

AB-QM DN 10 Low flow, with test plugs, pressure independent balancing and control valve

Product details

Gross weight0.39 Kilogram
Net weight0.39 Kilogram
Volume0.903 Liter
EAN5710104030029
TypeAB-QM
Product groupPressure independent balancing and control valves
Gross weight0.39 Kilogram
Net weight0.39 Kilogram
Volume0.903 Liter
EAN5710104030029
TypeAB-QM
Product groupPressure independent balancing and control valves

Actuator connectionM30 x 1.5
China RoHS complianceOut of scope
Connection typesExternal Thread
Contains batteriesNo
DescriptionAB-QM DN 10 Low flow, with test plugs, pressure independent balancing and control valve
Differential pressure [kPa] [Max]600 KPa
EPD availableYes
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(c)
Flow nominal [m³/h]0.15 m³/h
Flow typeLow flow
Media temperature [°C] [Max]120 °C
Media temperature [°C] [Min]-10 °C
Pressure classPN 16
REACH Candidate List substancesLead (CAS no. 7439-92-1)
SCIP dossier no.1d98cfbf-8a65-4028-a9cf-3b714af1b427
SCIP dossier product nameAB-QM DN10 Low F with measuring nipples
Starting pressure [kPa]16 KPa
Stroke [mm]2.25 mm
Test plugsWithout test plugs
Valve body materialDZR Brass (CW 602N)
Valve sizeDN 10
VersionAB-QM 3.0
Actuator connectionM30 x 1.5
China RoHS complianceOut of scope
Connection typesExternal Thread
Contains batteriesNo
DescriptionAB-QM DN 10 Low flow, with test plugs, pressure independent balancing and control valve
Differential pressure [kPa] [Max]600 KPa
EPD availableYes
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(c)
Flow nominal [m³/h]0.15 m³/h
Flow typeLow flow
Media temperature [°C] [Max]120 °C
Media temperature [°C] [Min]-10 °C
Pressure classPN 16
REACH Candidate List substancesLead (CAS no. 7439-92-1)
SCIP dossier no.1d98cfbf-8a65-4028-a9cf-3b714af1b427
SCIP dossier product nameAB-QM DN10 Low F with measuring nipples
Starting pressure [kPa]16 KPa
Stroke [mm]2.25 mm
Test plugsWithout test plugs
Valve body materialDZR Brass (CW 602N)
Valve sizeDN 10
VersionAB-QM 3.0

DATASHEET - PDF
