Images are for illustrative purposes only. Please refer to data sheet for details.

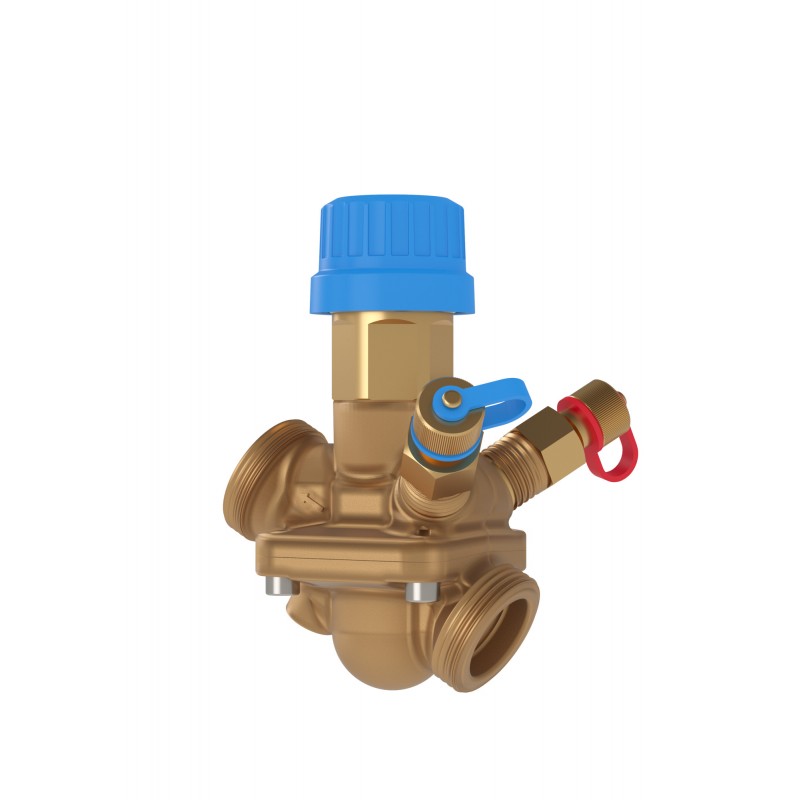

003Z1213 DANFOSS HEATING AB-QM DN20 with measuring nipples
Reference: 003Z1213
Manufacturer: DANFOSS HEATING
Description:
AB-QM DN20 with measuring nipples
AB-QM, DN 20, With test plugs, External Thread
Categories:
- DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
- More Info
- Reviews
LAST VIEWED
MORE INFO
AB-QM DN 20, with test plugs, pressure independent balancing and control valve
Product details
| Gross weight | 0.742 Kilogram |
| Net weight | 0.726 Kilogram |
| Volume | 1.359 Liter |
| EAN | 5710104029924 |
| Type | AB-QM |
| Product group | Pressure independent balancing and control valves |
| Gross weight | 0.742 Kilogram |
| Net weight | 0.726 Kilogram |
| Volume | 1.359 Liter |
| EAN | 5710104029924 |
| Type | AB-QM |
| Product group | Pressure independent balancing and control valves |
| Actuator connection | M30 x 1.5 |
| China RoHS compliance | Out of scope |
| Connection types | External Thread |
| Contains batteries | No |
| Description | AB-QM DN 20, with test plugs, pressure independent balancing and control valve |
| Differential pressure [kPa] [Max] | 600 KPa |
| EPD available | Yes |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow nominal [m³/h] | 0.9 m³/h |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | -10 °C |
| Pressure class | PN 16 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | f4ceaad6-920c-4e6d-9ec8-8dac7938b76c |
| SCIP dossier product name | AB-QM DN20 with measuring nipples |
| Starting pressure [kPa] | 16 KPa |
| Stroke [mm] | 2.25 mm |
| Test plugs | With test plugs |
| Valve body material | DZR Brass (CW 602N) |
| Valve size | DN 20 |
| Version | AB-QM 3.0 |
| Actuator connection | M30 x 1.5 |
| China RoHS compliance | Out of scope |
| Connection types | External Thread |
| Contains batteries | No |
| Description | AB-QM DN 20, with test plugs, pressure independent balancing and control valve |
| Differential pressure [kPa] [Max] | 600 KPa |
| EPD available | Yes |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow nominal [m³/h] | 0.9 m³/h |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | -10 °C |
| Pressure class | PN 16 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | f4ceaad6-920c-4e6d-9ec8-8dac7938b76c |
| SCIP dossier product name | AB-QM DN20 with measuring nipples |
| Starting pressure [kPa] | 16 KPa |
| Stroke [mm] | 2.25 mm |
| Test plugs | With test plugs |
| Valve body material | DZR Brass (CW 602N) |
| Valve size | DN 20 |
| Version | AB-QM 3.0 |
DATASHEET - PDF
