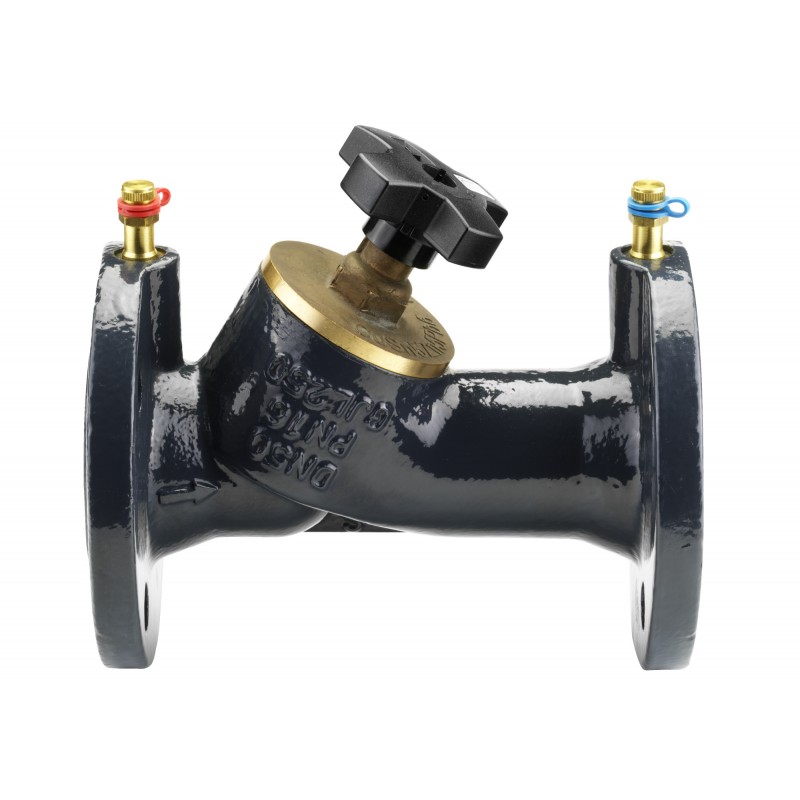

DANFOSS HEATING 003Z1095 003Z1095 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

003Z1095 DANFOSS HEATING MSV-F2 DN32 w. measuring nipples (PN25)

Reference: 003Z1095

Manufacturer: DANFOSS HEATING

Description:

MSV-F2 DN32 w. measuring nipples (PN25)
MSV-F2, DN 32, PN 25, Flange

Categories:

  • DANFOSS HEATING

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 299,18 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

MSV-F2 DN 32 with test plugs PN25, manual balancing valve

Product details

Gross weight5.55 Kilogram
Net weight5.54 Kilogram
Volume6.084 Liter
EAN5702421557747
TypeMSV-F2
Product groupManual balancing
Gross weight5.55 Kilogram
Net weight5.54 Kilogram
Volume6.084 Liter
EAN5702421557747
TypeMSV-F2
Product groupManual balancing

China RoHS complianceOut of scope
Connection typesFlange
Contains batteriesNo
DescriptionMSV-F2 DN 32 with test plugs PN25, manual balancing valve
Differential pressure over the valve [kPa] [Max]200 KPa
Drain functionNo
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(c)
Kvs values [m³/h]15.5 m³/h
Media temperature [°C] [Max]150 °C
Media temperature [°C] [Min]-10 °C
Pressure classPN 25
REACH Candidate List substancesLead (CAS no. 7439-92-1)
SCIP dossier no.82522435-9abe-47bb-9a5c-ad1ddeb2eb2f
SCIP dossier product nameMSV-F2 DN15-DN50
Setting scaleYes
Shut-off functionYes
Test plugsWith test plugs
Valve body materialDuctile iron (EN-GJS 400-15)
Valve sizeDN 32
China RoHS complianceOut of scope
Connection typesFlange
Contains batteriesNo
DescriptionMSV-F2 DN 32 with test plugs PN25, manual balancing valve
Differential pressure over the valve [kPa] [Max]200 KPa
Drain functionNo
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(c)
Kvs values [m³/h]15.5 m³/h
Media temperature [°C] [Max]150 °C
Media temperature [°C] [Min]-10 °C
Pressure classPN 25
REACH Candidate List substancesLead (CAS no. 7439-92-1)
SCIP dossier no.82522435-9abe-47bb-9a5c-ad1ddeb2eb2f
SCIP dossier product nameMSV-F2 DN15-DN50
Setting scaleYes
Shut-off functionYes
Test plugsWith test plugs
Valve body materialDuctile iron (EN-GJS 400-15)
Valve sizeDN 32
