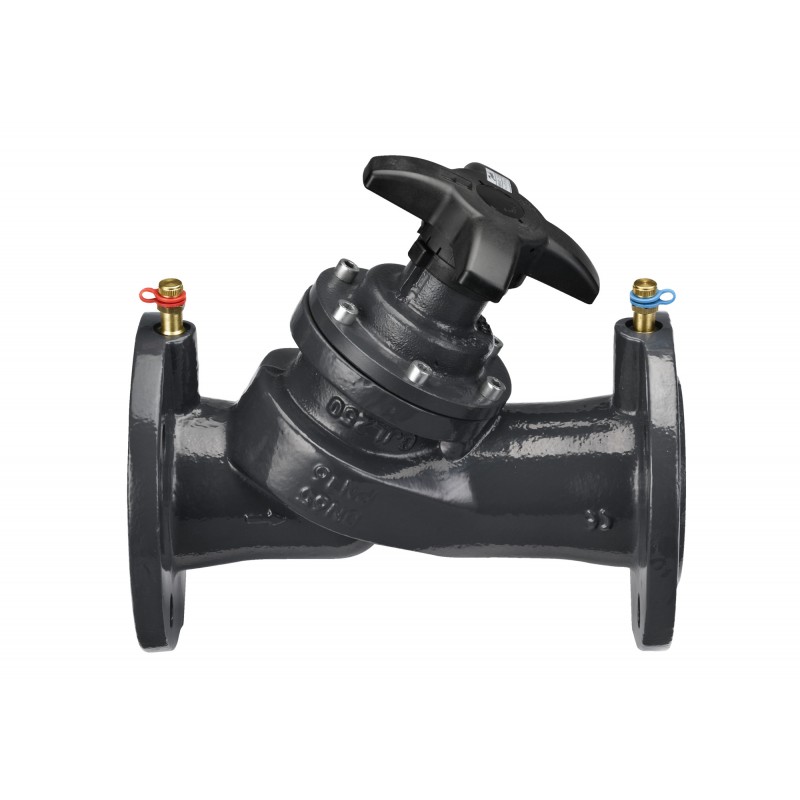

003Z1075 DANFOSS HEATING MSV-F2 DN150 w. measuring nipples (PN25)
003Z1075
DANFOSS HEATING
MSV-F2 DN150 w. measuring nipples (PN25)
MSV-F2, DN 150, PN 25, Flange
Home > DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
Best sellers
▲More info
▲MSV-F2 DN 150 with test plugs PN25, manual balancing valve
Product details
| Gross weight | 55.5 Kilogram |
| Net weight | 55.5 Kilogram |
| Volume | 218.88 Liter |
| EAN | 5702421551523 |
| Type | MSV-F2 |
| Product group | Manual balancing |
| Gross weight | 55.5 Kilogram |
| Net weight | 55.5 Kilogram |
| Volume | 218.88 Liter |
| EAN | 5702421551523 |
| Type | MSV-F2 |
| Product group | Manual balancing |
| China RoHS compliance | Out of scope |
| Connection types | Flange |
| Contains batteries | No |
| Description | MSV-F2 DN 150 with test plugs PN25, manual balancing valve |
| Differential pressure over the valve [kPa] [Max] | 200 KPa |
| Drain function | No |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Kvs values [m³/h] | 400.8 m³/h |
| Media temperature [°C] [Max] | 150 °C |
| Media temperature [°C] [Min] | -10 °C |
| Pressure class | PN 25 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 084def3c-0736-47e7-8951-baf9c3d77dba |
| SCIP dossier product name | MSV-F2 DN65-DN150 |
| Setting scale | Yes |
| Shut-off function | Yes |
| Test plugs | With test plugs |
| Valve body material | Ductile iron (EN-GJS 400-15) |
| Valve size | DN 150 |
| China RoHS compliance | Out of scope |
| Connection types | Flange |
| Contains batteries | No |
| Description | MSV-F2 DN 150 with test plugs PN25, manual balancing valve |
| Differential pressure over the valve [kPa] [Max] | 200 KPa |
| Drain function | No |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Kvs values [m³/h] | 400.8 m³/h |
| Media temperature [°C] [Max] | 150 °C |
| Media temperature [°C] [Min] | -10 °C |
| Pressure class | PN 25 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 084def3c-0736-47e7-8951-baf9c3d77dba |
| SCIP dossier product name | MSV-F2 DN65-DN150 |
| Setting scale | Yes |
| Shut-off function | Yes |
| Test plugs | With test plugs |
| Valve body material | Ductile iron (EN-GJS 400-15) |
| Valve size | DN 150 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
| 003Z1075 003Z1075 EN_003Z1096.pdf | 4 Mbytes |
|
