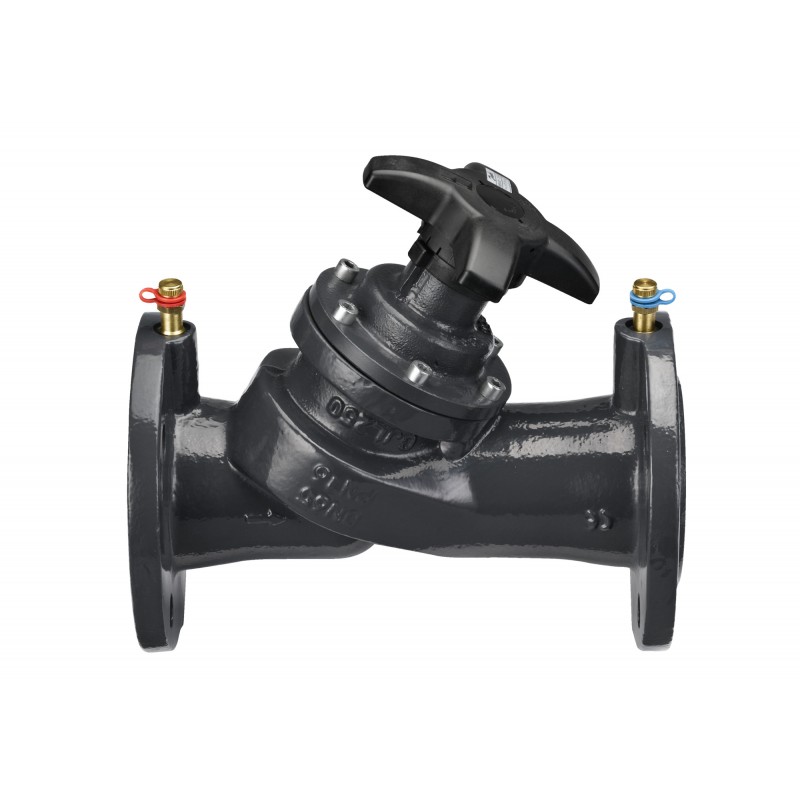

003Z1063 DANFOSS HEATING MSV F2 DN80 PN16 with nipples
Reference: 003Z1063
Manufacturer: DANFOSS HEATING
Description:
MSV F2 DN80 PN16 with nipples
MSV-F2, DN 80, PN 16, Flange
Categories:
- DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
- More Info
- Reviews
LAST VIEWED
MORE INFO
MSV-F2 DN 80 with test plugs PN16, manual balancing valve
Product details
| Gross weight | 20.65 Kilogram |
| Net weight | 18.2 Kilogram |
| Volume | 37.544 Liter |
| EAN | 5702421551400 |
| Type | MSV-F2 |
| Product group | Manual balancing |
| Gross weight | 20.65 Kilogram |
| Net weight | 18.2 Kilogram |
| Volume | 37.544 Liter |
| EAN | 5702421551400 |
| Type | MSV-F2 |
| Product group | Manual balancing |
| China RoHS compliance | Out of scope |
| Connection types | Flange |
| Contains batteries | No |
| Description | MSV-F2 DN 80 with test plugs PN16, manual balancing valve |
| Differential pressure over the valve [kPa] [Max] | 150 KPa |
| Drain function | No |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Kvs values [m³/h] | 122.3 m³/h |
| Media temperature [°C] [Max] | 130 °C |
| Media temperature [°C] [Min] | -10 °C |
| Pressure class | PN 16 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | b53622cd-50a2-4626-a23a-856f12c6983e |
| SCIP dossier product name | MSV-F2 MNF DN15-300 |
| Setting scale | Yes |
| Shut-off function | Yes |
| Test plugs | With test plugs |
| Valve body material | Cast iron (EN-GJL-250) |
| Valve size | DN 80 |
| China RoHS compliance | Out of scope |
| Connection types | Flange |
| Contains batteries | No |
| Description | MSV-F2 DN 80 with test plugs PN16, manual balancing valve |
| Differential pressure over the valve [kPa] [Max] | 150 KPa |
| Drain function | No |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Kvs values [m³/h] | 122.3 m³/h |
| Media temperature [°C] [Max] | 130 °C |
| Media temperature [°C] [Min] | -10 °C |
| Pressure class | PN 16 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | b53622cd-50a2-4626-a23a-856f12c6983e |
| SCIP dossier product name | MSV-F2 MNF DN15-300 |
| Setting scale | Yes |
| Shut-off function | Yes |
| Test plugs | With test plugs |
| Valve body material | Cast iron (EN-GJL-250) |
| Valve size | DN 80 |
