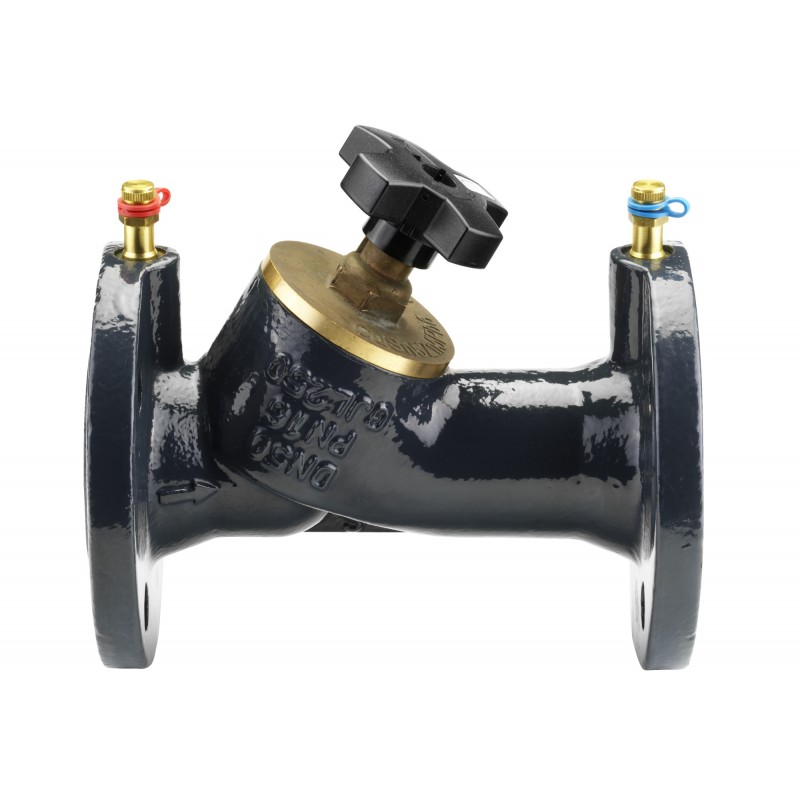

003Z1061 DANFOSS HEATING MSV-F2 DN50 PN16 with nipples
003Z1061
DANFOSS HEATING
MSV-F2 DN50 PN16 with nipples
MSV-F2, DN 50, PN 16, Flange
Home > DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
Best sellers
▲More info
▲MSV-F2 DN 50 with test plugs, PN16, manual balancing valve
Product details
| Gross weight | 9.46 Kilogram |
| Net weight | 8.7 Kilogram |
| Volume | 15.797 Liter |
| EAN | 5702421551387 |
| Type | MSV-F2 |
| Product group | Manual balancing |
| Gross weight | 9.46 Kilogram |
| Net weight | 8.7 Kilogram |
| Volume | 15.797 Liter |
| EAN | 5702421551387 |
| Type | MSV-F2 |
| Product group | Manual balancing |
| China RoHS compliance | Out of scope |
| Connection types | Flange |
| Contains batteries | No |
| Description | MSV-F2 DN 50 with test plugs, PN16, manual balancing valve |
| Differential pressure over the valve [kPa] [Max] | 150 KPa |
| Drain function | No |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Kvs values [m³/h] | 53.8 m³/h |
| Media temperature [°C] [Max] | 130 °C |
| Media temperature [°C] [Min] | -10 °C |
| Pressure class | PN 16 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | b53622cd-50a2-4626-a23a-856f12c6983e |
| SCIP dossier product name | MSV-F2 MNF DN15-300 |
| Setting scale | Yes |
| Shut-off function | Yes |
| Test plugs | With test plugs |
| Valve body material | Cast iron (EN-GJL-250) |
| Valve size | DN 50 |
| China RoHS compliance | Out of scope |
| Connection types | Flange |
| Contains batteries | No |
| Description | MSV-F2 DN 50 with test plugs, PN16, manual balancing valve |
| Differential pressure over the valve [kPa] [Max] | 150 KPa |
| Drain function | No |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Kvs values [m³/h] | 53.8 m³/h |
| Media temperature [°C] [Max] | 130 °C |
| Media temperature [°C] [Min] | -10 °C |
| Pressure class | PN 16 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | b53622cd-50a2-4626-a23a-856f12c6983e |
| SCIP dossier product name | MSV-F2 MNF DN15-300 |
| Setting scale | Yes |
| Shut-off function | Yes |
| Test plugs | With test plugs |
| Valve body material | Cast iron (EN-GJL-250) |
| Valve size | DN 50 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
| 003Z1061 003Z1061 ES_003Z0691.pdf | 3 Mbytes |
|
