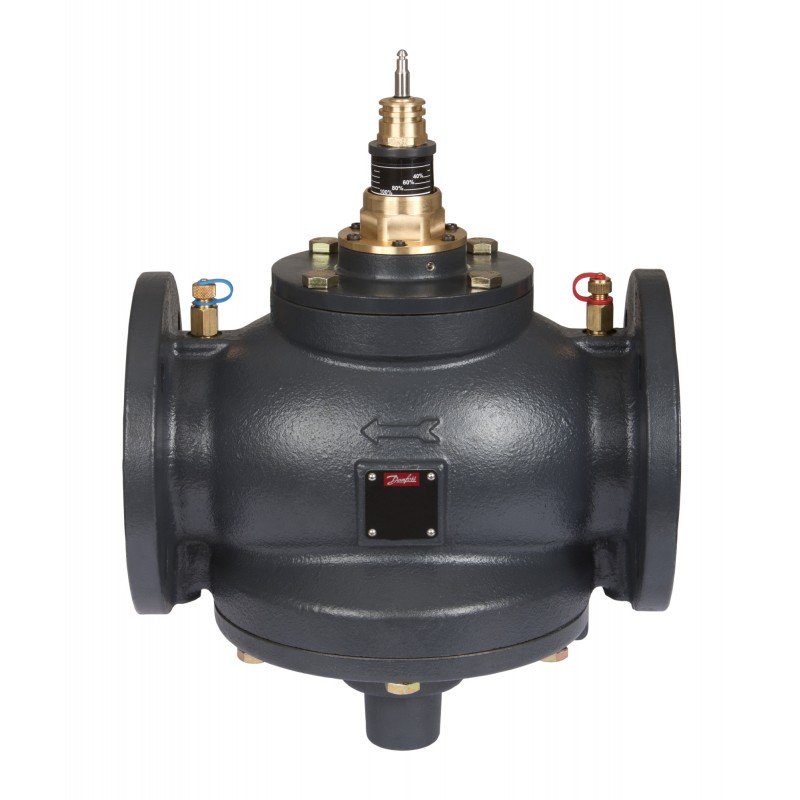

003Z0785 DANFOSS HEATING AB-QM ANSI 4" CLASS 125
003Z0785
DANFOSS HEATING
AB-QM ANSI 4" CLASS 125
AB-QM ANSI, 4", With test plugs, ANSI Flange
Home > DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
Best sellers
▲More info
▲AB-QM 4", pressure independent balancing and control valve
Product details
| Gross weight | 61 Kilogram |
| Net weight | 57 Kilogram |
| Volume | 90.72 Liter |
| EAN | 5710104034225 |
| Type | AB-QM ANSI |
| Product group | Pressure independent balancing and control valves |
| Gross weight | 61 Kilogram |
| Net weight | 57 Kilogram |
| Volume | 90.72 Liter |
| EAN | 5710104034225 |
| Type | AB-QM ANSI |
| Product group | Pressure independent balancing and control valves |
| Actuator connection | M30 x 1.5 |
| Connection types | ANSI Flange |
| Contains batteries | No |
| Description | AB-QM 4", pressure independent balancing and control valve |
| Differential pressure range [psi] [Max] | 60 psi |
| Differential pressure range [psi] [Min] | 4 psi |
| Flow [gpm] [Max] | 165 gal/min |
| Media temperature [°F] [Max] | 250 °F |
| Media temperature [°F] [Min] | 15 °F |
| Static pressure [psi] [Max] | 300 psi |
| Stroke [mm] | 15 mm |
| Test plugs | With test plugs |
| Valve body material | Grey cast iron (A48 No. 35A) |
| Valve size | 4" |
| Actuator connection | M30 x 1.5 |
| Connection types | ANSI Flange |
| Contains batteries | No |
| Description | AB-QM 4", pressure independent balancing and control valve |
| Differential pressure range [psi] [Max] | 60 psi |
| Differential pressure range [psi] [Min] | 4 psi |
| Flow [gpm] [Max] | 165 gal/min |
| Media temperature [°F] [Max] | 250 °F |
| Media temperature [°F] [Min] | 15 °F |
| Static pressure [psi] [Max] | 300 psi |
| Stroke [mm] | 15 mm |
| Test plugs | With test plugs |
| Valve body material | Grey cast iron (A48 No. 35A) |
| Valve size | 4" |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
| 003Z0785 EN_003Z1334.pdf | 3 Mbytes |
|
