Images are for illustrative purposes only. Please refer to data sheet for details.

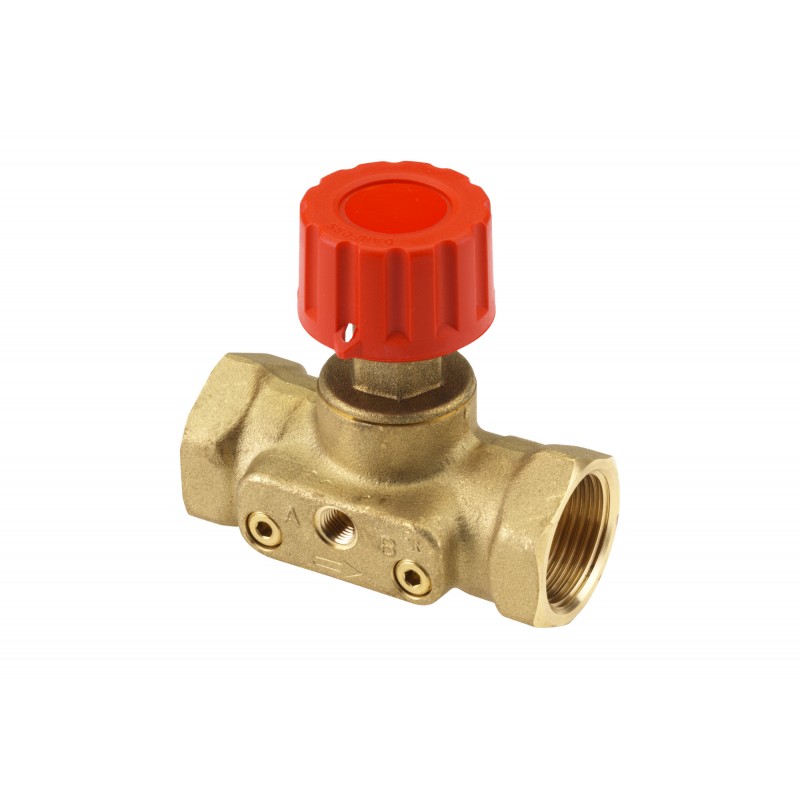

003L7694 DANFOSS HEATING ASV-M 32 INTERNAL TEREAD
Reference: 003L7694
Manufacturer: DANFOSS HEATING
Description:
ASV-M 32 INTERNAL TEREAD
ASV-M, DN 32, Internal thread
Categories:
- DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
- More Info
- Reviews
MORE INFO
ASV-M DN 32, internal thread, shut-off valve
Product details
| Gross weight | 1.324 Kilogram |
| Net weight | 1.075 Kilogram |
| Volume | 8.172 Liter |
| EAN | 5702421528099 |
| Type | ASV-M |
| Product group | Automatic balancing |
| Gross weight | 1.324 Kilogram |
| Net weight | 1.075 Kilogram |
| Volume | 8.172 Liter |
| EAN | 5702421528099 |
| Type | ASV-M |
| Product group | Automatic balancing |
| China RoHS compliance | Out of scope |
| Connection types | Internal thread |
| Contains batteries | No |
| Description | ASV-M DN 32, internal thread, shut-off valve |
| Differential pressure over the valve [kPa] [Max] | 150 KPa |
| Drain function | No |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow limitation | Yes |
| Kvs values [m³/h] | 6.3 m³/h |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | -20 °C |
| Mounting position | Supply pipe |
| Pressure class | PN 16 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | ef09b1e9-8d66-4f96-a6be-24249704d90c |
| SCIP dossier product name | ASV-M 32 INTERNAL TEREAD |
| Setting scale | No |
| Shut-off function | Yes |
| Valve body material | Brass |
| Valve size | DN 32 |
| China RoHS compliance | Out of scope |
| Connection types | Internal thread |
| Contains batteries | No |
| Description | ASV-M DN 32, internal thread, shut-off valve |
| Differential pressure over the valve [kPa] [Max] | 150 KPa |
| Drain function | No |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow limitation | Yes |
| Kvs values [m³/h] | 6.3 m³/h |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | -20 °C |
| Mounting position | Supply pipe |
| Pressure class | PN 16 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | ef09b1e9-8d66-4f96-a6be-24249704d90c |
| SCIP dossier product name | ASV-M 32 INTERNAL TEREAD |
| Setting scale | No |
| Shut-off function | Yes |
| Valve body material | Brass |
| Valve size | DN 32 |
DATASHEET - PDF
Title
Size
Type
11 Mbytes
