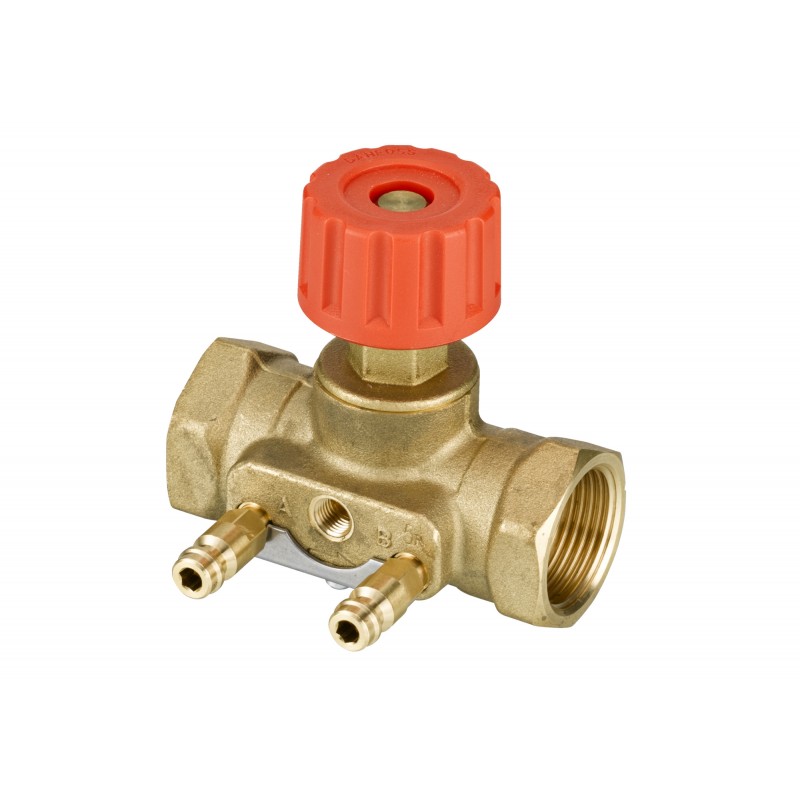

003L7682 DANFOSS HEATING ASV-M DN 20 INT.THR.
003L7682
DANFOSS HEATING
ASV-M DN 20 INT.THR.
ASV-M, DN 20, Internal thread
Home > DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
Best sellers
▲More info
▲ASV-M DN 20, internal thread, shut-off valve
Product details
| Gross weight | 0.49 Kg |
| Net weight | 0.46 Kg |
| Volume | 2.946 Liter |
| EAN | 5702421528020 |
| Gross weight | 0.49 Kg |
| Net weight | 0.46 Kg |
| Volume | 2.946 Liter |
| EAN | 5702421528020 |
| Connection types | Internal thread |
| Description | ASV-M DN 20, internal thread, shut-off valve |
| Differential pressure over the valve [kPa] [Max] | 150 KPa |
| Drain function | No |
| EU RoHS compliance | Yes with exemptions |
| Flow limitation | Yes |
| In scope of WEEE and contain batteries | No |
| Kvs values [m³/h] | 2.5 m³/h |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | -20 °C |
| Mounting position | Supply pipe |
| Pressure class | PN 16 |
| Product group | Automatic balancing |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 4567dfbb-3fcc-4ed0-933d-1de3340929b3 |
| SCIP dossier product name | "ASV-I/M" |
| Setting scale | No |
| Shut-off function | Yes |
| Type | ASV-M |
| Valve body material | Brass |
| Valve size | DN 20 |
| Connection types | Internal thread |
| Description | ASV-M DN 20, internal thread, shut-off valve |
| Differential pressure over the valve [kPa] [Max] | 150 KPa |
| Drain function | No |
| EU RoHS compliance | Yes with exemptions |
| Flow limitation | Yes |
| In scope of WEEE and contain batteries | No |
| Kvs values [m³/h] | 2.5 m³/h |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | -20 °C |
| Mounting position | Supply pipe |
| Pressure class | PN 16 |
| Product group | Automatic balancing |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 4567dfbb-3fcc-4ed0-933d-1de3340929b3 |
| SCIP dossier product name | "ASV-I/M" |
| Setting scale | No |
| Shut-off function | Yes |
| Type | ASV-M |
| Valve body material | Brass |
| Valve size | DN 20 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
| 003L7682 003L7682 EN_003Z7837.pdf | 4 Mbytes |
|
