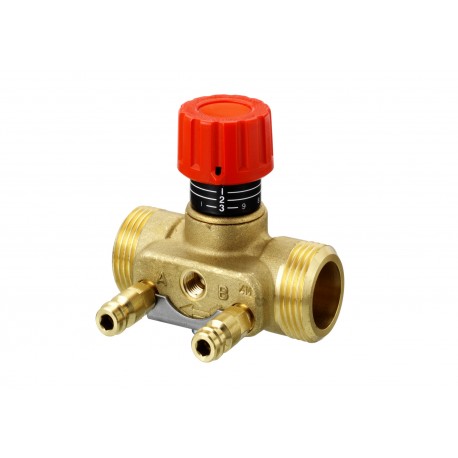

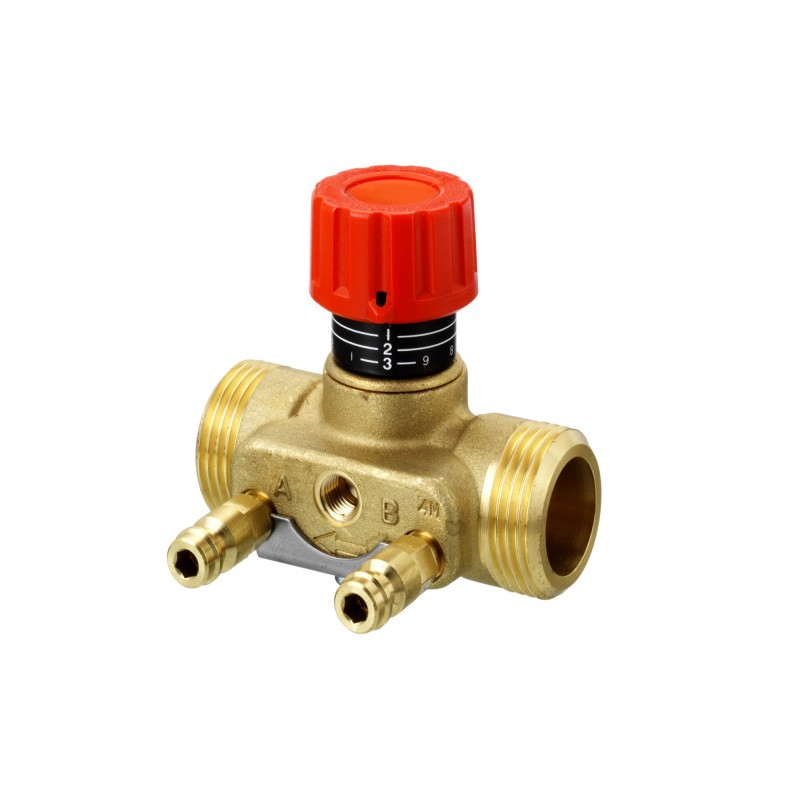

003L7646 DANFOSS HEATING ASV-I DN 15 EXTERNAL THREAD
Reference: 003L7646
Manufacturer: DANFOSS HEATING
Description:
ASV-I DN 15 EXTERNAL THREAD
ASV-I, DN 15, External Thread
Categories:
- DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
- More Info
- Reviews
MORE INFO
ASV-I DN 15, external thread, adjustment valve
Product details
| Gross weight | 0.348 Kilogram |
| Net weight | 0.343 Kilogram |
| Volume | 1.8 Liter |
| EAN | 5702421527962 |
| Gross weight | 0.348 Kilogram |
| Net weight | 0.343 Kilogram |
| Volume | 1.8 Liter |
| EAN | 5702421527962 |
| China RoHS compliance | Out of scope |
| Connection types | External Thread |
| Description | ASV-I DN 15, external thread, adjustment valve |
| Differential pressure over the valve [kPa] [Max] | 150 KPa |
| Drain function | No |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow limitation | Yes |
| In scope of WEEE and contain batteries | No |
| Kvs values [m³/h] | 1.6 m³/h |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | -20 °C |
| Mounting position | Supply pipe |
| Pressure class | PN 16 |
| Product group | Automatic balancing |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 4567dfbb-3fcc-4ed0-933d-1de3340929b3 |
| SCIP dossier product name | "ASV-I/M" |
| Setting scale | Yes |
| Shut-off function | Yes |
| Type | ASV-I |
| UK RoHS compliance | Out of scope |
| Valve body material | Brass |
| Valve size | DN 15 |
| China RoHS compliance | Out of scope |
| Connection types | External Thread |
| Description | ASV-I DN 15, external thread, adjustment valve |
| Differential pressure over the valve [kPa] [Max] | 150 KPa |
| Drain function | No |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow limitation | Yes |
| In scope of WEEE and contain batteries | No |
| Kvs values [m³/h] | 1.6 m³/h |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | -20 °C |
| Mounting position | Supply pipe |
| Pressure class | PN 16 |
| Product group | Automatic balancing |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 4567dfbb-3fcc-4ed0-933d-1de3340929b3 |
| SCIP dossier product name | "ASV-I/M" |
| Setting scale | Yes |
| Shut-off function | Yes |
| Type | ASV-I |
| UK RoHS compliance | Out of scope |
| Valve body material | Brass |
| Valve size | DN 15 |
