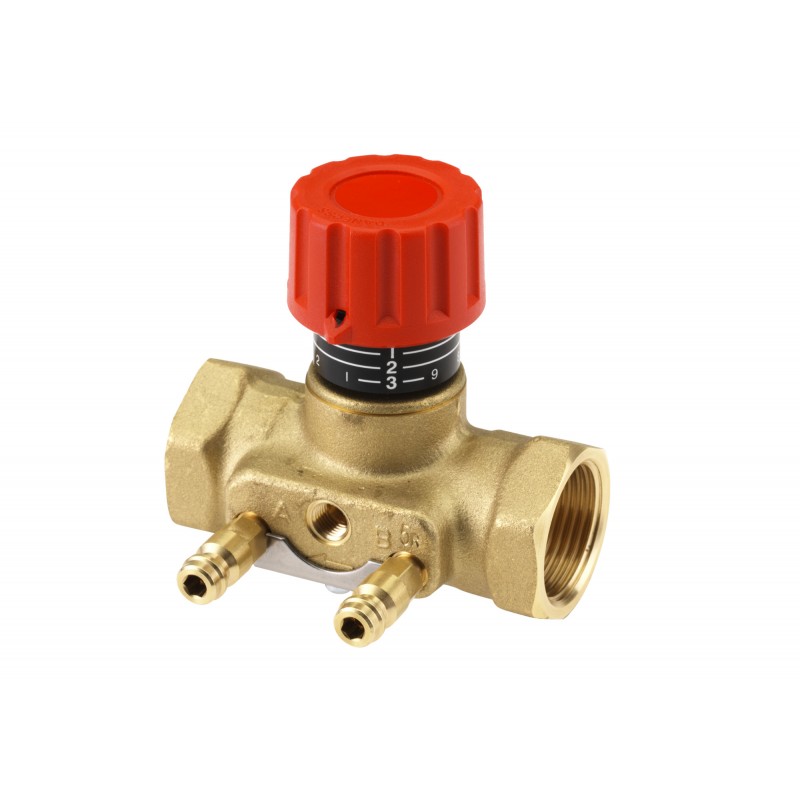

003L7645 DANFOSS HEATING ASV-I DN 40 INT.THR.
003L7645
DANFOSS HEATING
ASV-I DN 40 INT.THR.
ASV-I, DN 40, Internal thread
Home > DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
Best sellers
▲More info
▲ASV-I DN 40, internal thread, adjustment valve
Product details
| Gross weight | 1.489 Kilogram |
| Net weight | 1.489 Kilogram |
| Volume | 8.208 Liter |
| EAN | 5702421527955 |
| Type | ASV-I |
| Product group | Automatic balancing |
| Gross weight | 1.489 Kilogram |
| Net weight | 1.489 Kilogram |
| Volume | 8.208 Liter |
| EAN | 5702421527955 |
| Type | ASV-I |
| Product group | Automatic balancing |
| China RoHS compliance | Out of scope |
| Connection types | Internal thread |
| Contains batteries | No |
| Description | ASV-I DN 40, internal thread, adjustment valve |
| Differential pressure over the valve [kPa] [Max] | 150 KPa |
| Drain function | No |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow limitation | Yes |
| Kvs values [m³/h] | 10 m³/h |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | -20 °C |
| Mounting position | Supply pipe |
| Pressure class | PN 16 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 4567dfbb-3fcc-4ed0-933d-1de3340929b3 |
| SCIP dossier product name | "ASV-I/M" |
| Setting scale | Yes |
| Shut-off function | Yes |
| Valve body material | Brass |
| Valve size | DN 40 |
| China RoHS compliance | Out of scope |
| Connection types | Internal thread |
| Contains batteries | No |
| Description | ASV-I DN 40, internal thread, adjustment valve |
| Differential pressure over the valve [kPa] [Max] | 150 KPa |
| Drain function | No |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow limitation | Yes |
| Kvs values [m³/h] | 10 m³/h |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | -20 °C |
| Mounting position | Supply pipe |
| Pressure class | PN 16 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 4567dfbb-3fcc-4ed0-933d-1de3340929b3 |
| SCIP dossier product name | "ASV-I/M" |
| Setting scale | Yes |
| Shut-off function | Yes |
| Valve body material | Brass |
| Valve size | DN 40 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
| 003L7645 003L7645 EN_003L8157.pdf | 495 Kbytes |
|
