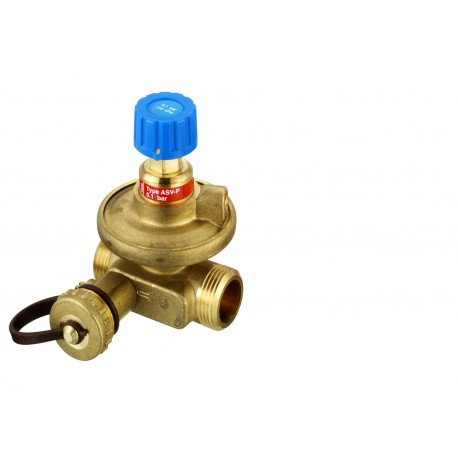

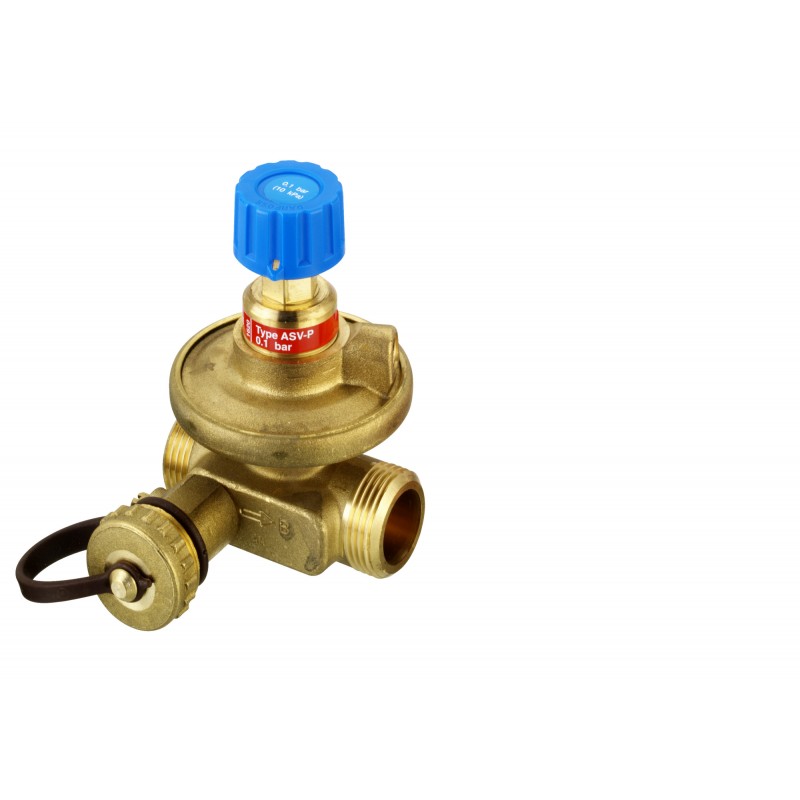

003L7629 DANFOSS HEATING ASV-P DN 32 EXTERNAL THREAD
003L7629
DANFOSS HEATING
ASV-P DN 32 EXTERNAL THREAD
ASV-P, DN 32, External Thread
Home > DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
Best sellers
▲More info
▲ASV-P DN 32, external thread, automatic balancing valve
Product details
| Gross weight | 3.304 Kilogram |
| Net weight | 3.304 Kilogram |
| Volume | 8.316 Liter |
| EAN | 5702421527894 |
| Type | ASV-P |
| Product group | Automatic balancing |
| Gross weight | 3.304 Kilogram |
| Net weight | 3.304 Kilogram |
| Volume | 8.316 Liter |
| EAN | 5702421527894 |
| Type | ASV-P |
| Product group | Automatic balancing |
| China RoHS compliance | Out of scope |
| Connection types | External Thread |
| Contains batteries | No |
| Description | ASV-P DN 32, external thread, automatic balancing valve |
| Differential pressure over the valve [kPa] [Max] | 150 KPa |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Factory setting [kPa] | 10 KPa |
| Flow limitation | No |
| Kvs values [m³/h] | 6.3 m³/h |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | -20 °C |
| Mounting position | Return pipe |
| Pressure class | PN 16 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 214f4c34-0448-42c5-b938-a399a391c031 |
| SCIP dossier product name | "ASV-P DN15-40" |
| Setting scale | No |
| Shut-off function | Yes |
| Valve body material | Brass |
| Valve size | DN 32 |
| China RoHS compliance | Out of scope |
| Connection types | External Thread |
| Contains batteries | No |
| Description | ASV-P DN 32, external thread, automatic balancing valve |
| Differential pressure over the valve [kPa] [Max] | 150 KPa |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Factory setting [kPa] | 10 KPa |
| Flow limitation | No |
| Kvs values [m³/h] | 6.3 m³/h |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | -20 °C |
| Mounting position | Return pipe |
| Pressure class | PN 16 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 214f4c34-0448-42c5-b938-a399a391c031 |
| SCIP dossier product name | "ASV-P DN15-40" |
| Setting scale | No |
| Shut-off function | Yes |
| Valve body material | Brass |
| Valve size | DN 32 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
| 003L7629 003L7629 ES_003L7622.pdf | 604 Kbytes |
|
