003L7624 DANFOSS HEATING ASV-P DN 32 INTERNAL THREAD

Name: 003L7624 DANFOSS HEATING ASV-P DN 32 INTERNAL THREAD
Brand: DANFOSS HEATING
SKU: DAS003L7624
Price: 283.33 USD
Availability: OutOfStock

Reference: 003L7624

Manufacturer: DANFOSS HEATING

Description:

ASV-P DN 32 INTERNAL THREAD

ASV-P, DN 32, Internal thread

Categories:

DANFOSS HEATING

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING

More Info
PDF
Reviews

Guarantee, repair and return.

Unit Price: 253,10 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 10 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

MORE INFO

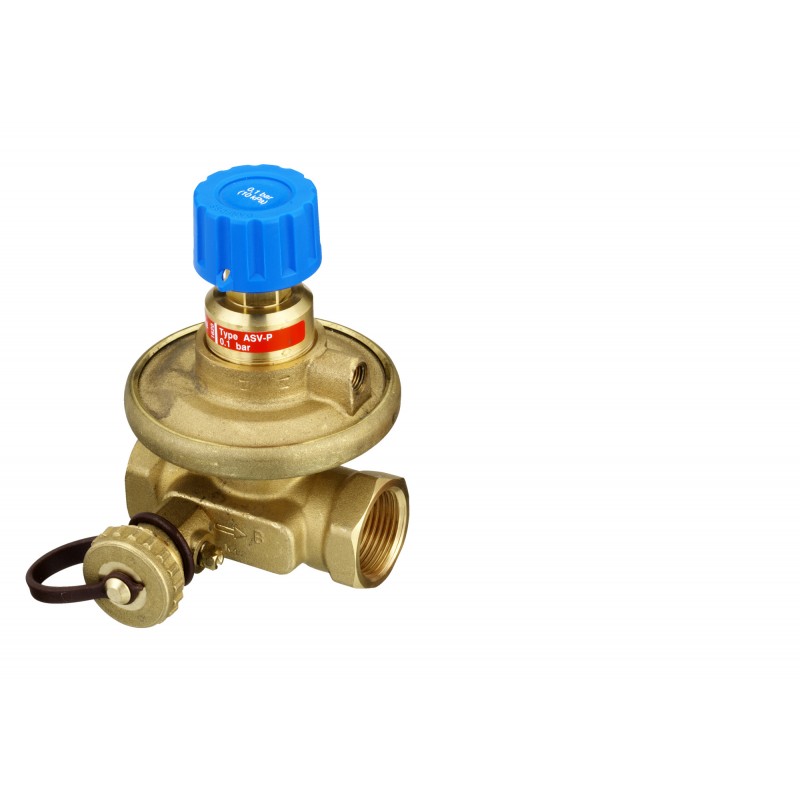

ASV-P DN 32, internal thread, automatic balancing valve

Product details

Gross weight	3.308 Kilogram
Net weight	3.308 Kilogram
Volume	8.459 Liter

EAN	5702421527849
Type	ASV-P
Product group	Automatic balancing

Gross weight	3.308 Kilogram
Net weight	3.308 Kilogram
Volume	8.459 Liter
EAN	5702421527849
Type	ASV-P
Product group	Automatic balancing

China RoHS compliance	Out of scope
Connection types	Internal thread
Contains batteries	No
Description	ASV-P DN 32, internal thread, automatic balancing valve
Differential pressure over the valve [kPa] [Max]	150 KPa
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(c)
Factory setting [kPa]	10 KPa
Flow limitation	No
Kvs values [m³/h]	6.3 m³/h
Media temperature [°C] [Max]	120 °C

Media temperature [°C] [Min]	-20 °C
Mounting position	Return pipe
Pressure class	PN 16
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
SCIP dossier no.	214f4c34-0448-42c5-b938-a399a391c031
SCIP dossier product name	"ASV-P DN15-40"
Setting scale	No
Shut-off function	Yes
Valve body material	Brass
Valve size	DN 32

China RoHS compliance	Out of scope
Connection types	Internal thread
Contains batteries	No
Description	ASV-P DN 32, internal thread, automatic balancing valve
Differential pressure over the valve [kPa] [Max]	150 KPa
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(c)
Factory setting [kPa]	10 KPa
Flow limitation	No
Kvs values [m³/h]	6.3 m³/h
Media temperature [°C] [Max]	120 °C
Media temperature [°C] [Min]	-20 °C
Mounting position	Return pipe
Pressure class	PN 16
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
SCIP dossier no.	214f4c34-0448-42c5-b938-a399a391c031
SCIP dossier product name	"ASV-P DN15-40"
Setting scale	No
Shut-off function	Yes
Valve body material	Brass
Valve size	DN 32
