DANFOSS HEATING003L7020 DANFOSS HEATING AVTQ PN16 20/3,2 35C thread return

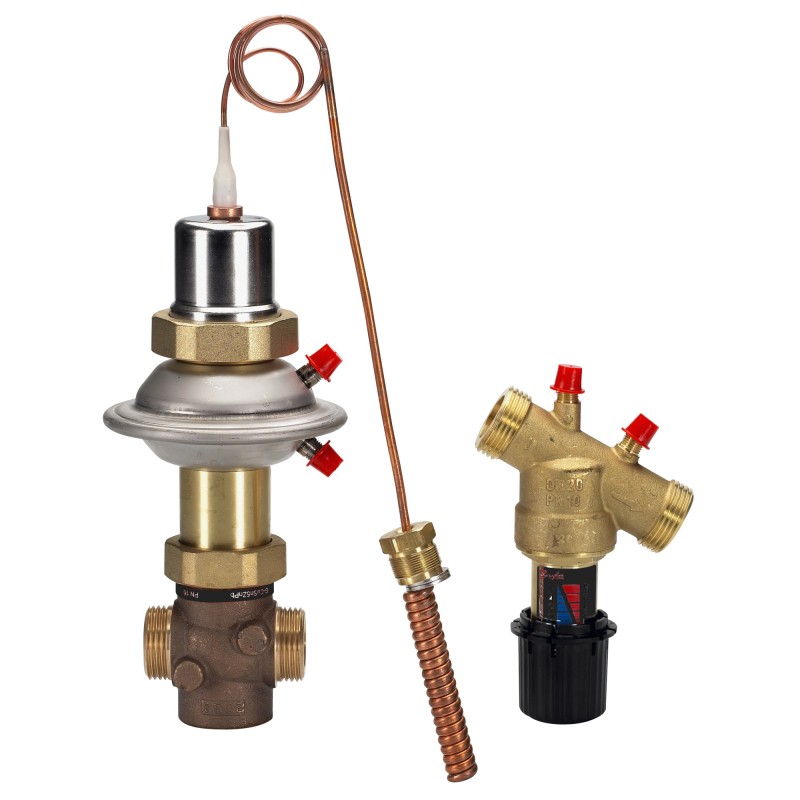

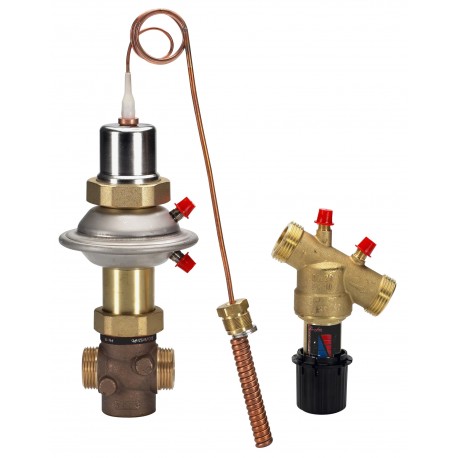

DANFOSS HEATING 003L7020 003L7020 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

003L7020 DANFOSS HEATING AVTQ PN16 20/3,2 35C thread return

Reference: 003L7020

Manufacturer: DANFOSS HEATING

Description:

AVTQ PN16 20/3,2 35C thread return
AVTQ, PN 16, DN 20, 3.2 m³/h, 45 °C - 60 °C, 1 m, External Thread

Categories:

  • DANFOSS HEATING

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 1.048,98 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

AVTQ PN16 20/3,2 35C thread return

Product details

Gross weight3.572 Kilogram
Net weight3.572 Kilogram
Volume6.935 Liter
EAN5702421500828
TypeAVTQ
Product groupTemperature controllers
Gross weight3.572 Kilogram
Net weight3.572 Kilogram
Volume6.935 Liter
EAN5702421500828
TypeAVTQ
Product groupTemperature controllers

Ambient temperature [°C] [max]70 °C
Ambient temperature [°C] [min]0 °C
Capillary tube length [m]1 m
Cavitation factor0.6
Cone /seat sealing materialEPDM / Stainless steel 1.4571
Connection sizeG 1 A
Connection standardISO 228/1
Connection typesExternal Thread
Contains batteriesNo
Control diaphragm materialEPDM
Control ratio100:1
DescriptionAVTQ PN16 20/3,2 35C thread return
Diameter [mm]20 mm
Differential pressure range [bar] [Max]4 bar
EU RoHS complianceYes with exemptions
Flow characteristicSplit
Flow controlNo
FunctionFlow compensated temp. controller
Function VSP - PNo
Function VSP - QNo
Function VSP - TNo
Impulse tube materialCopper mat. No 2.0090
Kvs values [m³/h]3.2 m³/h
Leakage rate [% Kvs]< 0.05
Media pH [Max]10
Media pH [Min]7
Media temperature [°C] [Max]100 °C
Media temperature [°C] [Min]2 °C
Media temperature at sensor [°C] [Max]130 °C
Medium alternativeGlycolic water up to 30%
Medium alternative 2 DHWDomestic hot water (clorine (cl) content max. 200 PPM)
Number of ports2
Permissible mediaDistrict heating/cooling circulation water
Pressure classPN 16
Pressure nominal [bar]16 bar
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Rection time close [sec]4 "
Rection time open [sec]4 "
Return limiter functionNo
SCIP dossier no.bdce48b4-471c-4d45-8b58-0ffad9a3301c
SCIP dossier product nameAVTQ PN16 20/3.2 35C THREAD RETURN
Sensor connectionM22x1 / R3/4 ext thread acc. DIN 2999
Temperature controlYes
Temperature sensor diameter [mm]15 mm
Temperature sensor length [mm]90 mm
Temperature sensor materialCopper mat. No 2.0090
Temperature setting range [°C] [Max]60 °C
Temperature setting range [°C] [Min]45 °C
Transport temperature [°C] [Max]50 °C
Transport temperature [°C] [Min]-20 °C
Valve body materialRg5 W. no 2.1096.01
Valve cone materialEPDM rubber
Valve seat materialCrNi steel W. No 1.4404
Valve sizeDN 20
Ambient temperature [°C] [max]70 °C
Ambient temperature [°C] [min]0 °C
Capillary tube length [m]1 m
Cavitation factor0.6
Cone /seat sealing materialEPDM / Stainless steel 1.4571
Connection sizeG 1 A
Connection standardISO 228/1
Connection typesExternal Thread
Contains batteriesNo
Control diaphragm materialEPDM
Control ratio100:1
DescriptionAVTQ PN16 20/3,2 35C thread return
Diameter [mm]20 mm
Differential pressure range [bar] [Max]4 bar
EU RoHS complianceYes with exemptions
Flow characteristicSplit
Flow controlNo
FunctionFlow compensated temp. controller
Function VSP - PNo
Function VSP - QNo
Function VSP - TNo
Impulse tube materialCopper mat. No 2.0090
Kvs values [m³/h]3.2 m³/h
Leakage rate [% Kvs]< 0.05
Media pH [Max]10
Media pH [Min]7
Media temperature [°C] [Max]100 °C
Media temperature [°C] [Min]2 °C
Media temperature at sensor [°C] [Max]130 °C
Medium alternativeGlycolic water up to 30%
Medium alternative 2 DHWDomestic hot water (clorine (cl) content max. 200 PPM)
Number of ports2
Permissible mediaDistrict heating/cooling circulation water
Pressure classPN 16
Pressure nominal [bar]16 bar
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Rection time close [sec]4 "
Rection time open [sec]4 "
Return limiter functionNo
SCIP dossier no.bdce48b4-471c-4d45-8b58-0ffad9a3301c
SCIP dossier product nameAVTQ PN16 20/3.2 35C THREAD RETURN
Sensor connectionM22x1 / R3/4 ext thread acc. DIN 2999
Temperature controlYes
Temperature sensor diameter [mm]15 mm
Temperature sensor length [mm]90 mm
Temperature sensor materialCopper mat. No 2.0090
Temperature setting range [°C] [Max]60 °C
Temperature setting range [°C] [Min]45 °C
Transport temperature [°C] [Max]50 °C
Transport temperature [°C] [Min]-20 °C
Valve body materialRg5 W. no 2.1096.01
Valve cone materialEPDM rubber
Valve seat materialCrNi steel W. No 1.4404
Valve sizeDN 20
