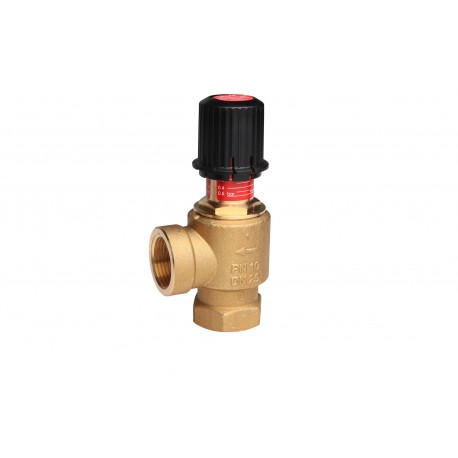

003L6012 DANFOSS HEATING AVDO 25 V (black spring)
003L6012
DANFOSS HEATING
AVDO 25 V (black spring)
Automatic Bypass Control, AVDO, DN 25, Angle, Internal thread, Internal thread
Home > DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
Best sellers
▲More info
▲Self-acting constant flow valve
Product details
| Gross weight | 0.874 Kilogram |
| Net weight | 0.839 Kilogram |
| Volume | 1.124 Liter |
| EAN | 5702420017105 |
| Type | AVDO |
| Product group | Automatic Bypass Control |
| Gross weight | 0.874 Kilogram |
| Net weight | 0.839 Kilogram |
| Volume | 1.124 Liter |
| EAN | 5702420017105 |
| Type | AVDO |
| Product group | Automatic Bypass Control |
| CE evaluated | Out of scope |
| Connection size in | Rp 1 |
| Connection size out | Rp 1 |
| Connection types | Threaded |
| Connections | 1" |
| Contains batteries | No |
| Description | Self-acting constant flow valve |
| Design | Angle |
| Differential pressure range [bar] [Max] | 0.5 bar |
| Flow temperature [°C] [Max] | 120 °C |
| Inlet connection type | Internal thread |
| Outlet connection type | Internal thread |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 7b37c0d6-8f7d-4b5c-b1b0-5f93cc0ad594 |
| SCIP dossier product name | AVDO COMMERCIAL 25 |
| Setting [bar] [Max] | 0.5 bar |
| Setting [bar] [Min] | 0.05 bar |
| UL evaluated | Out of scope |
| Valve size | DN 25 |
| Working pressure [bar] [Max] | 10 bar |
| CE evaluated | Out of scope |
| Connection size in | Rp 1 |
| Connection size out | Rp 1 |
| Connection types | Threaded |
| Connections | 1" |
| Contains batteries | No |
| Description | Self-acting constant flow valve |
| Design | Angle |
| Differential pressure range [bar] [Max] | 0.5 bar |
| Flow temperature [°C] [Max] | 120 °C |
| Inlet connection type | Internal thread |
| Outlet connection type | Internal thread |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 7b37c0d6-8f7d-4b5c-b1b0-5f93cc0ad594 |
| SCIP dossier product name | AVDO COMMERCIAL 25 |
| Setting [bar] [Max] | 0.5 bar |
| Setting [bar] [Min] | 0.05 bar |
| UL evaluated | Out of scope |
| Valve size | DN 25 |
| Working pressure [bar] [Max] | 10 bar |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
| 003L6012 003L6012 EN_003L6020.pdf | 736 Kbytes |
|
