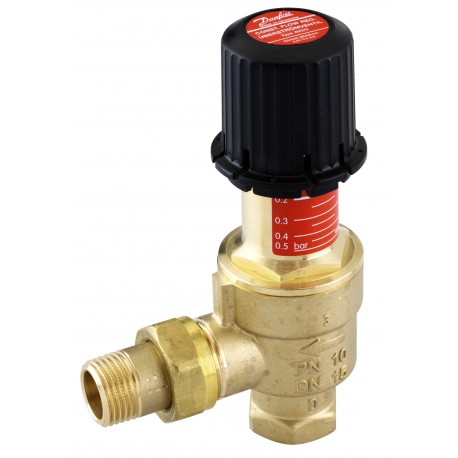

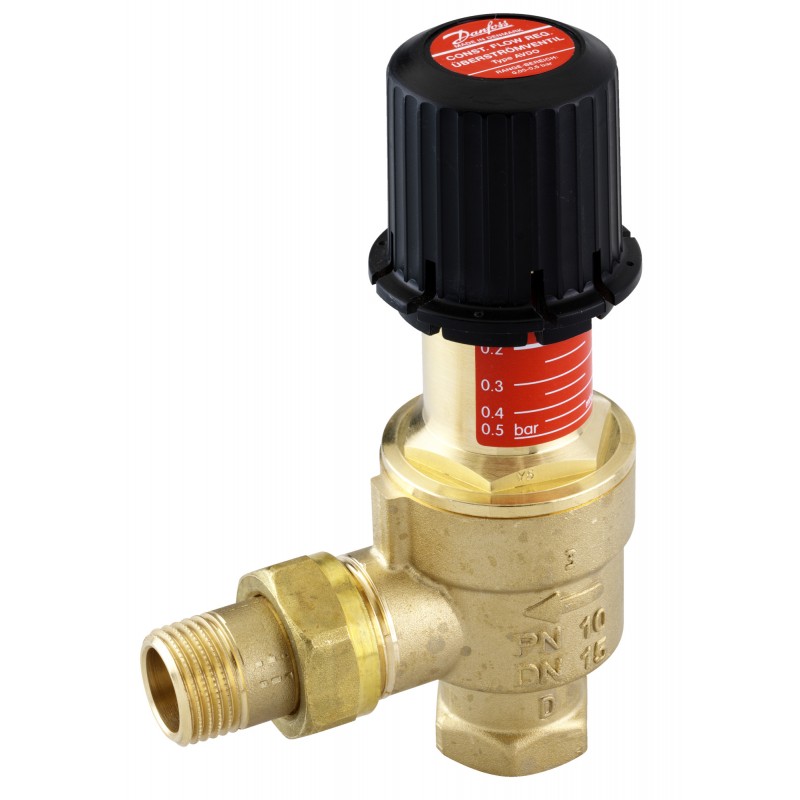

003L6003 DANFOSS HEATING AVDO15 CONSTANT FLOW CONTR.
Reference: 003L6003
Manufacturer: DANFOSS HEATING
Description:
AVDO15 CONSTANT FLOW CONTR.
Automatic Bypass Control, AVDO, DN 15, Angle, Internal thread, External thread
Categories:
- DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
- More Info
- Reviews
MORE INFO
Self-acting constant flow valve
Product details
| Gross weight | 0.706 Kilogram |
| Net weight | 0.706 Kilogram |
| Volume | 1.101 Liter |
| EAN | 5702420017082 |
| Type | AVDO |
| Product group | Automatic Bypass Control |
| Gross weight | 0.706 Kilogram |
| Net weight | 0.706 Kilogram |
| Volume | 1.101 Liter |
| EAN | 5702420017082 |
| Type | AVDO |
| Product group | Automatic Bypass Control |
| CE evaluated | Out of scope |
| Connection size in | Rp 1/2 |
| Connection size out | R 1/2 |
| Connection types | Threaded |
| Connections | 1/2" |
| Contains batteries | No |
| Description | Self-acting constant flow valve |
| Design | Angle |
| Differential pressure range [bar] [Max] | 0.5 bar |
| Flow temperature [°C] [Max] | 120 °C |
| Inlet connection type | Internal thread |
| Outlet connection type | External thread |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 5d85a5b4-12ae-4974-b468-8f08d6136f16 |
| SCIP dossier product name | AVDO COMMERCIAL 15 |
| Setting [bar] [Max] | 0.5 bar |
| Setting [bar] [Min] | 0.05 bar |
| UL evaluated | Out of scope |
| Valve size | DN 15 |
| Working pressure [bar] [Max] | 10 bar |
| CE evaluated | Out of scope |
| Connection size in | Rp 1/2 |
| Connection size out | R 1/2 |
| Connection types | Threaded |
| Connections | 1/2" |
| Contains batteries | No |
| Description | Self-acting constant flow valve |
| Design | Angle |
| Differential pressure range [bar] [Max] | 0.5 bar |
| Flow temperature [°C] [Max] | 120 °C |
| Inlet connection type | Internal thread |
| Outlet connection type | External thread |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 5d85a5b4-12ae-4974-b468-8f08d6136f16 |
| SCIP dossier product name | AVDO COMMERCIAL 15 |
| Setting [bar] [Max] | 0.5 bar |
| Setting [bar] [Min] | 0.05 bar |
| UL evaluated | Out of scope |
| Valve size | DN 15 |
| Working pressure [bar] [Max] | 10 bar |
