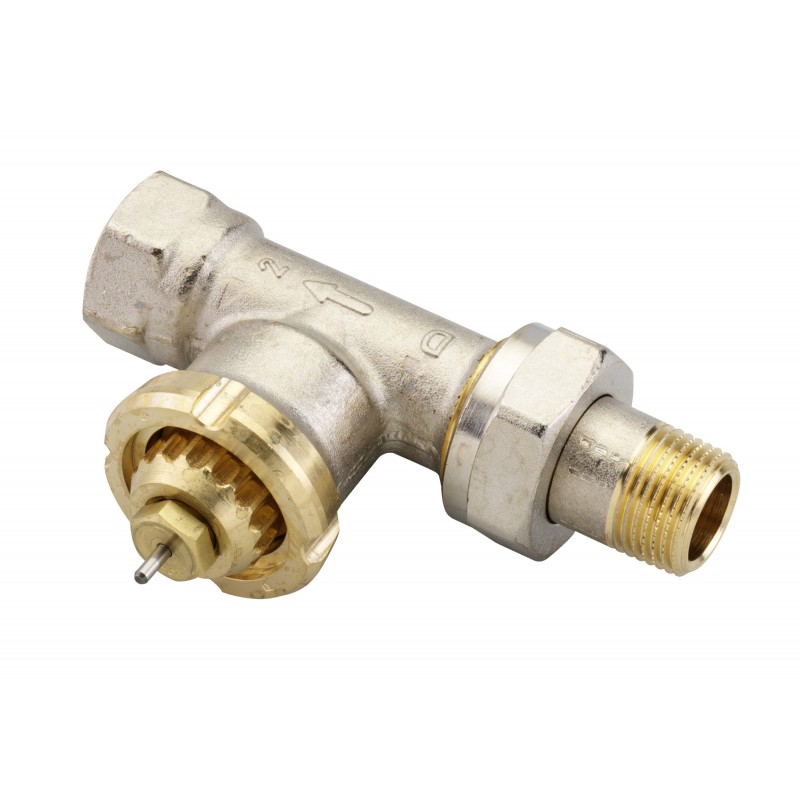

003L1010 DANFOSS HEATING FJVR VALVE DN10 STRAIGHT
Reference: 003L1010
Manufacturer: DANFOSS HEATING
Description:
FJVR VALVE DN10 STRAIGHT
Return temperature limiters, FJVR valves, DN 10, Straight
Categories:
- DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
- More Info
- Reviews
MORE INFO
Return temperature limiter valve, type FJVR, should be combined with FJVR sensor
Product details
| Gross weight | 0.252 Kilogram |
| Net weight | 0.242 Kilogram |
| Volume | 0.259 Liter |
| EAN | 5702420004884 |
| Type | FJVR valves |
| Product group | Return temperature limiters |
| Gross weight | 0.252 Kilogram |
| Net weight | 0.242 Kilogram |
| Volume | 0.259 Liter |
| EAN | 5702420004884 |
| Type | FJVR valves |
| Product group | Return temperature limiters |
| CE evaluated | Out of scope |
| China RoHS compliance | Out of scope |
| Connection size in | R 3/8 |
| Connection size out | Rp 3/8 |
| Contains batteries | No |
| Contents of set | Valve |
| Description | Return temperature limiter valve, type FJVR, should be combined with FJVR sensor |
| Design | Straight |
| Differential pressure range [bar] [Max] | 1 bar |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(a) 6(c) |
| Flow temperature [°C] [Max] | 120 °C |
| Kvs values [m³/h] | 0.39 m³/h |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 246d268a-f104-48a5-bcc5-ae3047c4799d |
| SCIP dossier product name | FJVR valve |
| Test pressure [bar] | 16 bar |
| UL evaluated | Out of scope |
| UNSPSC CODE | 40141616 |
| Valve size | DN 10 |
| Working pressure [bar] [Max] | 10 bar |
| CE evaluated | Out of scope |
| China RoHS compliance | Out of scope |
| Connection size in | R 3/8 |
| Connection size out | Rp 3/8 |
| Contains batteries | No |
| Contents of set | Valve |
| Description | Return temperature limiter valve, type FJVR, should be combined with FJVR sensor |
| Design | Straight |
| Differential pressure range [bar] [Max] | 1 bar |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(a) 6(c) |
| Flow temperature [°C] [Max] | 120 °C |
| Kvs values [m³/h] | 0.39 m³/h |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 246d268a-f104-48a5-bcc5-ae3047c4799d |
| SCIP dossier product name | FJVR valve |
| Test pressure [bar] | 16 bar |
| UL evaluated | Out of scope |
| UNSPSC CODE | 40141616 |
| Valve size | DN 10 |
| Working pressure [bar] [Max] | 10 bar |
DATASHEET - PDF
Title
Size
Type
11 Mbytes
