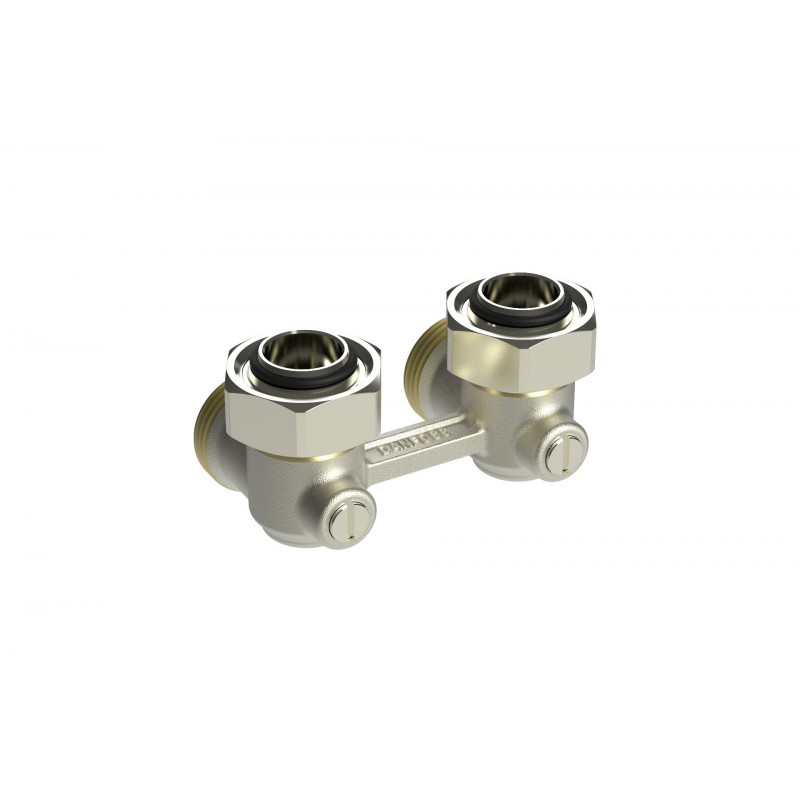

DANFOSS HEATING 003L0393 003L0393 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

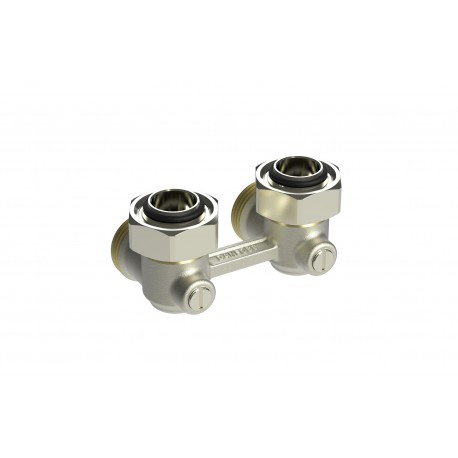

003L0393 DANFOSS HEATING RLV-KB lockshield valve 3/4 angle

Name: 003L0393 DANFOSS HEATING RLV-KB lockshield valve 3/4 angle
Brand: DANFOSS HEATING
SKU: DAS003L0393
Price: 19.80 USD
Availability: OutOfStock

Reference: 003L0393

Manufacturer: DANFOSS HEATING

Description:

RLV-KB lockshield valve 3/4 angle

H-piece valves, RLV-KB, 20, Angle

Categories:

DANFOSS HEATING

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING

More Info
PDF
Reviews

Guarantee, repair and return.

Unit Price: 17,69 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 10 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

MORE INFO

RLV-KB lockshield valve 3/4" angle

Product details

Gross weight	0.292 Kilogram
Net weight	0.279 Kilogram
Volume	0.16 Liter

EAN	5714279001150
Type	RLV-KB
Product group	H-piece valves

Gross weight	0.292 Kilogram
Net weight	0.279 Kilogram
Volume	0.16 Liter
EAN	5714279001150
Type	RLV-KB
Product group	H-piece valves

Application	2-pipe system
CE evaluated	Out of scope
China RoHS compliance	Out of scope
Connection to radiator	G 3/4 A
Connection to system	G 3/4
Contains batteries	No
Description	RLV-KB lockshield valve 3/4" angle
Design	Angle
Distance center to center [mm]	50 mm
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(c)

Flow temperature [°C] [Max]	120 °C
Kvs values [m³/h]	1.4 m³/h
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
SCIP dossier no.	a450b4b4-df56-4e46-843d-0690a6668259
SCIP dossier product name	RLV-KB 3/4" H-piece 1
Surface	Nickel plated
Test pressure [bar]	16 bar
UL evaluated	Out of scope
Valve size	20
Working pressure [bar] [Max]	10 bar

Application	2-pipe system
CE evaluated	Out of scope
China RoHS compliance	Out of scope
Connection to radiator	G 3/4 A
Connection to system	G 3/4
Contains batteries	No
Description	RLV-KB lockshield valve 3/4" angle
Design	Angle
Distance center to center [mm]	50 mm
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(c)
Flow temperature [°C] [Max]	120 °C
Kvs values [m³/h]	1.4 m³/h
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
SCIP dossier no.	a450b4b4-df56-4e46-843d-0690a6668259
SCIP dossier product name	RLV-KB 3/4" H-piece 1
Surface	Nickel plated
Test pressure [bar]	16 bar
UL evaluated	Out of scope
Valve size	20
Working pressure [bar] [Max]	10 bar

DATASHEET - PDF

Title

Size

Type

003L0393 003L0393 ES_003L0392.pdf

587 Kbytes

PDF CATALOGUE DANFOSS HEATING EN

11 Mbytes
