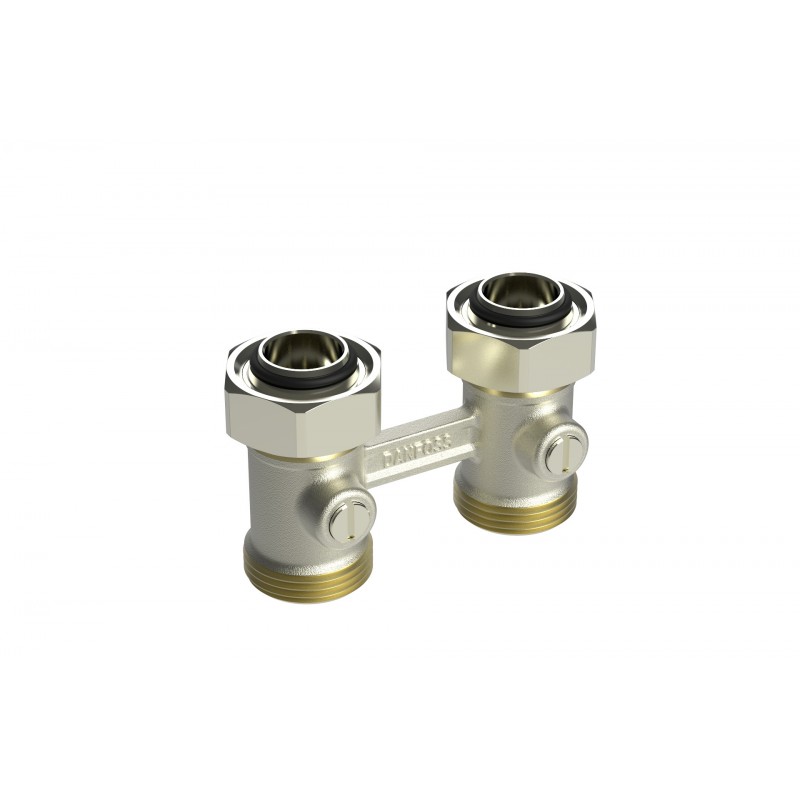

003L0391 DANFOSS HEATING RLV-KB lockshield valve 3/4 straight
003L0391
DANFOSS HEATING
RLV-KB lockshield valve 3/4 straight
H-piece valves, RLV-KB, 20, Straight
Home > DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
Best sellers
▲More info
▲RLV-KB Lockshield valve 3/4" straight
Product details
| Gross weight | 0.288 Kilogram |
| Net weight | 0.27 Kilogram |
| Volume | 0.12 Liter |
| EAN | 5714279001518 |
| Type | RLV-KB |
| Product group | H-piece valves |
| Gross weight | 0.288 Kilogram |
| Net weight | 0.27 Kilogram |
| Volume | 0.12 Liter |
| EAN | 5714279001518 |
| Type | RLV-KB |
| Product group | H-piece valves |
| Application | 2-pipe system |
| CE evaluated | Out of scope |
| China RoHS compliance | Out of scope |
| Connection to radiator | G 3/4 A |
| Connection to system | G 3/4 |
| Contains batteries | No |
| Description | RLV-KB Lockshield valve 3/4" straight |
| Design | Straight |
| Distance center to center [mm] | 50 mm |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow temperature [°C] [Max] | 120 °C |
| Kvs values [m³/h] | 1.4 m³/h |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | a450b4b4-df56-4e46-843d-0690a6668259 |
| SCIP dossier product name | RLV-KB 3/4" H-piece 1 |
| Surface | Nickel plated |
| Test pressure [bar] | 16 bar |
| UL evaluated | Out of scope |
| UNSPSC CODE | 40141616 |
| Valve size | 20 |
| Working pressure [bar] [Max] | 10 bar |
| Application | 2-pipe system |
| CE evaluated | Out of scope |
| China RoHS compliance | Out of scope |
| Connection to radiator | G 3/4 A |
| Connection to system | G 3/4 |
| Contains batteries | No |
| Description | RLV-KB Lockshield valve 3/4" straight |
| Design | Straight |
| Distance center to center [mm] | 50 mm |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow temperature [°C] [Max] | 120 °C |
| Kvs values [m³/h] | 1.4 m³/h |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | a450b4b4-df56-4e46-843d-0690a6668259 |
| SCIP dossier product name | RLV-KB 3/4" H-piece 1 |
| Surface | Nickel plated |
| Test pressure [bar] | 16 bar |
| UL evaluated | Out of scope |
| UNSPSC CODE | 40141616 |
| Valve size | 20 |
| Working pressure [bar] [Max] | 10 bar |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
| 003L0391 003L0391 ES_003L0392.pdf | 587 Kbytes |
|
