DANFOSS HEATING003L0280 DANFOSS HEATING RLV-K 15 Straight

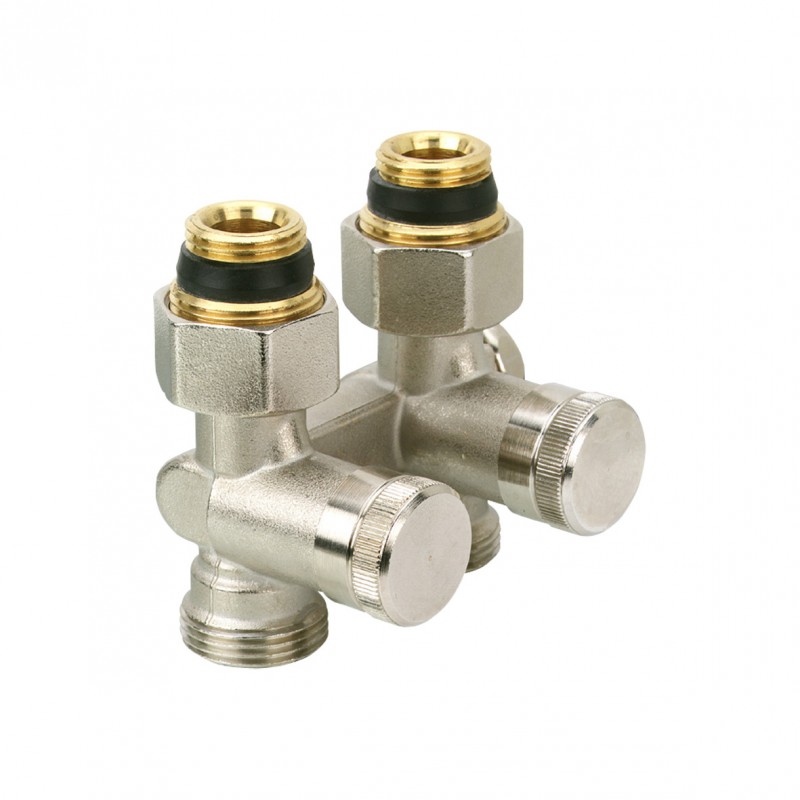

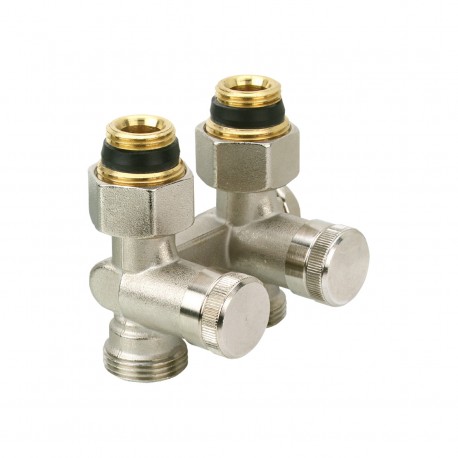

DANFOSS HEATING 003L0280 003L0280 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

003L0280 DANFOSS HEATING RLV-K 15 Straight

Reference: 003L0280

Manufacturer: DANFOSS HEATING

Description:

RLV-K 15 Straight
H-piece valves, RLV-K, 15, Straight

Categories:

  • DANFOSS HEATING

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 33,96 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

With drain-off feature, for 1 and 2-pipe systems

Product details

Gross weight0.59 Kilogram
Net weight0.582 Kilogram
Volume0.377 Liter
EAN5702421034392
TypeRLV-K
Product groupH-piece valves
Gross weight0.59 Kilogram
Net weight0.582 Kilogram
Volume0.377 Liter
EAN5702421034392
TypeRLV-K
Product groupH-piece valves

Application2-pipe system
1-pipe system
CE evaluatedOut of scope
China RoHS complianceOut of scope
Connection to radiatorR 1/2
Connection to systemG 3/4
Contains batteriesNo
DescriptionWith drain-off feature, for 1 and 2-pipe systems
DesignStraight
Distance center to center [mm]50 mm
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(c)
Flow temperature [°C] [Max]120 °C
Kvs values [m³/h]1.4 m³/h
Label productYes
REACH Candidate List substancesLead (CAS no. 7439-92-1)
SCIP dossier no.9b7b8f78-bd6d-4df4-b0d5-d6386af6d239
SCIP dossier product nameRLV-K, H-piece
SurfaceNickel plated
Test pressure [bar]16 bar
UL evaluatedOut of scope
Valve size15
Working pressure [bar] [Max]10 bar
Application2-pipe system
1-pipe system
CE evaluatedOut of scope
China RoHS complianceOut of scope
Connection to radiatorR 1/2
Connection to systemG 3/4
Contains batteriesNo
DescriptionWith drain-off feature, for 1 and 2-pipe systems
DesignStraight
Distance center to center [mm]50 mm
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(c)
Flow temperature [°C] [Max]120 °C
Kvs values [m³/h]1.4 m³/h
Label productYes
REACH Candidate List substancesLead (CAS no. 7439-92-1)
SCIP dossier no.9b7b8f78-bd6d-4df4-b0d5-d6386af6d239
SCIP dossier product nameRLV-K, H-piece
SurfaceNickel plated
Test pressure [bar]16 bar
UL evaluatedOut of scope
Valve size15
Working pressure [bar] [Max]10 bar

DATASHEET - PDF

Title
Size
Type
003L0280 003L0280 ES_003L0280.pdf
685 Kbytes
PDF CATALOGUE DANFOSS HEATING EN
11 Mbytes
