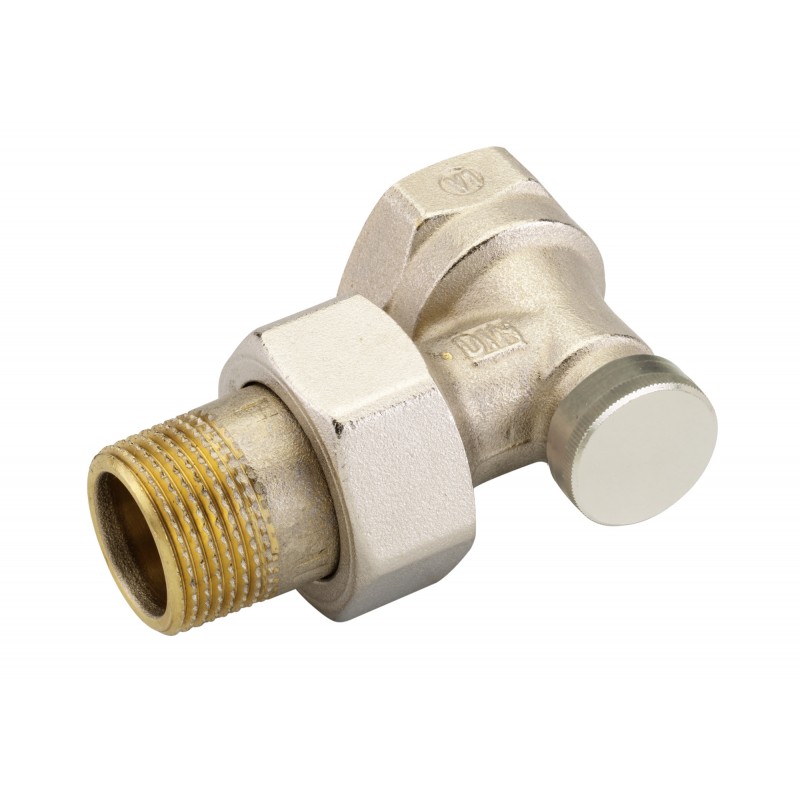

003L0125 DANFOSS HEATING RLV-S 20 ANGLE, NICKELPLATED
003L0125
DANFOSS HEATING
RLV-S 20 ANGLE, NICKELPLATED
Lockshield Valves, RLV-S, DN 20, Angle, Standard, Internal thread
Home > DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
Best sellers
▲More info
▲Standard lockshield valve, nickel-plated
Product details
| Gross weight | 0.282 Kilogram |
| Net weight | 0.268 Kilogram |
| Volume | 0.158 Liter |
| EAN | 5702420035833 |
| Gross weight | 0.282 Kilogram |
| Net weight | 0.268 Kilogram |
| Volume | 0.158 Liter |
| EAN | 5702420035833 |
| China RoHS compliance | Out of scope |
| Connection to radiator | R 3/4 |
| Connection to system | Rp 3/4 |
| Connection types | Internal thread |
| Description | Standard lockshield valve, nickel-plated |
| Design | Angle |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Finish | Nickel plated |
| Flow temperature [°C] [Max] | 120 °C |
| In scope of WEEE and contain batteries | No |
| Kvs values [m³/h] | 2.2 m³/h |
| Label product | Yes |
| Product group | Lockshield Valves |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 7137db49-55ea-470c-ba5d-28b3fb1ea9e6 |
| SCIP dossier product name | RLV-S Lock shield 1 |
| Surface | Nickel plated |
| Tailpiece type | Standard |
| Test pressure [bar] | 16 bar |
| Type | RLV-S |
| UK RoHS compliance | Out of scope |
| Valve size | DN 20 |
| Working pressure [bar] [Max] | 10 bar |
| China RoHS compliance | Out of scope |
| Connection to radiator | R 3/4 |
| Connection to system | Rp 3/4 |
| Connection types | Internal thread |
| Description | Standard lockshield valve, nickel-plated |
| Design | Angle |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Finish | Nickel plated |
| Flow temperature [°C] [Max] | 120 °C |
| In scope of WEEE and contain batteries | No |
| Kvs values [m³/h] | 2.2 m³/h |
| Label product | Yes |
| Product group | Lockshield Valves |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 7137db49-55ea-470c-ba5d-28b3fb1ea9e6 |
| SCIP dossier product name | RLV-S Lock shield 1 |
| Surface | Nickel plated |
| Tailpiece type | Standard |
| Test pressure [bar] | 16 bar |
| Type | RLV-S |
| UK RoHS compliance | Out of scope |
| Valve size | DN 20 |
| Working pressure [bar] [Max] | 10 bar |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
| 003L0125 003L0125 EN_003L0121.pdf | 218 Kbytes |
|
