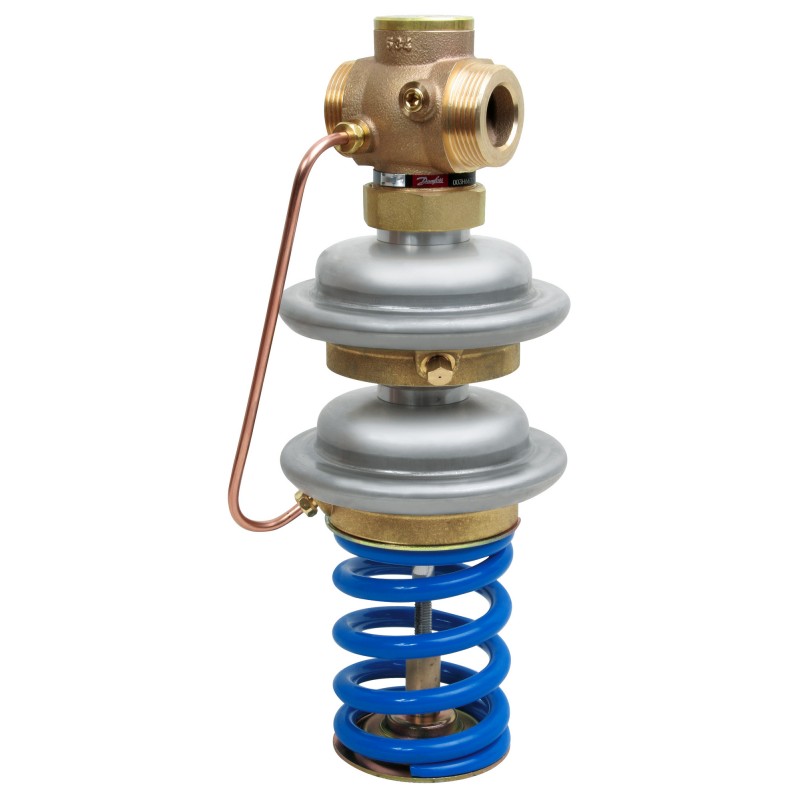

DANFOSS HEATING 003H6961 003H6961 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

003H6961 DANFOSS HEATING SAVA PN25 20/6,3 2-7,5 thread bypass

Name: 003H6961 DANFOSS HEATING SAVA PN25 20/6,3 2-7,5 thread bypass
Brand: DANFOSS HEATING
SKU: DAS003H6961
Price: 1256.95 USD
Availability: OutOfStock

Reference: 003H6961

Manufacturer: DANFOSS HEATING

Description:

SAVA PN25 20/6,3 2-7,5 thread bypass

Function: Safety press. relief controller (SÜV), SAVA, PN 25, DN 20, 6.3 m³/h, 2 bar - 7.5 bar, External Thread, G 1 A, Mounting version: Bypass

Categories:

DANFOSS HEATING

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING

More Info
PDF
Reviews

Guarantee, repair and return.

Unit Price: 1.122,86 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 10 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

MORE INFO

SAVA PN25 20/6,3 2-7,5 thread bypass

Product details

Gross weight	6.739 Kilogram
Net weight	6.739 Kilogram
Volume	10.416 Liter

EAN	5710104031101
Type	SAVA
Product group	Pressure flow controllers

Gross weight	6.739 Kilogram
Net weight	6.739 Kilogram
Volume	10.416 Liter
EAN	5710104031101
Type	SAVA
Product group	Pressure flow controllers

Actuator diaphragm material	EPDM
Application	District Heating
Cavitation factor	0.6
Cavitation factor 100%	0.41
Cavitation factor 25%	0.69
Cavitation factor 50%	0.62
Cavitation factor 75%	0.6
China RoHS compliance	Out of scope
Connection size	G 1 A
Connection types	External Thread
Contains batteries	No
Description	SAVA PN25 20/6,3 2-7,5 thread bypass
Diameter [mm]	20 mm
Differential pressure range [bar] [Max]	20 bar
EU RoHS compliance	Yes with exemptions
Flow control	No
Flow limitation	No
Function	Safety press. relief controller (SÜV)
Function VSP - P	Yes
Function VSP - Q	No
Function VSP - T	No
Kvs values [m³/h]	6.3 m³/h
Leakage rate [% Kvs]	0.02

Media pH [Max]	10
Media pH [Min]	7
Media temperature [°C] [Max]	150 °C
Media temperature [°C] [Min]	2 °C
Medium alternative	Glycolic water up to 30%
Mounting version	Bypass
Number of ports	2
Permissible media	District heating/cooling circulation water
PN alternative VSP	16
Pressure class	PN 25
Pressure controller	Yes
Pressure nominal [bar]	25 bar
Pressure setting range [bar] [Max]	7.5 bar
Pressure setting range [bar] [Min]	2 bar
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Sealing DP material	EPDM
Setting Type	Adjustable
Stem position	Normally closed
Valve body material	Red bronze CuSn5ZnPb (Rg5)
Valve cone DP material	Dezincing free brass CuZn36Pb2As
Valve seat material	Stainless steel, mat. No. 1.4571
Valve size	DN 20

Actuator diaphragm material	EPDM
Application	District Heating
Cavitation factor	0.6
Cavitation factor 100%	0.41
Cavitation factor 25%	0.69
Cavitation factor 50%	0.62
Cavitation factor 75%	0.6
China RoHS compliance	Out of scope
Connection size	G 1 A
Connection types	External Thread
Contains batteries	No
Description	SAVA PN25 20/6,3 2-7,5 thread bypass
Diameter [mm]	20 mm
Differential pressure range [bar] [Max]	20 bar
EU RoHS compliance	Yes with exemptions
Flow control	No
Flow limitation	No
Function	Safety press. relief controller (SÜV)
Function VSP - P	Yes
Function VSP - Q	No
Function VSP - T	No
Kvs values [m³/h]	6.3 m³/h
Leakage rate [% Kvs]	0.02
Media pH [Max]	10
Media pH [Min]	7
Media temperature [°C] [Max]	150 °C
Media temperature [°C] [Min]	2 °C
Medium alternative	Glycolic water up to 30%
Mounting version	Bypass
Number of ports	2
Permissible media	District heating/cooling circulation water
PN alternative VSP	16
Pressure class	PN 25
Pressure controller	Yes
Pressure nominal [bar]	25 bar
Pressure setting range [bar] [Max]	7.5 bar
Pressure setting range [bar] [Min]	2 bar
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Sealing DP material	EPDM
Setting Type	Adjustable
Stem position	Normally closed
Valve body material	Red bronze CuSn5ZnPb (Rg5)
Valve cone DP material	Dezincing free brass CuZn36Pb2As
Valve seat material	Stainless steel, mat. No. 1.4571
Valve size	DN 20

DATASHEET - PDF

Title

Size

Type

003H6961 003H6961 ES_003H6675.pdf

1 Mbytes

PDF CATALOGUE DANFOSS HEATING EN

11 Mbytes
