DANFOSS HEATING 003H6854 003H6854 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

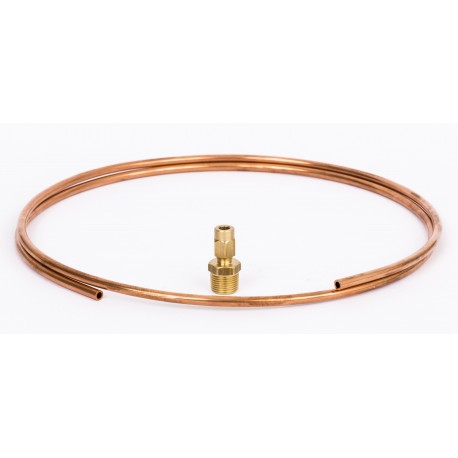

003H6854 DANFOSS HEATING Impulse tube set AV R 1/2"",fi 6x1,5m

Reference: 003H6854

Manufacturer: DANFOSS HEATING

Description:

Impulse tube set AV R 1/2"",fi 6x1,5m
Impulse tubes, 6 mm, R 1/2, 1500 mm, Copper Cu-DHP CW024A H040, For product type: AV(P)QM (T)

Categories:

  • DANFOSS HEATING

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 55,69 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Impulse tube set AV R 1/2##,fi 6x1,5m

Product details

Gross weight0.424 Kilogram
Net weight0.292 Kilogram
Volume3.538 Liter
EAN5702421541586
TypeImpulse tubes
Product groupAccessories - SAC
Gross weight0.424 Kilogram
Net weight0.292 Kilogram
Volume3.538 Liter
EAN5702421541586
TypeImpulse tubes
Product groupAccessories - SAC

Connection sizeR 1/2
Contains batteriesNo
DescriptionImpulse tube set AV R 1/2##,fi 6x1,5m
Diameter [mm]6 mm
EU RoHS complianceYes with exemptions
For product typeAV(P)QM (T)
Length [mm]1500 mm
MaterialCopper Cu-DHP CW024A H040
Permissible mediaDistrict heating/cooling circulation water
Pressure nominal [bar]25 bar
REACH Candidate List substancesLead (CAS no. 7439-92-1)
SCIP dossier no.580c7560-1449-4cdc-bc55-240a23211f5a
Suitable for valve of diameter [mm] [Max]50 mm
Suitable for valve of diameter [mm] [Min]15 mm
Connection sizeR 1/2
Contains batteriesNo
DescriptionImpulse tube set AV R 1/2##,fi 6x1,5m
Diameter [mm]6 mm
EU RoHS complianceYes with exemptions
For product typeAV(P)QM (T)
Length [mm]1500 mm
MaterialCopper Cu-DHP CW024A H040
Permissible mediaDistrict heating/cooling circulation water
Pressure nominal [bar]25 bar
REACH Candidate List substancesLead (CAS no. 7439-92-1)
SCIP dossier no.580c7560-1449-4cdc-bc55-240a23211f5a
Suitable for valve of diameter [mm] [Max]50 mm
Suitable for valve of diameter [mm] [Min]15 mm
