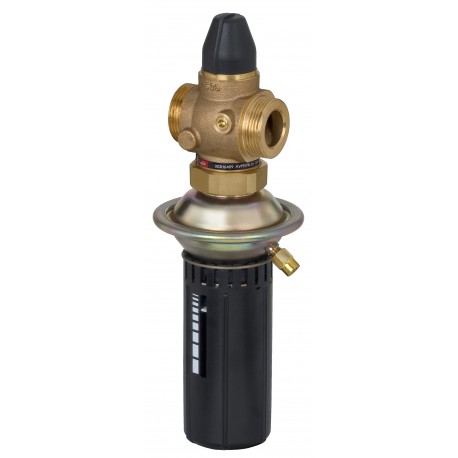

DANFOSS HEATING 003H6399 003H6399 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

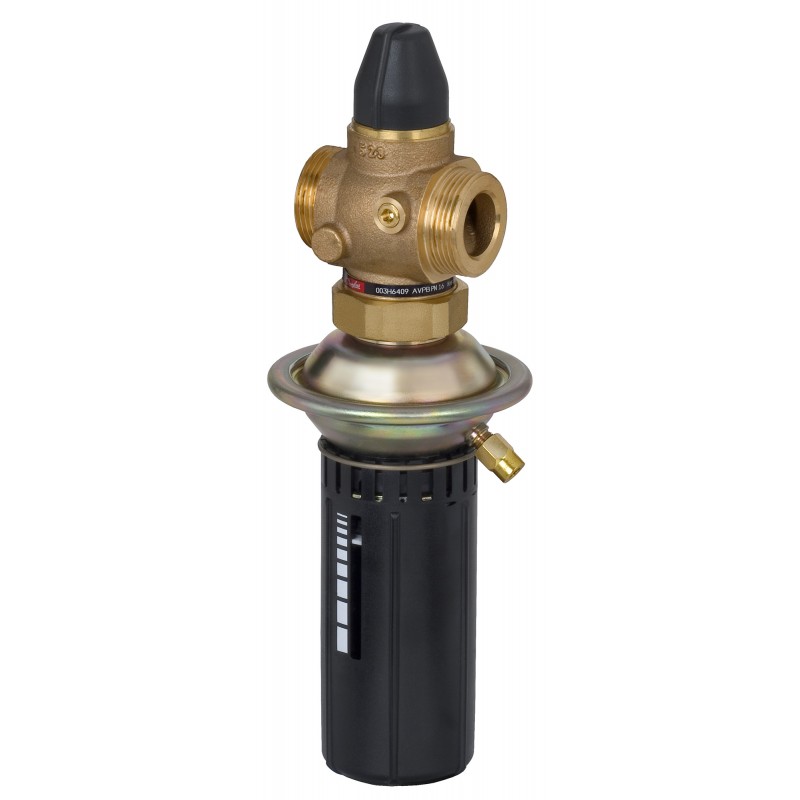

003H6399 DANFOSS HEATING AVPB PN16 15/1,6 0,2-1,0 thread return

Name: 003H6399 DANFOSS HEATING AVPB PN16 15/1,6 0,2-1,0 thread return
Brand: DANFOSS HEATING
SKU: DAS003H6399
Price: 916.77 USD
Availability: OutOfStock

Reference: 003H6399

Manufacturer: DANFOSS HEATING

Description:

AVPB PN16 15/1,6 0,2-1,0 thread return

AVPB, PN 16, DN 15, Flow rate [m³/h]: 0.06 - 1.4, 0.2 bar - 1 bar, External Thread, G 3/4 A, Mounting version: Return

Categories:

DANFOSS HEATING

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING

More Info
PDF
Reviews

Guarantee, repair and return.

Unit Price: 805,21 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 10 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

MORE INFO

AVPB PN16 15/1,6 0,2-1,0 thread return

Product details

Gross weight	2.15 Kilogram
Net weight	2.12 Kilogram
Volume	6.747 Liter

EAN	5702421539187
Type	AVPB
Product group	Pressure flow controllers

Gross weight	2.15 Kilogram
Net weight	2.12 Kilogram
Volume	6.747 Liter
EAN	5702421539187
Type	AVPB
Product group	Pressure flow controllers

Actuator diaphragm material	EPDM
Application	District Heating
Cavitation factor	0.6
Cavitation factor 100%	0.41
Cavitation factor 25%	0.69
Cavitation factor 50%	0.62
Cavitation factor 75%	0.6
China RoHS compliance	Out of scope
Connection size	G 3/4 A
Connection types	External Thread
Contains batteries	No
Description	AVPB PN16 15/1,6 0,2-1,0 thread return
Diameter [mm]	15 mm
Differential pressure range [bar] [Max]	12 bar
Differential pressure setting [bar] [Max]	1 bar
Differential pressure setting [bar] [Min]	0.2 bar
dPb virtual	0.2
EU RoHS compliance	Yes with exemptions
Flow control	No
Flow limitation	Yes
Flow rate [m³/h]	1.4 m³/h
Flow rate [m³/h] [Max]	1.4 m³/h
Flow rate [m³/h] [Min]	0.06 m³/h
Function	Diff. press. and flow limiter
Function VSP - P	Yes

Function VSP - Q	Yes
Function VSP - T	No
Kvs values [m³/h]	1.6 m³/h
Leakage rate [% Kvs]	0.02
Media pH [Max]	10
Media pH [Min]	7
Media temperature [°C] [Max]	150 °C
Media temperature [°C] [Min]	2 °C
Medium alternative	Glycolic water up to 30%
Mounting version	Return
Number of ports	2
Permissible media	District heating/cooling circulation water
PN alternative VSP	0
Pressure class	PN 16
Pressure controller	Differential pressure controller
Pressure nominal [bar]	16 bar
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Sealing DP material	EPDM
Setting Type	Adjustable
Stem position	Normally open
Valve body material	Red bronze CuSn5ZnPb (Rg5)
Valve cone DP material	Dezincing free brass CuZn36Pb2As
Valve seat material	Stainless steel, mat. No. 1.4571
Valve size	DN 15

Actuator diaphragm material	EPDM
Application	District Heating
Cavitation factor	0.6
Cavitation factor 100%	0.41
Cavitation factor 25%	0.69
Cavitation factor 50%	0.62
Cavitation factor 75%	0.6
China RoHS compliance	Out of scope
Connection size	G 3/4 A
Connection types	External Thread
Contains batteries	No
Description	AVPB PN16 15/1,6 0,2-1,0 thread return
Diameter [mm]	15 mm
Differential pressure range [bar] [Max]	12 bar
Differential pressure setting [bar] [Max]	1 bar
Differential pressure setting [bar] [Min]	0.2 bar
dPb virtual	0.2
EU RoHS compliance	Yes with exemptions
Flow control	No
Flow limitation	Yes
Flow rate [m³/h]	1.4 m³/h
Flow rate [m³/h] [Max]	1.4 m³/h
Flow rate [m³/h] [Min]	0.06 m³/h
Function	Diff. press. and flow limiter
Function VSP - P	Yes
Function VSP - Q	Yes
Function VSP - T	No
Kvs values [m³/h]	1.6 m³/h
Leakage rate [% Kvs]	0.02
Media pH [Max]	10
Media pH [Min]	7
Media temperature [°C] [Max]	150 °C
Media temperature [°C] [Min]	2 °C
Medium alternative	Glycolic water up to 30%
Mounting version	Return
Number of ports	2
Permissible media	District heating/cooling circulation water
PN alternative VSP	0
Pressure class	PN 16
Pressure controller	Differential pressure controller
Pressure nominal [bar]	16 bar
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Sealing DP material	EPDM
Setting Type	Adjustable
Stem position	Normally open
Valve body material	Red bronze CuSn5ZnPb (Rg5)
Valve cone DP material	Dezincing free brass CuZn36Pb2As
Valve seat material	Stainless steel, mat. No. 1.4571
Valve size	DN 15
