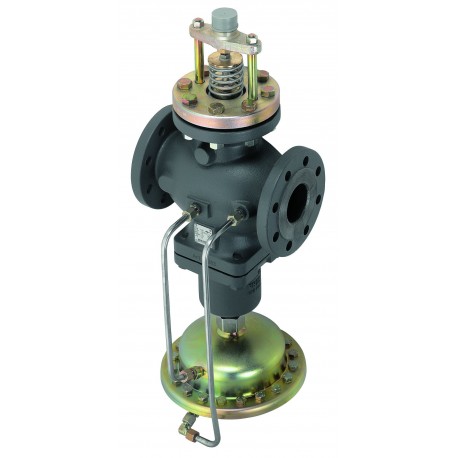

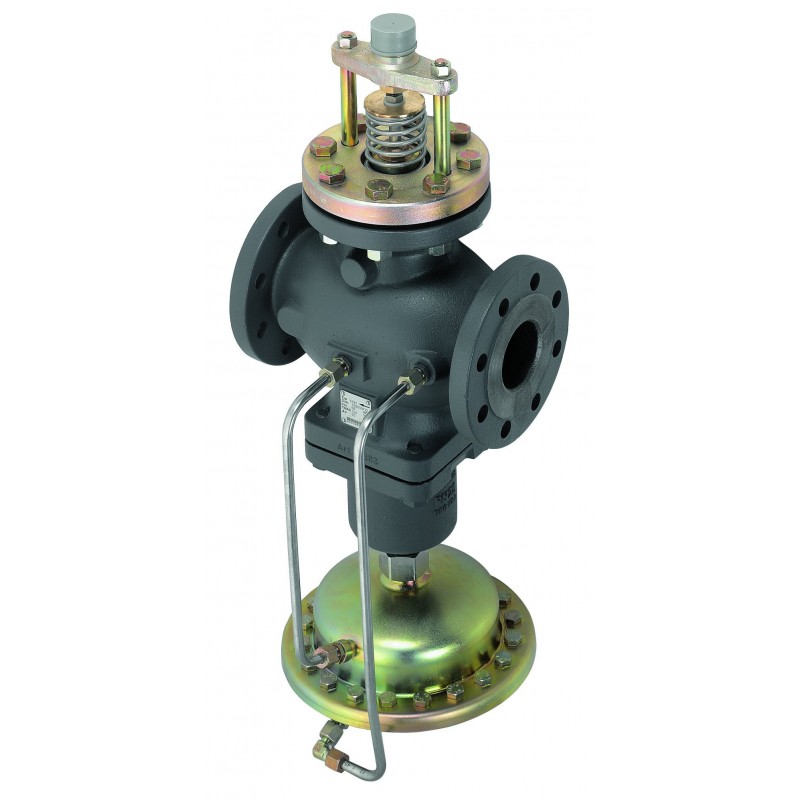

003G6061 DANFOSS HEATING AFQM PN16 200/320 /0,2 flange flow/ret

Reference: 003G6061

Manufacturer: DANFOSS HEATING

Description:

AFQM PN16 200/320 /0,2 flange flow/ret
AFQM, PN 16, DN 200, Flow rate [m³/h]: 38 - 190, Flange, Mounting version: Free

Categories:

  • DANFOSS HEATING

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

AFQM PN16 200/320 /0,2 flange flow/ret

Product details

Gross weight256.6 Kilogram
Net weight228 Kilogram
Volume508.8 Liter
EAN5710104501529
TypeAFQM
Product groupPressure flow controllers
Gross weight256.6 Kilogram
Net weight228 Kilogram
Volume508.8 Liter
EAN5710104501529
TypeAFQM
Product groupPressure flow controllers

Actuator diaphragm materialEPDM (Rolling, fibre enforced)
Actuator size [cm²]250 cm²
ApplicationDistrict Heating
Cavitation factor0.2
Cavitation factor 100%0.16
Cavitation factor 25%0.2
Cavitation factor 50%0.31
Cavitation factor 75%0.29
China RoHS complianceOut of scope
Connection typesFlange
Contains batteriesNo
DescriptionAFQM PN16 200/320 /0,2 flange flow/ret
Diameter [mm]200 mm
Differential pressure range [bar] [Max]10 bar
EU RoHS complianceYes with exemptions
Flow controlYes
Flow limitationYes
Flow rate [m³/h]190 m³/h
Flow rate [m³/h] [Max]190 m³/h
Flow rate [m³/h] [Min]38 m³/h
Flow restrictor diff.pressure - dpb [bar]0.2 bar
FunctionFlow controller with int. control valve
Function VSP - PNo
Function VSP - QNo
Function VSP - TNo
Kvs values [m³/h]320 m³/h
Leakage rate [% Kvs]0.01
Media pH [Max]10
Media pH [Min]7
Media temperature [°C] [Max]150 °C
Media temperature [°C] [Min]2 °C
Medium alternativeGlycolic water up to 30%
Mounting versionFree
Number of ports2
Permissible mediaDistrict heating/cooling circulation water
PN alternative VSP10
Pressure classPN 16
Pressure controllerNo
Pressure nominal [bar]16 bar
Pressure relieve system control valve insertPiston
REACH Candidate List substancesLead (CAS no. 7439-92-1)
SCIP dossier no.b7b59542-4217-4c5c-96a5-552807d72d74
SCIP dossier product nameAFQM DN65-400
Sealing CV materialEPDM
Sealing DP materialEPDM
Setting TypeNone
Stem positionNormally open
Stroke [mm]20 mm
Valve body materialGrey cast iron EN-GJL-250 (GG-25)
Valve cone CV materialStainless steel mat. No. 1.4021
Valve cone DP materialStainless steel mat. No. 1.4021
Valve seat materialStainless steel, mat. No. 1.4021
Valve sizeDN 200
Actuator diaphragm materialEPDM (Rolling, fibre enforced)
Actuator size [cm²]250 cm²
ApplicationDistrict Heating
Cavitation factor0.2
Cavitation factor 100%0.16
Cavitation factor 25%0.2
Cavitation factor 50%0.31
Cavitation factor 75%0.29
China RoHS complianceOut of scope
Connection typesFlange
Contains batteriesNo
DescriptionAFQM PN16 200/320 /0,2 flange flow/ret
Diameter [mm]200 mm
Differential pressure range [bar] [Max]10 bar
EU RoHS complianceYes with exemptions
Flow controlYes
Flow limitationYes
Flow rate [m³/h]190 m³/h
Flow rate [m³/h] [Max]190 m³/h
Flow rate [m³/h] [Min]38 m³/h
Flow restrictor diff.pressure - dpb [bar]0.2 bar
FunctionFlow controller with int. control valve
Function VSP - PNo
Function VSP - QNo
Function VSP - TNo
Kvs values [m³/h]320 m³/h
Leakage rate [% Kvs]0.01
Media pH [Max]10
Media pH [Min]7
Media temperature [°C] [Max]150 °C
Media temperature [°C] [Min]2 °C
Medium alternativeGlycolic water up to 30%
Mounting versionFree
Number of ports2
Permissible mediaDistrict heating/cooling circulation water
PN alternative VSP10
Pressure classPN 16
Pressure controllerNo
Pressure nominal [bar]16 bar
Pressure relieve system control valve insertPiston
REACH Candidate List substancesLead (CAS no. 7439-92-1)
SCIP dossier no.b7b59542-4217-4c5c-96a5-552807d72d74
SCIP dossier product nameAFQM DN65-400
Sealing CV materialEPDM
Sealing DP materialEPDM
Setting TypeNone
Stem positionNormally open
Stroke [mm]20 mm
Valve body materialGrey cast iron EN-GJL-250 (GG-25)
Valve cone CV materialStainless steel mat. No. 1.4021
Valve cone DP materialStainless steel mat. No. 1.4021
Valve seat materialStainless steel, mat. No. 1.4021
Valve sizeDN 200
