DANFOSS HEATING003G5633 DANFOSS HEATING AFD 2 PN16 0,1-0,35 640cm2 yellow

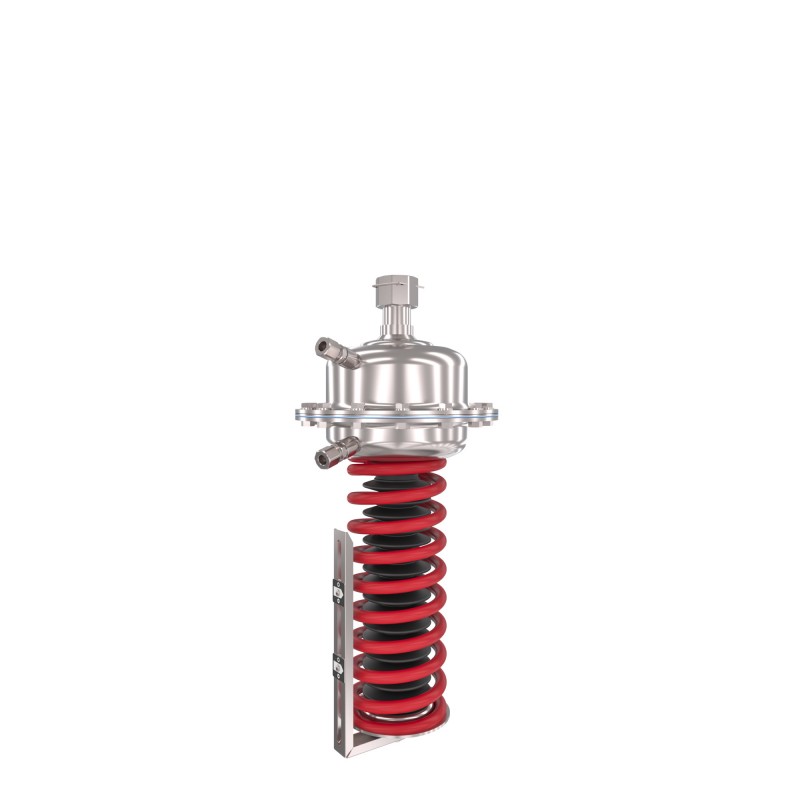

DANFOSS HEATING 003G5633 003G5633 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

003G5633 DANFOSS HEATING AFD 2 PN16 0,1-0,35 640cm2 yellow

Reference: 003G5633

Manufacturer: DANFOSS HEATING

Description:

AFD 2 PN16 0,1-0,35 640cm2 yellow
AFD 2, PN 16, 0.1 bar - 0.35 bar, 640 cm²

Categories:

  • DANFOSS HEATING

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 2.696,33 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Pressure reduction actuator

Product details

Gross weight50.6 Kilogram
Net weight40 Kilogram
Volume191.52 Liter
EAN5710104518640
TypeAFD 2
Product groupActuators - Pressure Flow
Gross weight50.6 Kilogram
Net weight40 Kilogram
Volume191.52 Liter
EAN5710104518640
TypeAFD 2
Product groupActuators - Pressure Flow

Actuator diaphragm materialEPDM (Rolling, fibre enforced)
Actuator size [cm²]640 cm²
ApplicationDistrict heating and cooling
Body materialSteel, mat. No. 1.0345, zinc plated
China RoHS complianceOut of scope
Contains batteriesNo
DescriptionPressure reduction actuator
Diameter [mm] [Max]250 mm
Diameter [mm] [Min]65 mm
Differential pressure setting [bar] [Max]0.35 bar
Differential pressure setting [bar] [Min]0.1 bar
EU RoHS complianceOut of scope
Flow controlNo
Flow limitationNo
FunctionPress. reduction controller
Media pH [Max]10
Media pH [Min]7
Media temperature [°C] [Max]150 °C
Media temperature [°C] [Min]2 °C
Medium alternativeGlycolic water up to 30%
Mounting versionFlow
Operating pressure [bar] [Max]16 bar
Permissible mediaDistrict heating/cooling circulation water
Pressure classPN 16
Pressure controllerPress. reduction controller
Pressure nominal [bar]16 bar
Pressure setting range [bar] [Max]0.35 bar
Pressure setting range [bar] [Min]0.1 bar
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Setting TypeAdjustable
Actuator diaphragm materialEPDM (Rolling, fibre enforced)
Actuator size [cm²]640 cm²
ApplicationDistrict heating and cooling
Body materialSteel, mat. No. 1.0345, zinc plated
China RoHS complianceOut of scope
Contains batteriesNo
DescriptionPressure reduction actuator
Diameter [mm] [Max]250 mm
Diameter [mm] [Min]65 mm
Differential pressure setting [bar] [Max]0.35 bar
Differential pressure setting [bar] [Min]0.1 bar
EU RoHS complianceOut of scope
Flow controlNo
Flow limitationNo
FunctionPress. reduction controller
Media pH [Max]10
Media pH [Min]7
Media temperature [°C] [Max]150 °C
Media temperature [°C] [Min]2 °C
Medium alternativeGlycolic water up to 30%
Mounting versionFlow
Operating pressure [bar] [Max]16 bar
Permissible mediaDistrict heating/cooling circulation water
Pressure classPN 16
Pressure controllerPress. reduction controller
Pressure nominal [bar]16 bar
Pressure setting range [bar] [Max]0.35 bar
Pressure setting range [bar] [Min]0.1 bar
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Setting TypeAdjustable

DATASHEET - PDF

Title
Size
Type
003G5633 003G5633 EN_003G5624.pdf
2 Mbytes
PDF CATALOGUE DANFOSS HEATING EN
11 Mbytes
