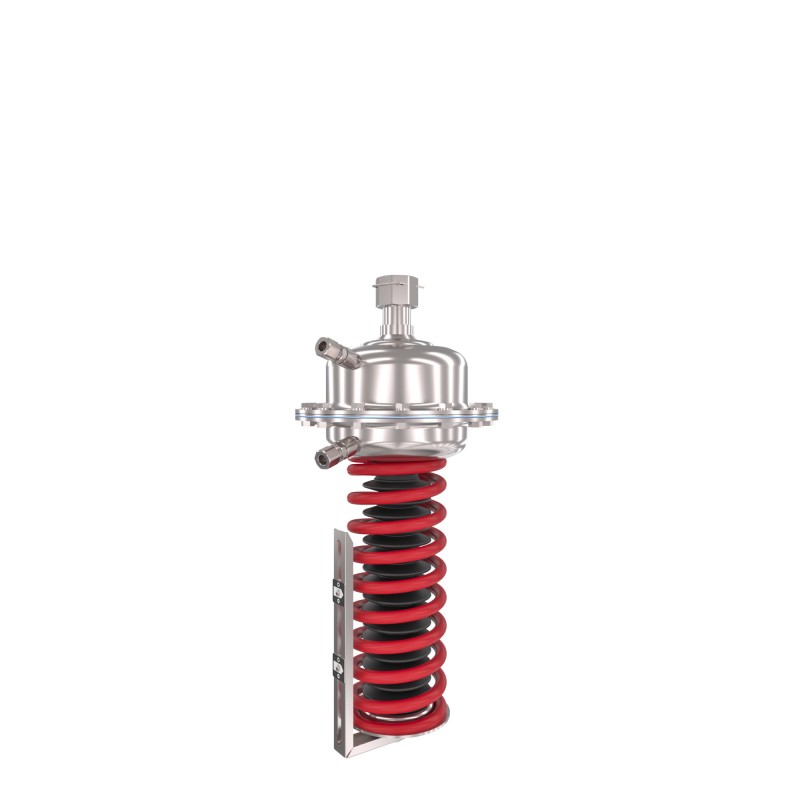

003G5627 DANFOSS HEATING AFD 2 PN16 1-3 80cm2 yellow
Reference: 003G5627
Manufacturer: DANFOSS HEATING
Description:
AFD 2 PN16 1-3 80cm2 yellow
AFD 2, PN 16, 1 bar - 3 bar, 80 cm²
Categories:
- DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
- More Info
- Reviews
* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
LAST VIEWED
MORE INFO
Pressure reduction actuator
Product details
| Gross weight | 9.708 Kilogram |
| Net weight | 8.5 Kilogram |
| Volume | 49.619 Liter |
| EAN | 5714279049756 |
| Type | AFD 2 |
| Product group | Actuators - Pressure Flow |
| Gross weight | 9.708 Kilogram |
| Net weight | 8.5 Kilogram |
| Volume | 49.619 Liter |
| EAN | 5714279049756 |
| Type | AFD 2 |
| Product group | Actuators - Pressure Flow |
| Actuator diaphragm material | EPDM (Rolling, fibre enforced) |
| Actuator size [cm²] | 80 cm² |
| Application | District heating and cooling |
| Body material | Steel, mat. No. 1.0345, zinc plated |
| China RoHS compliance | Out of scope |
| Contains batteries | No |
| Description | Pressure reduction actuator |
| Diameter [mm] [Max] | 125 mm |
| Diameter [mm] [Min] | 65 mm |
| Differential pressure setting [bar] [Max] | 3 bar |
| Differential pressure setting [bar] [Min] | 1 bar |
| EU RoHS compliance | Out of scope |
| Flow control | No |
| Flow limitation | No |
| Function | Press. reduction controller |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 150 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 30% |
| Mounting version | Flow |
| Operating pressure [bar] [Max] | 16 bar |
| Permissible media | District heating/cooling circulation water |
| Pressure class | PN 16 |
| Pressure controller | Press. reduction controller |
| Pressure nominal [bar] | 16 bar |
| Pressure setting range [bar] [Max] | 3 bar |
| Pressure setting range [bar] [Min] | 1 bar |
| Setting Type | Adjustable |
| Actuator diaphragm material | EPDM (Rolling, fibre enforced) |
| Actuator size [cm²] | 80 cm² |
| Application | District heating and cooling |
| Body material | Steel, mat. No. 1.0345, zinc plated |
| China RoHS compliance | Out of scope |
| Contains batteries | No |
| Description | Pressure reduction actuator |
| Diameter [mm] [Max] | 125 mm |
| Diameter [mm] [Min] | 65 mm |
| Differential pressure setting [bar] [Max] | 3 bar |
| Differential pressure setting [bar] [Min] | 1 bar |
| EU RoHS compliance | Out of scope |
| Flow control | No |
| Flow limitation | No |
| Function | Press. reduction controller |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 150 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 30% |
| Mounting version | Flow |
| Operating pressure [bar] [Max] | 16 bar |
| Permissible media | District heating/cooling circulation water |
| Pressure class | PN 16 |
| Pressure controller | Press. reduction controller |
| Pressure nominal [bar] | 16 bar |
| Pressure setting range [bar] [Max] | 3 bar |
| Pressure setting range [bar] [Min] | 1 bar |
| Setting Type | Adjustable |
