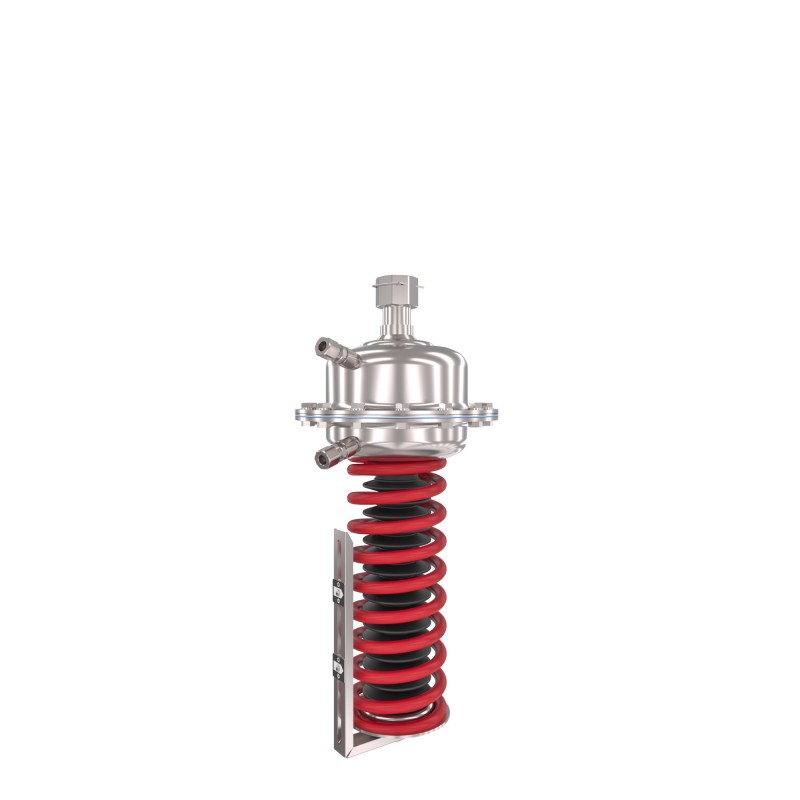

003G5625 DANFOSS HEATING AFD 2 PN16 3-12 32cm2 red
Reference: 003G5625
Manufacturer: DANFOSS HEATING
Description:
AFD 2 PN16 3-12 32cm2 red
AFD 2, PN 16, 3 bar - 12 bar, 32 cm²
Categories:
- DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
- More Info
- Reviews
* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
MORE INFO
Pressure reduction actuator
Product details
| Gross weight | 10.8 Kilogram |
| Net weight | 10 Kilogram |
| Volume | 50.475 Liter |
| EAN | 5714279038484 |
| Type | AFD 2 |
| Product group | Actuators - Pressure Flow |
| Gross weight | 10.8 Kilogram |
| Net weight | 10 Kilogram |
| Volume | 50.475 Liter |
| EAN | 5714279038484 |
| Type | AFD 2 |
| Product group | Actuators - Pressure Flow |
| Actuator diaphragm material | EPDM (Rolling, fibre enforced) |
| Actuator size [cm²] | 32 cm² |
| Application | District heating and cooling |
| Body material | Steel, mat. No. 1.0345, zinc plated |
| China RoHS compliance | Out of scope |
| Contains batteries | No |
| Description | Pressure reduction actuator |
| Diameter [mm] [Max] | 125 mm |
| Diameter [mm] [Min] | 65 mm |
| Differential pressure setting [bar] [Max] | 12 bar |
| Differential pressure setting [bar] [Min] | 3 bar |
| EU RoHS compliance | Out of scope |
| Flow control | No |
| Flow limitation | No |
| Function | Press. reduction controller |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 150 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 30% |
| Mounting version | Flow |
| Operating pressure [bar] [Max] | 16 bar |
| Permissible media | District heating/cooling circulation water |
| Pressure class | PN 16 |
| Pressure controller | Press. reduction controller |
| Pressure nominal [bar] | 16 bar |
| Pressure setting range [bar] [Max] | 12 bar |
| Pressure setting range [bar] [Min] | 3 bar |
| Setting Type | Adjustable |
| Actuator diaphragm material | EPDM (Rolling, fibre enforced) |
| Actuator size [cm²] | 32 cm² |
| Application | District heating and cooling |
| Body material | Steel, mat. No. 1.0345, zinc plated |
| China RoHS compliance | Out of scope |
| Contains batteries | No |
| Description | Pressure reduction actuator |
| Diameter [mm] [Max] | 125 mm |
| Diameter [mm] [Min] | 65 mm |
| Differential pressure setting [bar] [Max] | 12 bar |
| Differential pressure setting [bar] [Min] | 3 bar |
| EU RoHS compliance | Out of scope |
| Flow control | No |
| Flow limitation | No |
| Function | Press. reduction controller |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 150 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 30% |
| Mounting version | Flow |
| Operating pressure [bar] [Max] | 16 bar |
| Permissible media | District heating/cooling circulation water |
| Pressure class | PN 16 |
| Pressure controller | Press. reduction controller |
| Pressure nominal [bar] | 16 bar |
| Pressure setting range [bar] [Max] | 12 bar |
| Pressure setting range [bar] [Min] | 3 bar |
| Setting Type | Adjustable |
DATASHEET - PDF
