DANFOSS HEATING003G5619 DANFOSS HEATING AFP(B) 2 PN40 0,4-1,5 320cm2 red

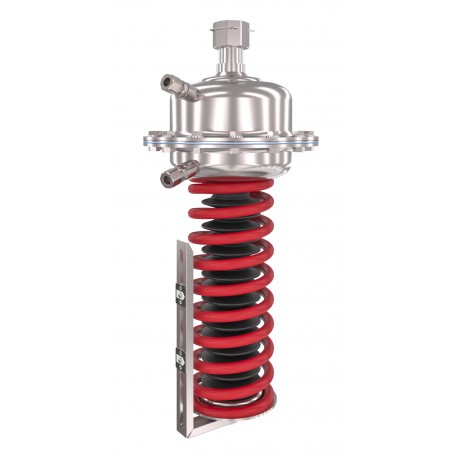

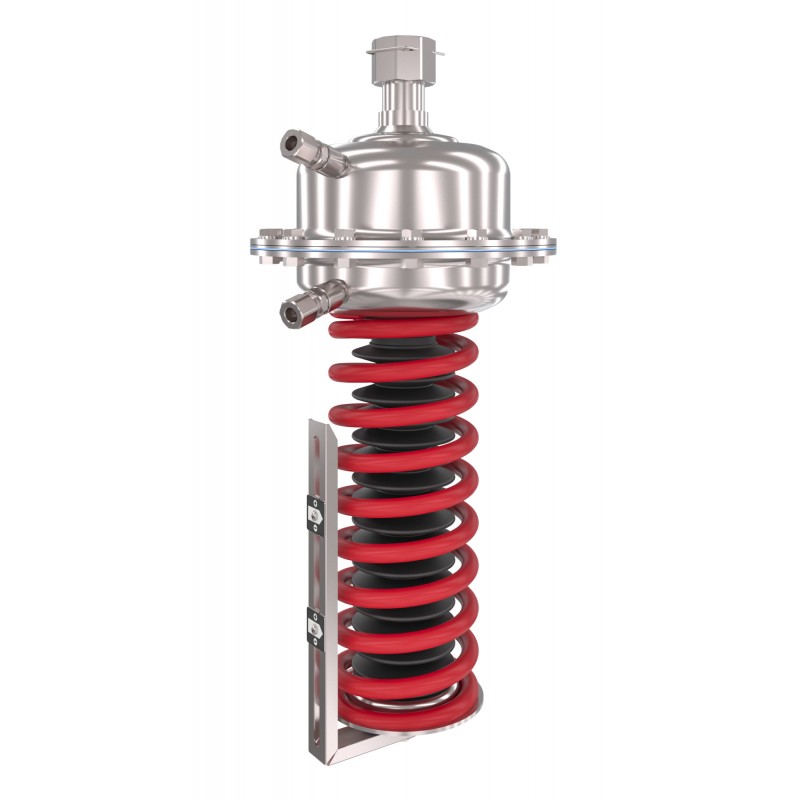

DANFOSS HEATING 003G5619 003G5619 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

003G5619 DANFOSS HEATING AFP(B) 2 PN40 0,4-1,5 320cm2 red

Reference: 003G5619

Manufacturer: DANFOSS HEATING

Description:

AFP(B) 2 PN40 0,4-1,5 320cm2 red
AFP 2 PN40 0,4-1,5 320cm2 red
AFP 2, PN 40, 0.4 bar - 1.5 bar, 320 cm²

Categories:

  • DANFOSS HEATING

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 2.275,26 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Differential pressure actuator

Product details

Gross weight30.5 Kilogram
Net weight21.5 Kilogram
Volume184.623 Liter
EAN5710104523163
TypeAFP 2
Product groupActuators - Pressure Flow
Gross weight30.5 Kilogram
Net weight21.5 Kilogram
Volume184.623 Liter
EAN5710104523163
TypeAFP 2
Product groupActuators - Pressure Flow

Actuator diaphragm materialEPDM (Rolling, fibre enforced)
Actuator size [cm²]320 cm²
Body materialSteel, mat. No. 1.0345, zinc plated
China RoHS complianceOut of scope
Contains batteriesNo
DescriptionDifferential pressure actuator
Diameter [mm] [Max]250 mm
Diameter [mm] [Min]65 mm
Differential pressure setting [bar] [Max]1.5 bar
Differential pressure setting [bar] [Min]0.4 bar
EU RoHS complianceOut of scope
Flow controlNo
Flow limitationNo
FunctionDiff. press. controller
Media pH [Max]10
Media pH [Min]7
Media temperature [°C] [Max]150 °C
Media temperature [°C] [Min]2 °C
Medium alternativeGlycolic water up to 30%
Mounting versionFree
Operating pressure [bar] [Max]40 bar
Permissible mediaDistrict heating/cooling circulation water
Pressure classPN 40
Pressure controllerDifferential pressure controller
Pressure nominal [bar]40 bar
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Setting TypeAdjustable
Actuator diaphragm materialEPDM (Rolling, fibre enforced)
Actuator size [cm²]320 cm²
Body materialSteel, mat. No. 1.0345, zinc plated
China RoHS complianceOut of scope
Contains batteriesNo
DescriptionDifferential pressure actuator
Diameter [mm] [Max]250 mm
Diameter [mm] [Min]65 mm
Differential pressure setting [bar] [Max]1.5 bar
Differential pressure setting [bar] [Min]0.4 bar
EU RoHS complianceOut of scope
Flow controlNo
Flow limitationNo
FunctionDiff. press. controller
Media pH [Max]10
Media pH [Min]7
Media temperature [°C] [Max]150 °C
Media temperature [°C] [Min]2 °C
Medium alternativeGlycolic water up to 30%
Mounting versionFree
Operating pressure [bar] [Max]40 bar
Permissible mediaDistrict heating/cooling circulation water
Pressure classPN 40
Pressure controllerDifferential pressure controller
Pressure nominal [bar]40 bar
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Setting TypeAdjustable

DATASHEET - PDF

Title
Size
Type
003G5619 003G5619 EN_003G5614.pdf
2 Mbytes
PDF CATALOGUE DANFOSS HEATING EN
11 Mbytes
