DANFOSS HEATING003G5609 DANFOSS HEATING AFP 2 PN16 0,4-1,5 320cm2 red

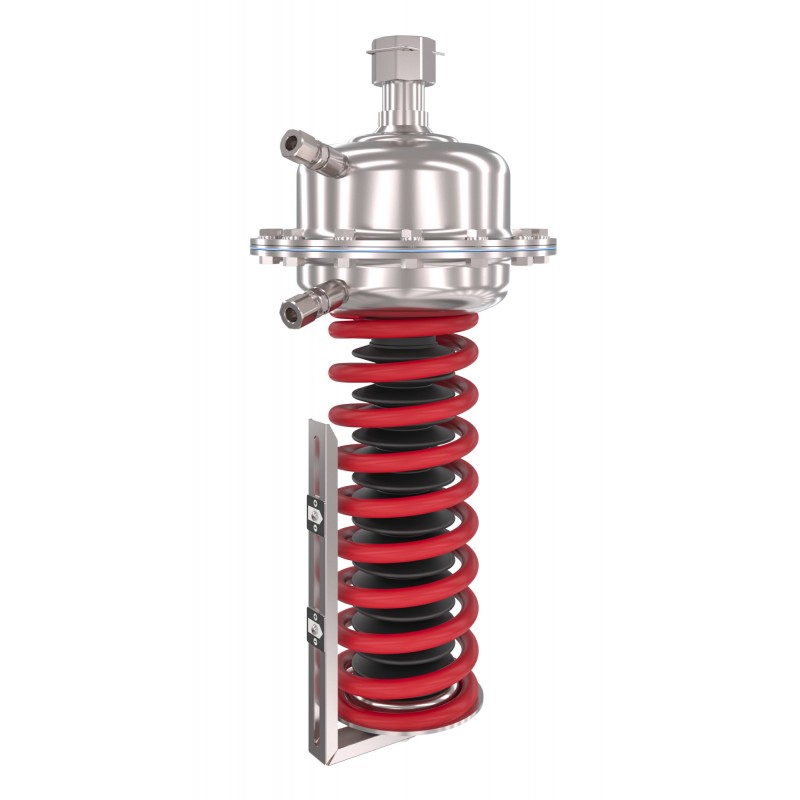

DANFOSS HEATING 003G5609 003G5609 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

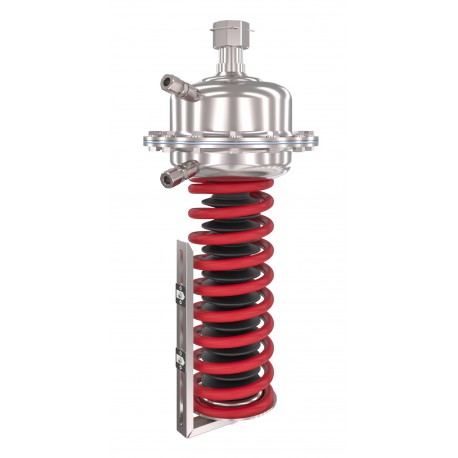

003G5609 DANFOSS HEATING AFP 2 PN16 0,4-1,5 320cm2 red

Reference: 003G5609

Manufacturer: DANFOSS HEATING

Description:

AFP(B) 2 PN16 0,4-1,5 320cm2 red
AFP 2 PN16 0,4-1,5 320cm2 red
AFP 2, PN 16, 0.4 bar - 1.5 bar, 320 cm²

Categories:

  • DANFOSS HEATING

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

MORE INFO

Differential pressure actuator

Product details

Gross weight25.6 Kilogram
Net weight15 Kilogram
Volume191.52 Liter
EAN5710104518206
TypeAFP 2
Product groupActuators - Pressure Flow
Gross weight25.6 Kilogram
Net weight15 Kilogram
Volume191.52 Liter
EAN5710104518206
TypeAFP 2
Product groupActuators - Pressure Flow

Actuator diaphragm materialEPDM (Rolling, fibre enforced)
Actuator size [cm²]320 cm²
Body materialSteel, mat. No. 1.0345, zinc plated
China RoHS complianceOut of scope
Contains batteriesNo
DescriptionDifferential pressure actuator
Diameter [mm] [Max]250 mm
Diameter [mm] [Min]65 mm
Differential pressure setting [bar] [Max]1.5 bar
Differential pressure setting [bar] [Min]0.4 bar
EU RoHS complianceOut of scope
Flow controlNo
Flow limitationNo
FunctionDiff. press. controller
Media pH [Max]10
Media pH [Min]7
Media temperature [°C] [Max]150 °C
Media temperature [°C] [Min]2 °C
Medium alternativeGlycolic water up to 30%
Mounting versionFree
Operating pressure [bar] [Max]16 bar
Permissible mediaDistrict heating/cooling circulation water
Pressure classPN 16
Pressure controllerDifferential pressure controller
Pressure nominal [bar]16 bar
Setting TypeAdjustable
Actuator diaphragm materialEPDM (Rolling, fibre enforced)
Actuator size [cm²]320 cm²
Body materialSteel, mat. No. 1.0345, zinc plated
China RoHS complianceOut of scope
Contains batteriesNo
DescriptionDifferential pressure actuator
Diameter [mm] [Max]250 mm
Diameter [mm] [Min]65 mm
Differential pressure setting [bar] [Max]1.5 bar
Differential pressure setting [bar] [Min]0.4 bar
EU RoHS complianceOut of scope
Flow controlNo
Flow limitationNo
FunctionDiff. press. controller
Media pH [Max]10
Media pH [Min]7
Media temperature [°C] [Max]150 °C
Media temperature [°C] [Min]2 °C
Medium alternativeGlycolic water up to 30%
Mounting versionFree
Operating pressure [bar] [Max]16 bar
Permissible mediaDistrict heating/cooling circulation water
Pressure classPN 16
Pressure controllerDifferential pressure controller
Pressure nominal [bar]16 bar
Setting TypeAdjustable

DATASHEET - PDF

Title
Size
Type
003G5609 003G5609 EN_003G5614.pdf
2 Mbytes
PDF CATALOGUE DANFOSS HEATING EN
11 Mbytes
