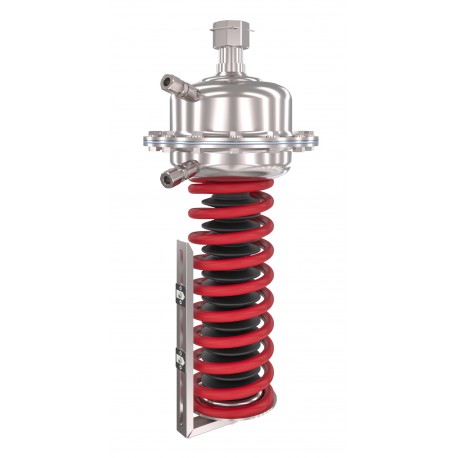

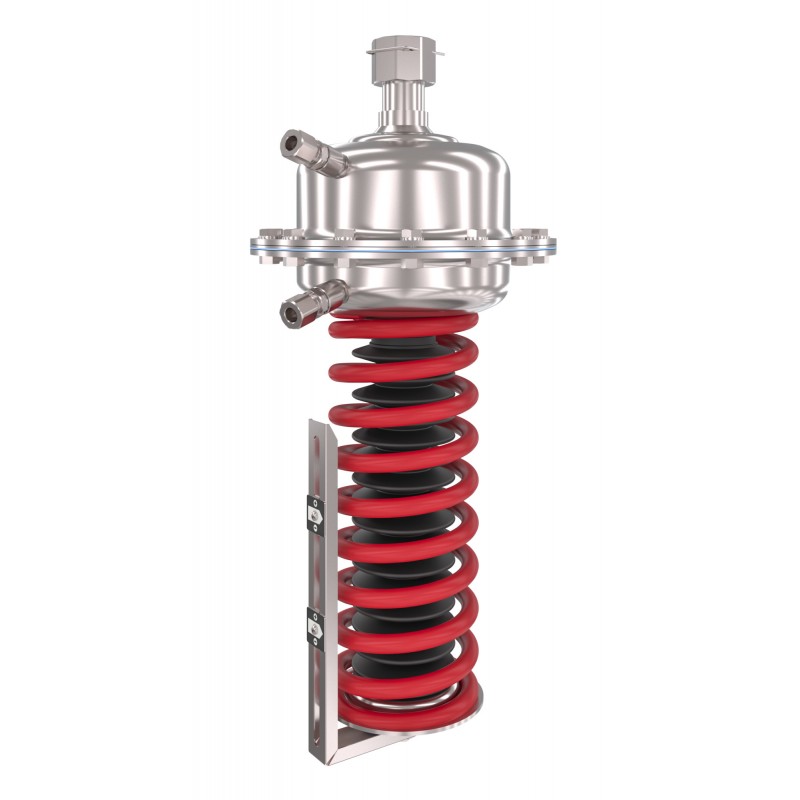

003G5604 DANFOSS HEATING AFP 2 PN16 1,5-5 80cm2 red
003G5604
DANFOSS HEATING
AFP 2 PN16 1,5-5 80cm2 red
AFP 2, PN 16, 1.5 bar - 5 bar, 80 cm²
Home > DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
Best sellers
▲More info
▲Differential pressure actuator
Product details
| Gross weight | 10.38 Kilogram |
| Net weight | 8.5 Kilogram |
| Volume | 50.025 Liter |
| EAN | 5710104096292 |
| Type | AFP 2 |
| Product group | Actuators - Pressure Flow |
| Gross weight | 10.38 Kilogram |
| Net weight | 8.5 Kilogram |
| Volume | 50.025 Liter |
| EAN | 5710104096292 |
| Type | AFP 2 |
| Product group | Actuators - Pressure Flow |
| Actuator diaphragm material | EPDM (Rolling, fibre enforced) |
| Actuator size [cm²] | 80 cm² |
| Body material | Steel, mat. No. 1.0345, zinc plated |
| China RoHS compliance | Out of scope |
| Contains batteries | No |
| Description | Differential pressure actuator |
| Diameter [mm] [Max] | 125 mm |
| Diameter [mm] [Min] | 65 mm |
| Differential pressure setting [bar] [Max] | 5 bar |
| Differential pressure setting [bar] [Min] | 1.5 bar |
| EU RoHS compliance | Out of scope |
| Flow control | No |
| Flow limitation | No |
| Function | Diff. press. controller |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 150 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 30% |
| Mounting version | Free |
| Operating pressure [bar] [Max] | 16 bar |
| Permissible media | District heating/cooling circulation water |
| Pressure class | PN 16 |
| Pressure controller | Differential pressure controller |
| Pressure nominal [bar] | 16 bar |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Setting Type | Adjustable |
| Actuator diaphragm material | EPDM (Rolling, fibre enforced) |
| Actuator size [cm²] | 80 cm² |
| Body material | Steel, mat. No. 1.0345, zinc plated |
| China RoHS compliance | Out of scope |
| Contains batteries | No |
| Description | Differential pressure actuator |
| Diameter [mm] [Max] | 125 mm |
| Diameter [mm] [Min] | 65 mm |
| Differential pressure setting [bar] [Max] | 5 bar |
| Differential pressure setting [bar] [Min] | 1.5 bar |
| EU RoHS compliance | Out of scope |
| Flow control | No |
| Flow limitation | No |
| Function | Diff. press. controller |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 150 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 30% |
| Mounting version | Free |
| Operating pressure [bar] [Max] | 16 bar |
| Permissible media | District heating/cooling circulation water |
| Pressure class | PN 16 |
| Pressure controller | Differential pressure controller |
| Pressure nominal [bar] | 16 bar |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Setting Type | Adjustable |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
| 003G5604 003G5604 EN_003G5614.pdf | 2 Mbytes |
|
