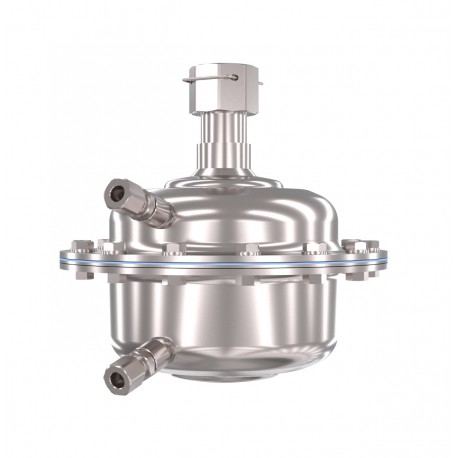

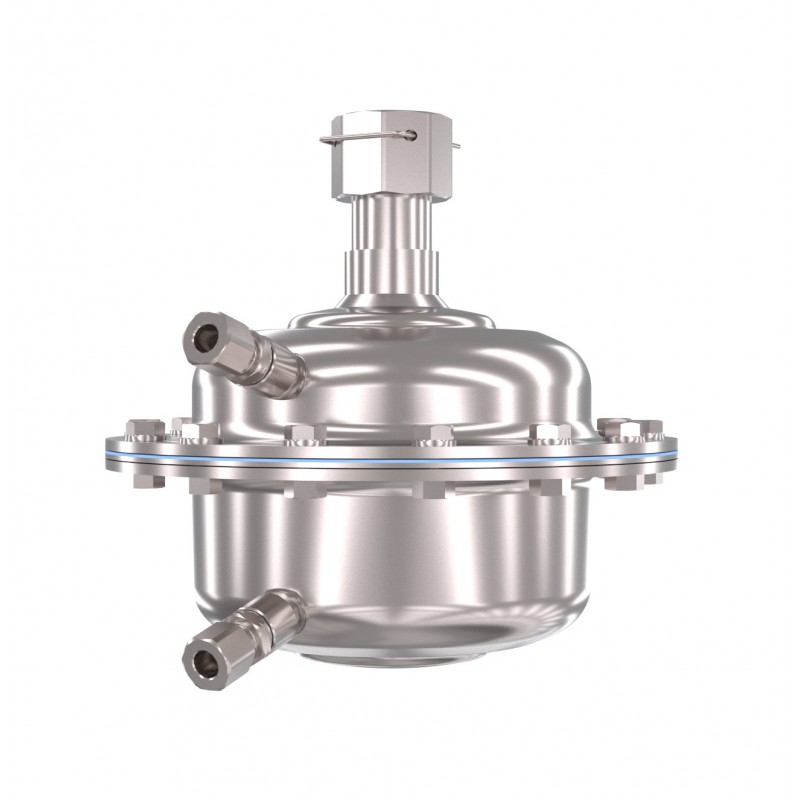

003G5599 DANFOSS HEATING AFQ 2 PN40 0,5 320cm2 int. spring
Reference: 003G5599
Manufacturer: DANFOSS HEATING
Description:
AFQ2/AFPB-F2 PN40 0,5 320cm2 int. spring
AFQ 2 PN40 0,5 320cm2 int. spring
AFQ 2, PN 40, 0.5 bar, 320 cm²
Categories:
- DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
- More Info
- Reviews
* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
MORE INFO
Function: Flow controller
Product details
| Gross weight | 19.857 Kilogram |
| Net weight | 15.5 Kilogram |
| Volume | 44.882 Liter |
| EAN | 5715162374733 |
| Type | AFQ 2 |
| Product group | Actuators - Pressure Flow |
| Gross weight | 19.857 Kilogram |
| Net weight | 15.5 Kilogram |
| Volume | 44.882 Liter |
| EAN | 5715162374733 |
| Type | AFQ 2 |
| Product group | Actuators - Pressure Flow |
| Actuator diaphragm material | EPDM (Rolling, fibre enforced) |
| Actuator size [cm²] | 320 cm² |
| Application | District heating and cooling |
| Body material | Steel, mat. No. 1.0345, zinc plated |
| Contains batteries | No |
| Diameter [mm] [Max] | 250 mm |
| Diameter [mm] [Min] | 65 mm |
| Differential pressure setting [bar] | 0.5 bar |
| Flow control | Yes |
| Flow limitation | No |
| Flow restrictor diff.pressure - dpb [bar] | 0.5 bar |
| Function | Flow controller |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 150 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 30% |
| Mounting version | Free |
| Operating pressure [bar] [Max] | 40 bar |
| Permissible media | District heating/cooling circulation water |
| Pressure class | PN 40 |
| Pressure controller | None |
| Pressure nominal [bar] | 40 bar |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Setting Type | Fixed |
| Actuator diaphragm material | EPDM (Rolling, fibre enforced) |
| Actuator size [cm²] | 320 cm² |
| Application | District heating and cooling |
| Body material | Steel, mat. No. 1.0345, zinc plated |
| Contains batteries | No |
| Diameter [mm] [Max] | 250 mm |
| Diameter [mm] [Min] | 65 mm |
| Differential pressure setting [bar] | 0.5 bar |
| Flow control | Yes |
| Flow limitation | No |
| Flow restrictor diff.pressure - dpb [bar] | 0.5 bar |
| Function | Flow controller |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 150 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 30% |
| Mounting version | Free |
| Operating pressure [bar] [Max] | 40 bar |
| Permissible media | District heating/cooling circulation water |
| Pressure class | PN 40 |
| Pressure controller | None |
| Pressure nominal [bar] | 40 bar |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Setting Type | Fixed |
