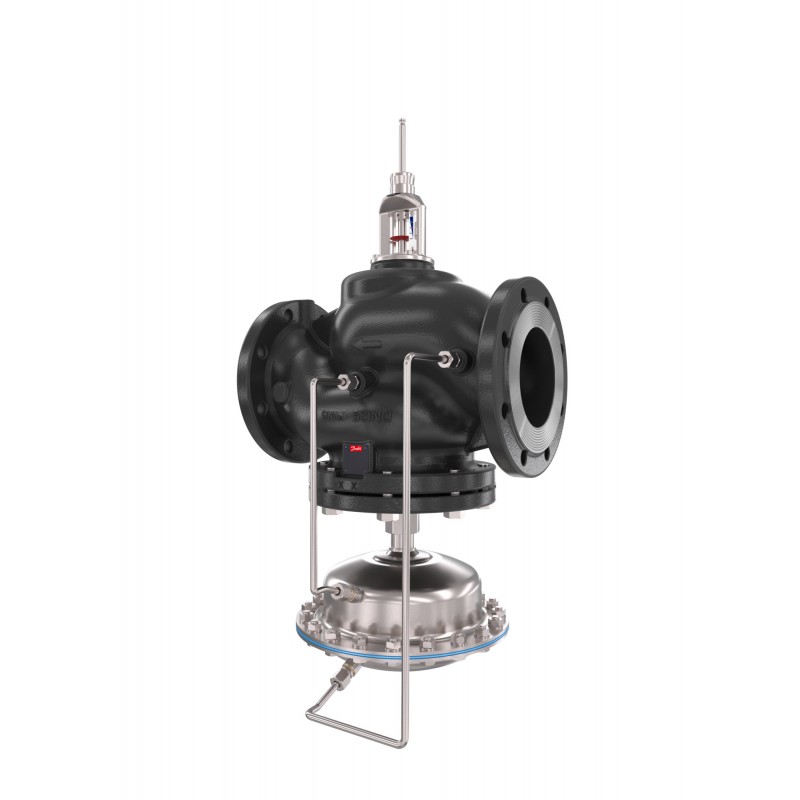

003G5503 DANFOSS HEATING AFQM 2 PN16 80/80 /0,5 flange flow/ret
003G5503
DANFOSS HEATING
AFQM 2 PN16 80/80 /0,5 flange flow/ret
AFQM 2, PN 16, DN 80, Flow rate [m³/h]: 12 - 60, Flange, Mounting version: Free
Home > DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
Best sellers
▲More info
▲Pressure independent control valve
Product details
| Gross weight | 50 Kilogram |
| Net weight | 43.5 Kilogram |
| Volume | 189.24 Liter |
| EAN | 5714279064971 |
| Type | AFQM 2 |
| Product group | Pressure flow controllers |
| Gross weight | 50 Kilogram |
| Net weight | 43.5 Kilogram |
| Volume | 189.24 Liter |
| EAN | 5714279064971 |
| Type | AFQM 2 |
| Product group | Pressure flow controllers |
| Actuator diaphragm material | EPDM (Rolling, fibre enforced) |
| Actuator size [cm²] | 160 cm² |
| Application | District heating and cooling |
| Cavitation factor | 0.55 |
| Cavitation factor 100% | 0.46 |
| Cavitation factor 25% | 0.59 |
| Cavitation factor 50% | 0.59 |
| Cavitation factor 75% | 0.53 |
| China RoHS compliance | Out of scope |
| Connection size | DN 80 |
| Connection types | Flange |
| Contains batteries | No |
| Description | Pressure independent control valve |
| Diameter [mm] | 80 mm |
| Differential pressure range [bar] [Max] | 16 bar |
| EU RoHS compliance | Out of scope |
| Flow control | Yes |
| Flow limitation | Yes |
| Flow rate [m³/h] | 60 m³/h |
| Flow rate [m³/h] [Max] | 60 m³/h |
| Flow rate [m³/h] [Min] | 12 m³/h |
| Flow restrictor diff.pressure - dpb [bar] | 0.5 bar |
| Function | Flow controller with int. control valve |
| Function VSP - P | No |
| Function VSP - Q | No |
| Function VSP - T | No |
| Kvs values [m³/h] | 80 m³/h |
| Leakage rate [% Kvs] | 0.01 |
| Leakage through port max. [% Kvs] | 0.01 |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 150 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 30% |
| Mounting version | Free |
| Number of ports | 2 |
| Operating pressure [bar] [Max] | 16 bar |
| Permissible media | District heating/cooling circulation water |
| PN alternative VSP | 25 |
| Pressure class | PN 16 |
| Pressure controller | No |
| Pressure nominal [bar] | 16 bar |
| Pressure relieve system control valve insert | Chamber |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 60269f9a-5fc7-4ca8-b7ef-496d2cff1391 |
| SCIP dossier product name | AFQM PN 16 |
| Sealing CV material | EPDM |
| Sealing DP material | EPDM |
| Setting Type | Fixed |
| Stem position | Normally open |
| Stroke [mm] | 19 mm |
| Valve body material | Grey cast iron EN-GJL-250 (GG-25) |
| Valve cone CV material | Stainless steel mat. No. 1.4021 |
| Valve cone DP material | Stainless steel mat. No. 1.4021 |
| Valve seat DP material | Stainless steel, mat. No. 1.4021 |
| Valve seat material | Stainless steel, mat. No. 1.4021 |
| Valve size | DN 80 |
| Actuator diaphragm material | EPDM (Rolling, fibre enforced) |
| Actuator size [cm²] | 160 cm² |
| Application | District heating and cooling |
| Cavitation factor | 0.55 |
| Cavitation factor 100% | 0.46 |
| Cavitation factor 25% | 0.59 |
| Cavitation factor 50% | 0.59 |
| Cavitation factor 75% | 0.53 |
| China RoHS compliance | Out of scope |
| Connection size | DN 80 |
| Connection types | Flange |
| Contains batteries | No |
| Description | Pressure independent control valve |
| Diameter [mm] | 80 mm |
| Differential pressure range [bar] [Max] | 16 bar |
| EU RoHS compliance | Out of scope |
| Flow control | Yes |
| Flow limitation | Yes |
| Flow rate [m³/h] | 60 m³/h |
| Flow rate [m³/h] [Max] | 60 m³/h |
| Flow rate [m³/h] [Min] | 12 m³/h |
| Flow restrictor diff.pressure - dpb [bar] | 0.5 bar |
| Function | Flow controller with int. control valve |
| Function VSP - P | No |
| Function VSP - Q | No |
| Function VSP - T | No |
| Kvs values [m³/h] | 80 m³/h |
| Leakage rate [% Kvs] | 0.01 |
| Leakage through port max. [% Kvs] | 0.01 |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 150 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 30% |
| Mounting version | Free |
| Number of ports | 2 |
| Operating pressure [bar] [Max] | 16 bar |
| Permissible media | District heating/cooling circulation water |
| PN alternative VSP | 25 |
| Pressure class | PN 16 |
| Pressure controller | No |
| Pressure nominal [bar] | 16 bar |
| Pressure relieve system control valve insert | Chamber |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 60269f9a-5fc7-4ca8-b7ef-496d2cff1391 |
| SCIP dossier product name | AFQM PN 16 |
| Sealing CV material | EPDM |
| Sealing DP material | EPDM |
| Setting Type | Fixed |
| Stem position | Normally open |
| Stroke [mm] | 19 mm |
| Valve body material | Grey cast iron EN-GJL-250 (GG-25) |
| Valve cone CV material | Stainless steel mat. No. 1.4021 |
| Valve cone DP material | Stainless steel mat. No. 1.4021 |
| Valve seat DP material | Stainless steel, mat. No. 1.4021 |
| Valve seat material | Stainless steel, mat. No. 1.4021 |
| Valve size | DN 80 |
