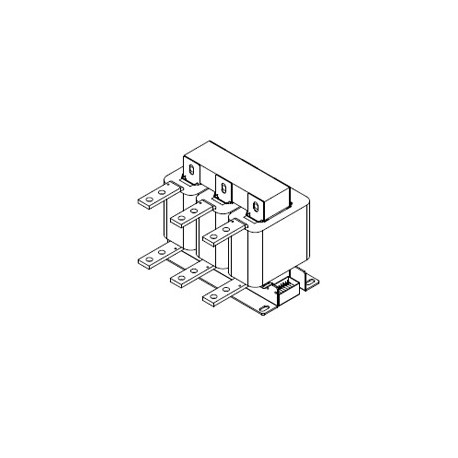

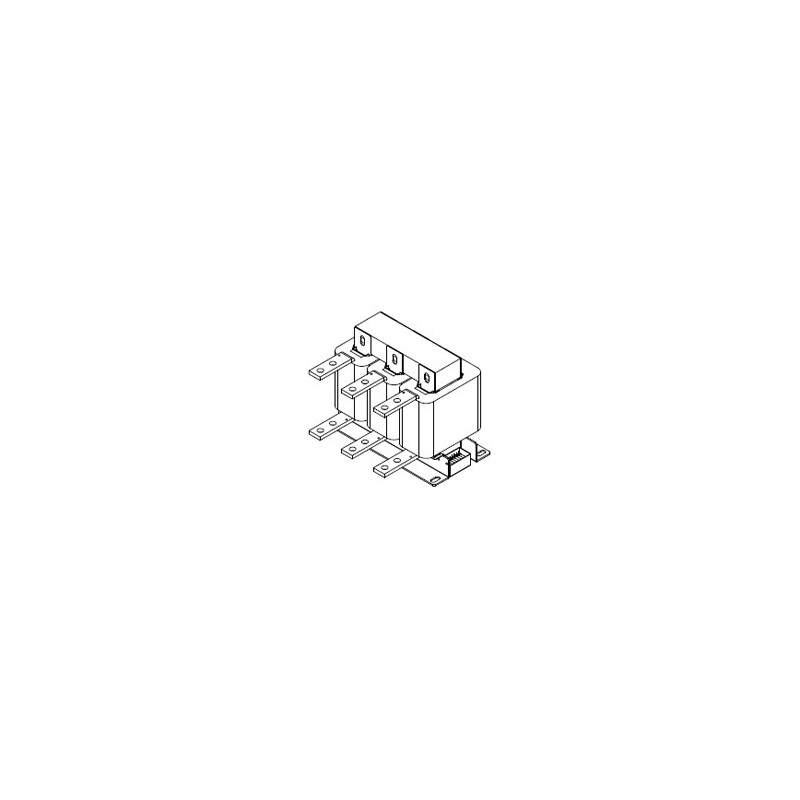

130B2849 MCC102A460TME00B DANFOSS DRIVES VLT FC-Series Output Filter
130B2849
MCC102A460TME00B
DANFOSS DRIVES
VLT FC-Series Output Filter
MCC102A460TME00B
du / dt filter for FC 100 / FC 200 and FC300Degree of protection: IP00Nominal power (380 - 440V): 250 kWNominal power (441 - 500V): 315 kWNominal power (525 - 550V): 200 kWNominal power (551 - 690V): 250 kWMax. Continuous rated current: 480 AMax. Output frequency: 50 HzMax. Power loss: 398 WDimensions HxWxD: 300 x 250 x 235 mmWeight: 36 kg
dU/dt and Sine-Wave Filters
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS DRIVES
Best sellers
▲More info
▲du / dt filter for FC 100 / FC 200 and FC300
Degree of protection: IP00
Nominal power (380 - 440V): 250 kW
Nominal power (441 - 500V): 315 kW
Nominal power (525 - 550V): 200 kW
Nominal power (551 - 690V): 250 kW
Max. Continuous rated current: 480 A
Max. Output frequency: 50 Hz
Max. Power loss: 398 W
Dimensions HxWxD: 300 x 250 x 235 mm
Weight: 36 kg
Product details
| Gross weight | 36 Kilogram |
| Net weight | 36 Kilogram |
| Volume | 127.2 Liter |
| EAN | 5710107608997 |
| Gross weight | 36 Kilogram |
| Net weight | 36 Kilogram |
| Volume | 127.2 Liter |
| EAN | 5710107608997 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG DANFOSS GENERAL EN.pdf | 2 Mbytes |
|
