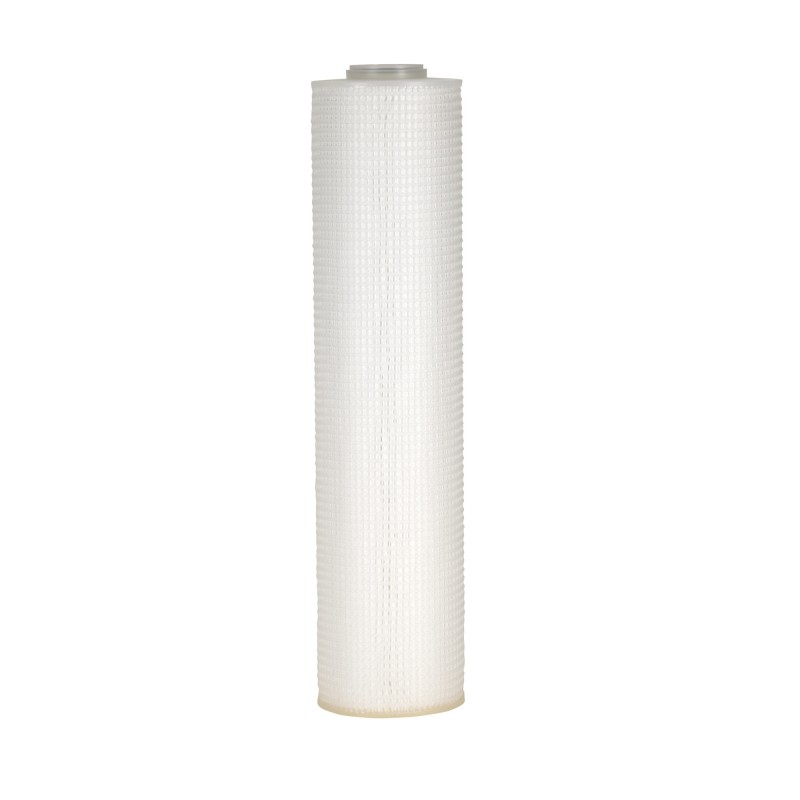

180Z0285 DANFOSS DRIVES Flow [gpm] [Max]: 44.9, Flow [l/min] [Max]: 170, Flow [m³/h] [Max]: 10.2, 10 µ abs, ..
180Z0285
DANFOSS DRIVES
Flow [gpm] [Max]: 44.9, Flow [l/min] [Max]: 170, Flow [m³/h] [Max]: 10.2, 10 µ abs, SOE, Polypropylene
Home > DANFOSS DRIVES
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS DRIVES
Best sellers
▲More info
▲Flow [gpm] [Max]: 44.9, Flow [l/min] [Max]: 170, Flow [m³/h] [Max]: 10.2, 10 µ abs, SOE, Polypropylene
Product details
| Gross weight | 1.271 Kilogram |
| Net weight | 1.048 Kilogram |
| Volume | 8.768 Liter |
| EAN | 5715162682272 |
| Type | Filter element |
| Product group | Accessories |
| Gross weight | 1.271 Kilogram |
| Net weight | 1.048 Kilogram |
| Volume | 8.768 Liter |
| EAN | 5715162682272 |
| Type | Filter element |
| Product group | Accessories |
| CE mark | No |
| Contains batteries | No |
| Description | Filter element type 5 |
| Differential pressure at 24 °C [barg] [Max] | 3 barg |
| Differential pressure at 75 °F [psig] [Max] | 44 psig |
| Effective surface [m2] | 2.45 m² |
| Effective surface [sq.ft.] | 26 ft² |
| Element inner diameter [in] | 1.8 in |
| Element inner diameter [mm] | 46 mm |
| Element length [in] | 20 in |
| Element length [mm] | 508 mm |
| Element outer diameter [in] | 4.5 in |
| Element outer diameter [mm] | 115 mm |
| End sealing | SOE |
| Filtration level (Beta > 5000) | 10 µ abs |
| Fit to housing | 180Z0082 |
| Flow [gpm] [Max] | 44.9 gal/min |
| Flow [l/min] [Max] | 170 l/min |
| Flow [m³/h] [Max] | 10.2 m³/h |
| In scope of WEEE | No |
| Materials Element | Polypropylene |
| Materials End caps | Polypropylene |
| Operating temperature [°C] [max] | 50 °C |
| Operating temperature [°F] [max] | 122 °F |
| Product description | Filters |
| REACH Candidate List substances | No |
| Seal Material | Buna-N |
| Sealing | Inside O-ring |
| Type designation | Filter element |
| UL mark | No |
| CE mark | No |
| Contains batteries | No |
| Description | Filter element type 5 |
| Differential pressure at 24 °C [barg] [Max] | 3 barg |
| Differential pressure at 75 °F [psig] [Max] | 44 psig |
| Effective surface [m2] | 2.45 m² |
| Effective surface [sq.ft.] | 26 ft² |
| Element inner diameter [in] | 1.8 in |
| Element inner diameter [mm] | 46 mm |
| Element length [in] | 20 in |
| Element length [mm] | 508 mm |
| Element outer diameter [in] | 4.5 in |
| Element outer diameter [mm] | 115 mm |
| End sealing | SOE |
| Filtration level (Beta > 5000) | 10 µ abs |
| Fit to housing | 180Z0082 |
| Flow [gpm] [Max] | 44.9 gal/min |
| Flow [l/min] [Max] | 170 l/min |
| Flow [m³/h] [Max] | 10.2 m³/h |
| In scope of WEEE | No |
| Materials Element | Polypropylene |
| Materials End caps | Polypropylene |
| Operating temperature [°C] [max] | 50 °C |
| Operating temperature [°F] [max] | 122 °F |
| Product description | Filters |
| REACH Candidate List substances | No |
| Seal Material | Buna-N |
| Sealing | Inside O-ring |
| Type designation | Filter element |
| UL mark | No |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG DANFOSS GENERAL EN.pdf | 2 Mbytes |
|
