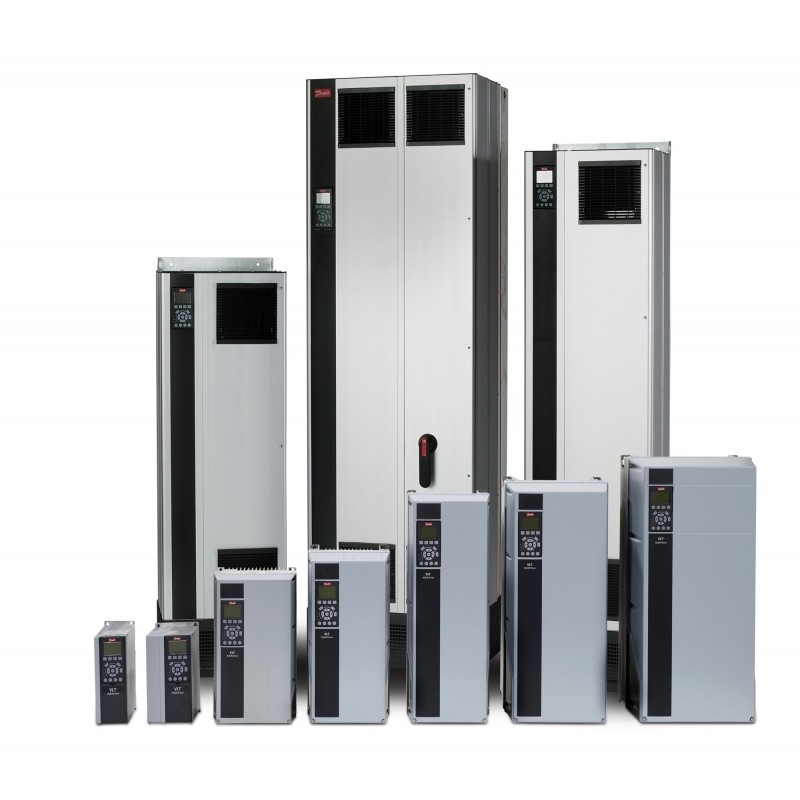

134X7857 DANFOSS DRIVES VLT AQUA Drive FC 202
134X7857
DANFOSS DRIVES
VLT AQUA Drive FC 202
Frequency converterFC-202P15KT4E55H1XGX3SXSXXXXALBXCXXXXDX VLT® AQUA Drive FC-202(P15K) 15 KW / 20 HP, Three phase, 380 - 480 VAC, IP55 / Type 12(H1) RFI Class A1/B (C1)No brake chopperGraphical Loc. Cont. PanelNot coated PCB, Mains Disconnect + FuseLatest release std. SW.Frame: B1PROFINET MCA 120, No B OptionNo C1 option, No D optionOther options according to Model code
VLT AQUA FC202 - DANFOSS DRIVES
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS DRIVES
Best sellers
▲More info
▲Frequency converter
FC-202P15KT4E55H1XGX3SXSXXXXALBXCXXXXDX
VLT® AQUA Drive FC-202
(P15K) 15 KW / 20 HP,
Three phase, 380 - 480 VAC, IP55 / Type 12
(H1) RFI Class A1/B (C1)
No brake chopper
Graphical Loc. Cont. Panel
Not coated PCB, Mains Disconnect + Fuse
Latest release std. SW.
Frame: B1
PROFINET MCA 120, No B Option
No C1 option, No D option
Other options according to Model code
Product details
| Gross weight | 25.14 Kilogram | ||
| Net weight | 21.52 Kilogram | ||
| Volume | 158.268 Liter | ||
| EAN | 5710108140311 |
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | FC- | VLT® AQUA Drive FC- | |
| Series | 202 | 202 | |
| Power Rating | P15K | (P15K) 15 KW / 20 HP | |
| Phase | T | Three phase | |
| Mains Voltage | 4 | 380 - 480 VAC | |
| Enclosure | E55 | IP55 / Type 12 | |
| RFI Filter | H1 | (H1) RFI Class A1/B (C1) | |
| Brake - Safe Stop | X | No brake chopper | |
| LCP | G | Graphical Loc. Cont. Panel | |
| Coating PCB | X | Not coated PCB | |
| Mains Option | 3 | Mains Disconnect + Fuse | |
| Adaptation A | S | Smooth imperial cable entr | |
| Adaptation B | X | No adaptation | |
| Software Release | SXXX | Latest release std. SW. | |
| Software Language Pack | X | Standard Language Pack | |
| A Option | AL | PROFINET MCA 120 | |
| B Option | BX | No B Option | |
| C0 Option MCO | CX | No C0 option | |
| C1 Option | X | No C1 option | |
| C Option Software | XX | No software option | |
| D Option | DX | No D option | |
| Frame Size | B1 | B1 | |
| Typecode Part 1 | FC-202P15KT4E55H1XGX | ||
| Typecode Part 2 | 3SXSXXXXALBXCXXXXDX | ||
| Product Catalog | NO_VIEW | NO VIEW | |
| Variant condition (ref. YV00) | 202_2 4 60530 A_OPT_FC-202P15KT4AL BR_FC-202P15KT4X BR_FC-202P15KT4XH1 B_OPT_FC-202P15KT4BX C0_OPT_FC-202P15KT4CX C1_OPT_FC-202P15KT4X COT_FC-202P15KT4X C_OPT_FC-202P15KT4XX D_OPT_FC-202P15KT4DX ECL_FC-202P15KT4E55 ECL_FC-202P15KT4E55H1 FC-202 FC-202P15KT4 FRAME_B1 HDW21_FC-202P15KT43 HDW21_FC-202P15KT43H1 HDW22_FC-202P15KT4S HDW22_FC-202P15KT4SH1 HDW23_FC-202P15KT4X HDW23_FC-202P15KT4XH1 IN_POWER_GROUP_2 LCP_FC-202P15KT4G P15K POWER_GROUP_2 RFI_FC-202P15KT4H1 RU_POWER_GROUP_1 SV_FC-202P15KT4SXXX SV_FC-202SXXX SV_FC-202SXXXB1 VLT | ||
| Variant condition (Purch) | 202_2 4 60530 A_OPT_FC-202P15KT4AL BR_FC-202P15KT4X BR_FC-202P15KT4XH1 B_OPT_FC-202P15KT4BX C0_OPT_FC-202P15KT4CX C1_OPT_FC-202P15KT4X COT_FC-202P15KT4X C_OPT_FC-202P15KT4XX D_OPT_FC-202P15KT4DX ECL_FC-202P15KT4E55 ECL_FC-202P15KT4E55H1 FC-202 FC-202P15KT4 FRAME_B1 HDW21_FC-202P15KT43 HDW21_FC-202P15KT43H1 HDW22_FC-202P15KT4S HDW22_FC-202P15KT4SH1 HDW23_FC-202P15KT4X HDW23_FC-202P15KT4XH1 IN_POWER_GROUP_2 LCP_FC-202P15KT4G P15K POWER_GROUP_2 RFI_FC-202P15KT4H1 RU_POWER_GROUP_1 SV_FC-202P15KT4SXXX SV_FC-202SXXX SV_FC-202SXXXB1 VLT | ||
| Power 160% (HO) [KW] | 11 | 11 | |
| Power 110% (NO) [KW] | 15 | 15 | |
| Height [mm] | 494,0 | 494,0 | |
| Width w/ no C options [mm] | 243,0 | 243,0 | |
| Depth [mm] | 261,0 | 261,0 | |
| Depth with Option A/B [mm] | 261,0 | 261,0 | |
| kVA | 22.2 | 22.2 | |
| Power Loss NO [W] | 392 | 392 | |
| Power Loss NO [W] | 392 | 392 | |
| Power Loss HO [W] | 291 | 291 | |
| Power Loss HO [W] | 291 | 291 | |
| Continuous Current (NO) [A] | 32 | 32 | |
| Intermittent Current (NO) [A] | 35.2 | 35.2 | |
| Continuous Current (NO) [A] | 27 | 27 | |
| Intermittent Current (NO) [A] | 29.7 | 29.7 | |
| Continuous Current (HO) [A] | 24 | 24 | |
| Intermittent Current (HO) [A] | 38.4 | 38.4 | |
| Continuous Current (HO) [A] | 21 | 21 | |
| Intermittent Current (HO) [A] | 33.6 | 33.6 | |
| Calculated Gross Weight [kg] | 25.14 | ||
| Calculated Net Weight [kg] | 21.52 | ||
| ECCN EU | Y901 | Y901 | |
| ECCN US | 3A999.a | 3A999.a | |
| Vendor | ERR01 | Cannot Determine Vendor | |
| Producing plant | ERR01 | Cannot Determine Vendor | |
| Modelcode01 | FC-202P15KT4E55H1XGX | ||
| Modelcode02 | 3SXSXXXXALBXCXXXXDX | ||
| Delivering plant | ERR01 | ERR01 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF VLT AQUA Drive FC 202 2024 EN.pdf | 51 Mbytes |
|
| PDF CATALOG DANFOSS GENERAL EN.pdf | 2 Mbytes |
|
