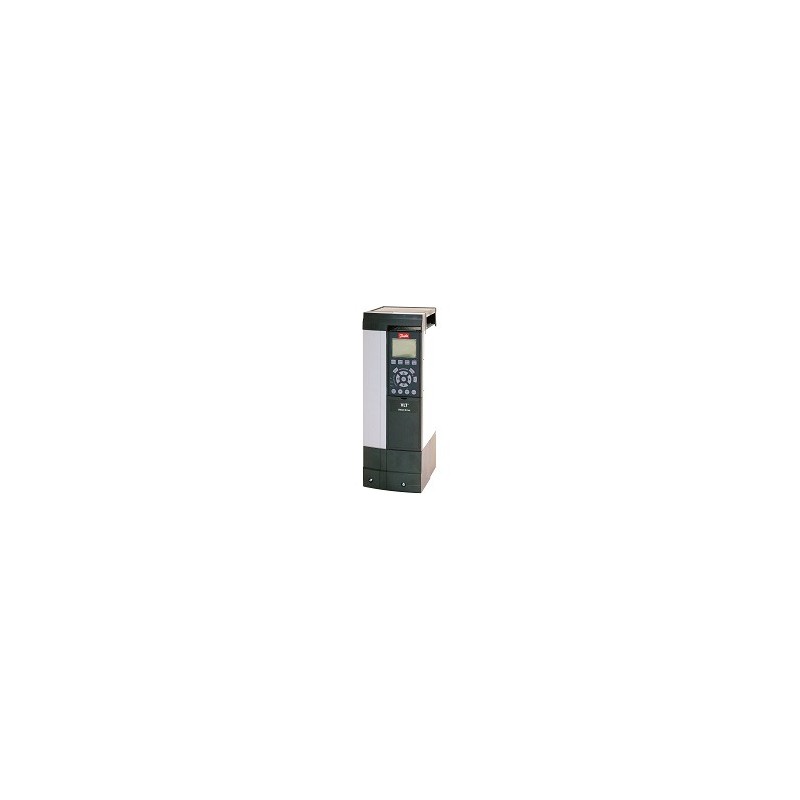

134X7787 DANFOSS DRIVES VLT AQUA Drive FC 202
134X7787
DANFOSS DRIVES
VLT AQUA Drive FC 202
Frequency converterFC-202P1K1S2E21H2TGXXXXSXXXXANBXCXXXXDX VLT® AQUA Drive FC-202(P1K1) 1.1 KW / 1.5 HP, Single phase, 200 - 240 VAC, IP21 / Type 1RFI FilterSafe StopGraphical Loc. Cont. PanelNot coated PCB, No Mains OptionLatest release std. SW.Frame: A3EtherNet/IP MCA 121, No B OptionNo C1 option, No D optionOther options according to Model code
VLT AQUA FC202 - DANFOSS DRIVES
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS DRIVES
Best sellers
▲More info
▲Frequency converter
FC-202P1K1S2E21H2TGXXXXSXXXXANBXCXXXXDX
VLT® AQUA Drive FC-202
(P1K1) 1.1 KW / 1.5 HP,
Single phase, 200 - 240 VAC, IP21 / Type 1
RFI Filter
Safe Stop
Graphical Loc. Cont. Panel
Not coated PCB, No Mains Option
Latest release std. SW.
Frame: A3
EtherNet/IP MCA 121, No B Option
No C1 option, No D option
Other options according to Model code
Product details
| Gross weight | 7.916 Kilogram | ||
| Net weight | 6.91 Kilogram | ||
| Volume | 41.086 Liter | ||
| EAN | 5710108139605 |
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | FC- | VLT® AQUA Drive FC- | |
| Series | 202 | 202 | |
| Power Rating | P1K1 | (P1K1) 1.1 KW / 1.5 HP | |
| Phase | S | Single phase | |
| Mains Voltage | 2 | 200 - 240 VAC | |
| Enclosure | E21 | IP21 / Type 1 | |
| RFI Filter | H2 | RFI Filter | |
| Brake - Safe Stop | T | Safe Stop | |
| LCP | G | Graphical Loc. Cont. Panel | |
| Coating PCB | X | Not coated PCB | |
| Mains Option | X | No Mains Option | |
| Adaptation A | X | Standard Cable Entries | |
| Adaptation B | X | No adaptation | |
| Software Release | SXXX | Latest release std. SW. | |
| Software Language Pack | X | Standard Language Pack | |
| A Option | AN | EtherNet/IP MCA 121 | |
| B Option | BX | No B Option | |
| C0 Option MCO | CX | No C0 option | |
| C1 Option | X | No C1 option | |
| C Option Software | XX | No software option | |
| D Option | DX | No D option | |
| Frame Size | A3 | A3 | |
| Typecode Part 1 | FC-202P1K1S2E21H2TGX | ||
| Typecode Part 2 | XXXSXXXXANBXCXXXXDX | ||
| Product Catalog | NO_VIEW | NO VIEW | |
| Power 110% (NO) [KW] | 1.1 | 1.1 | |
| Height [mm] | 375,0 | 375,0 | |
| Width w/ no C options [mm] | 130,0 | 130,0 | |
| Width w/ two C options [mm] | 190,0 | 190,0 | |
| Depth [mm] | 207,0 | 207,0 | |
| Depth with Option A/B [mm] | 222,0 | 222,0 | |
| kVA | 2.38 | 2.38 | |
| Power Loss NO [W] | 44 | 44 | |
| Continuous Current (NO) [A] | 6.6 | 6.6 | |
| Intermittent Current (NO) [A] | 7.26 | 7.26 | |
| Calculated Gross Weight [kg] | 7.916 | ||
| Calculated Net Weight [kg] | 6.91 | ||
| ECCN EU | Y901 | Y901 | |
| ECCN US | 3A999.a | 3A999.a | |
| Vendor | ERR01 | Cannot Determine Vendor | |
| Producing plant | ERR01 | Cannot Determine Vendor | |
| Modelcode01 | FC-202P1K1S2E21H2TGX | ||
| Modelcode02 | XXXSXXXXANBXCXXXXDX | ||
| Delivering plant | ERR01 | ERR01 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF VLT AQUA Drive FC 202 2024 EN.pdf | 51 Mbytes |
|
| PDF CATALOG DANFOSS GENERAL EN.pdf | 2 Mbytes |
|
