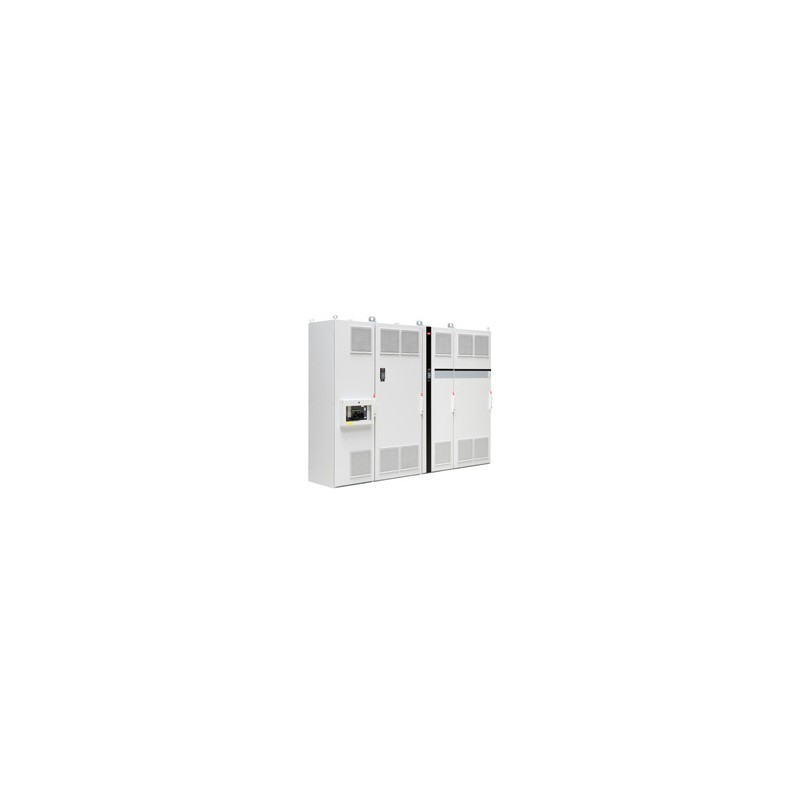

134X7577 DANFOSS DRIVES VLT HVAC Drive FC 102
134X7577
DANFOSS DRIVES
VLT HVAC Drive FC 102
Frequency ConverterFC-102P500T4E54N4XGC3KXSXXXXAXBXCXXXXDX VLT® HVAC Drive FC-102(P500) 500 KW / 650 HP, Three phase, 380 - 480 VAC, (E54) IP54 / Type 12LHD - AAF006 filter + A1 RFINo brake chopperGraphical Loc. Cont. PanelCoated PCB, Mains Disconnect + FuseLatest release std. SW.Frame: F18No A Option, No B OptionNo C1 option, No D optionOther options according to Model Code
VLT FC102 HVAC - DANFOSS DRIVES
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS DRIVES
Best sellers
▲More info
▲Frequency Converter
FC-102P500T4E54N4XGC3KXSXXXXAXBXCXXXXDX
VLT® HVAC Drive FC-102
(P500) 500 KW / 650 HP,
Three phase, 380 - 480 VAC, (E54) IP54 / Type 12
LHD - AAF006 filter + A1 RFI
No brake chopper
Graphical Loc. Cont. Panel
Coated PCB, Mains Disconnect + Fuse
Latest release std. SW.
Frame: F18
No A Option, No B Option
No C1 option, No D option
Other options according to Model Code
Product details
| Gross weight | 1899.3 Kilogram | ||
| Net weight | 1899 Kilogram | ||
| EAN | 5710108137472 |
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | FC- | VLT® HVAC Drive FC- | |
| Series | 102 | 102 | |
| Power Rating | P500 | (P500) 500 KW / 650 HP | |
| Phase | T | Three phase | |
| Mains Voltage | 4 | 380 - 480 VAC | |
| Enclosure | E54 | (E54) IP54 / Type 12 | |
| RFI Filter | N4 | LHD - AAF006 filter + A1 RFI | |
| Brake - Safe Stop | X | No brake chopper | |
| LCP | G | Graphical Loc. Cont. Panel | |
| Coating PCB | C | Coated PCB | |
| Mains Option | 3 | Mains Disconnect + Fuse | |
| Adaptation A | K | Two 2.5-4A man motor star | |
| Adaptation B | X | No adaptation | |
| Software Release | SXXX | Latest release std. SW. | |
| Software Language Pack | X | Standard Language Pack | |
| A Option | AX | No A Option | |
| B Option | BX | No B Option | |
| C0 Option MCO | CX | No C0 option | |
| C1 Option | X | No C1 option | |
| C Option Software | XX | No software option | |
| D Option | DX | No D option | |
| Frame Size | F18 | F18 | |
| Product Catalog | NO_VIEW | NO VIEW | |
| Typecode Part 1 | FC-102P500T4E54N4XGC | ||
| Typecode Part 2 | 3KXSXXXXAXBXCXXXXDX | ||
| Power 110% (NO) [KW] | 500 | 500 | |
| Height [mm] | 2277,0 | 2277,0 | |
| Width w/ no C options [mm] | 2802,0 | 2802,0 | |
| Depth [mm] | 607,0 | 607,0 | |
| Depth with Option A/B [mm] | 607,0 | 607,0 | |
| kVA | 610 | 610 | |
| Power Loss NO [W] | 21909 | 21909 | |
| Power Loss NO [W] | 19896 | 19896 | |
| Continuous Current (NO) [A] | 880 | 880 | |
| Intermittent Current (NO) [A] | 968 | 968 | |
| Continuous Current (NO) [A] | 780 | 780 | |
| Intermittent Current (NO) [A] | 858 | 858 | |
| Calculated Gross Weight [kg] | 1899.3 | ||
| Calculated Net Weight [kg] | 1899 | ||
| ECCN EU | Y901 | Y901 | |
| ECCN US | 3A999.a | 3A999.a | |
| Vendor | ERR01 | Cannot Determine Vendor | |
| Producing plant | ERR01 | Cannot Determine Vendor | |
| Modelcode01 | FC-102P500T4E54N4XGC | ||
| Modelcode02 | 3KXSXXXXAXBXCXXXXDX | ||
| Delivering plant | ERR01 | ERR01 | |
| NB: F-frame platform available | UNTIL DECEMBER 31, 2025 | UNTIL DECEMBER 31, 2025 |
