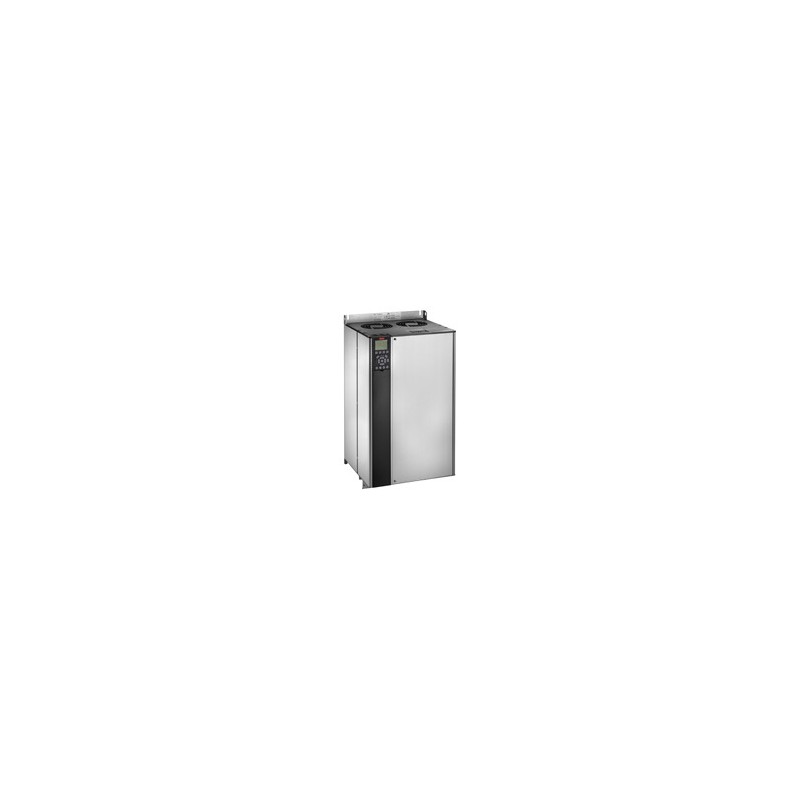

134X3681 DANFOSS DRIVES VLT AQUA Drive FC 202
134X3681
DANFOSS DRIVES
VLT AQUA Drive FC 202
Frequency converterFC-202P90KT4E20H2XGCXXXSXXXXAQB0CXXXXD0 VLT® AQUA Drive FC-202(P90K) 90 KW / 125 HP, Three phase, 380 - 480 VAC, (E20) IP20 / ChassisRFI FilterNo brake chopperGraphical Loc. Cont. PanelCoated PCB, No Mains OptionLatest release std. SW.Frame: C4Modbus TCP MCA 122, MCB-109 I/O, RTC Back-upNo C1 option, MCB-107 24V DC backupOther options according to Model code
VLT AQUA FC202 - DANFOSS DRIVES
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS DRIVES
Best sellers
▲More info
▲Frequency converter
FC-202P90KT4E20H2XGCXXXSXXXXAQB0CXXXXD0
VLT® AQUA Drive FC-202
(P90K) 90 KW / 125 HP,
Three phase, 380 - 480 VAC, (E20) IP20 / Chassis
RFI Filter
No brake chopper
Graphical Loc. Cont. Panel
Coated PCB, No Mains Option
Latest release std. SW.
Frame: C4
Modbus TCP MCA 122, MCB-109 I/O, RTC Back-up
No C1 option, MCB-107 24V DC backup
Other options according to Model code
Product details
| Gross weight | 49.98 Kilogram | ||
| Net weight | 46.89 Kilogram | ||
| Volume | 225.241 Liter | ||
| EAN | 5710108098001 |
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | FC- | VLT® AQUA Drive FC- | |
| Series | 202 | 202 | |
| Power Rating | P90K | (P90K) 90 KW / 125 HP | |
| Phase | T | Three phase | |
| Mains Voltage | 4 | 380 - 480 VAC | |
| Enclosure | E20 | (E20) IP20 / Chassis | |
| RFI Filter | H2 | RFI Filter | |
| Brake - Safe Stop | X | No brake chopper | |
| LCP | G | Graphical Loc. Cont. Panel | |
| Coating PCB | C | Coated PCB | |
| Mains Option | X | No Mains Option | |
| Adaptation A | X | Standard Cable Entries | |
| Adaptation B | X | No adaptation | |
| Software Release | SXXX | Latest release std. SW. | |
| Software Language Pack | X | Standard Language Pack | |
| A Option | AQ | Modbus TCP MCA 122 | |
| B Option | B0 | MCB-109 I/O, RTC Back-up | |
| C0 Option MCO | CX | No C0 option | |
| C1 Option | X | No C1 option | |
| C Option Software | XX | No software option | |
| D Option | D0 | MCB-107 24V DC backup | |
| Frame Size | C4 | C4 | |
| Typecode Part 1 | FC-202P90KT4E20H2XGC | ||
| Typecode Part 2 | XXXSXXXXAQB0CXXXXD0 | ||
| Product Catalog | NO_VIEW | NO VIEW | |
| Power 150% (HO) [KW] | 75 | 75 | |
| Power 110% (NO) [KW] | 90 | 90 | |
| Height [mm] | 660,0 | 660,0 | |
| Width w/ no C options [mm] | 370,0 | 370,0 | |
| Depth [mm] | 333,0 | 333,0 | |
| Depth with Option A/B [mm] | 333,0 | 333,0 | |
| kVA | 123 | 123 | |
| Power Loss NO [W] | 1474 | 1474 | |
| Power Loss NO [W] | 1474 | 1474 | |
| Power Loss HO [W] | 1232 | 1232 | |
| Power Loss HO [W] | 1232 | 1232 | |
| Continuous Current (NO) [A] | 177 | 177 | |
| Intermittent Current (NO) [A] | 195 | 195 | |
| Continuous Current (NO) [A] | 160 | 160 | |
| Intermittent Current (NO) [A] | 176 | 176 | |
| Continuous Current (HO) [A] | 147 | 147 | |
| Intermittent Current (HO) [A] | 220 | 220 | |
| Continuous Current (HO) [A] | 130 | 130 | |
| Intermittent Current (HO) [A] | 195 | 195 | |
| Calculated Gross Weight [kg] | 49.98 | ||
| Calculated Net Weight [kg] | 46.89 | ||
| ECCN EU | Y901 | Y901 | |
| ECCN US | 3A999.a | 3A999.a | |
| Vendor | ERR01 | Cannot Determine Vendor | |
| Producing plant | ERR01 | Cannot Determine Vendor | |
| Modelcode01 | FC-202P90KT4E20H2XGC | ||
| Modelcode02 | XXXSXXXXAQB0CXXXXD0 | ||
| Delivering plant | ERR01 | ERR01 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF VLT AQUA Drive FC 202 2024 EN.pdf | 51 Mbytes |
|
| PDF CATALOG DANFOSS GENERAL EN.pdf | 2 Mbytes |
|
