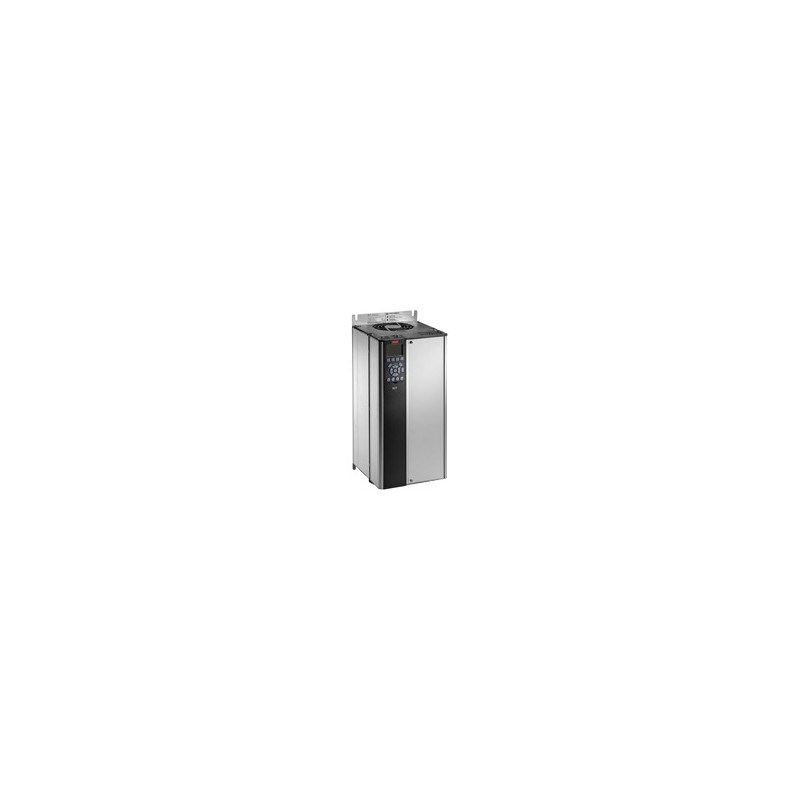

134U3224 FC-102P22KT7E20H5UGCXXXSXXXXA0B2CXXXXDX DANFOSS DRIVES VLT HVAC Drive FC 102
134U3224
FC-102P22KT7E20H5UGCXXXSXXXXA0B2CXXXXDX
DANFOSS DRIVES
VLT HVAC Drive FC 102
Frequency ConverterFC-102P22KT7E20H5UGCXXXSXXXXA0B2CXXXXDX VLT® HVAC Drive FC-102(P22K) 22 KW / 30 HP, Specific Ratings: 18.5kW@525- 550V, 25HP@575V, 22kW@690VThree phase, 525 - 690 VAC *, (E20) IP20 / ChassisMarine,ruggedis RFI A2(C3)Brake chopper + Safe stopGraphical Loc. Cont. PanelCoated PCB, No Mains OptionLatest release std. SW.Frame: B4PROFIBUS DP MCA 101, MCB-112 PTC Therm. CardNo C1 option, No D optionATEX: II (2) G [Ex eb Gb] [Ex db Gb] / II (2) D [Ex tb Db]Other options according to Model Code
VLT FC102 HVAC - DANFOSS DRIVES
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS DRIVES
Best sellers
▲More info
▲Frequency Converter
FC-102P22KT7E20H5UGCXXXSXXXXA0B2CXXXXDX
VLT® HVAC Drive FC-102
(P22K) 22 KW / 30 HP, Specific Ratings: 18.5kW@525- 550V, 25HP@575V, 22kW@690V
Three phase, 525 - 690 VAC *, (E20) IP20 / Chassis
Marine,ruggedis RFI A2(C3)
Brake chopper + Safe stop
Graphical Loc. Cont. Panel
Coated PCB, No Mains Option
Latest release std. SW.
Frame: B4
PROFIBUS DP MCA 101, MCB-112 PTC Therm. Card
No C1 option, No D option
ATEX: II (2) G [Ex eb Gb] [Ex db Gb] / II (2) D [Ex tb Db]
Other options according to Model Code
Product details
| Gross weight | 25.54 Kilogram | ||
| Net weight | 21.84 Kilogram | ||
| Volume | 105.71 Liter | ||
| EAN | 5710107992379 |
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | FC- | VLT® HVAC Drive FC- | |
| Series | 102 | 102 | |
| Power Rating | P22K | (P22K) 22 KW / 30 HP | |
| Phase | T | Three phase | |
| Mains Voltage | 7 | 525 - 690 VAC * | |
| Possible rating issue | WARN01 | Possible Rating Issue: | |
| Enclosure | E20 | (E20) IP20 / Chassis | |
| RFI Filter | H5 | Marine,ruggedis RFI A2(C3) | |
| Brake - Safe Stop | U | Brake chopper + Safe stop | |
| LCP | G | Graphical Loc. Cont. Panel | |
| Coating PCB | C | Coated PCB | |
| Mains Option | X | No Mains Option | |
| Adaptation A | X | Standard Cable Entries | |
| Adaptation B | X | No adaptation | |
| Software Release | SXXX | Latest release std. SW. | |
| Software Language Pack | X | Standard Language Pack | |
| A Option | A0 | PROFIBUS DP MCA 101 | |
| B Option | B2 | MCB-112 PTC Therm. Card | |
| C0 Option MCO | CX | No C0 option | |
| C1 Option | X | No C1 option | |
| C Option Software | XX | No software option | |
| D Option | DX | No D option | |
| Frame Size | B4 | B4 | |
| Product Catalog | NO_VIEW | NO VIEW | |
| Typecode Part 1 | FC-102P22KT7E20H5UGC | ||
| Typecode Part 2 | XXXSXXXXA0B2CXXXXDX | ||
| Power 110% (NO) [KW] | 22 | 22 | |
| Height [mm] | 516,0 | 516,0 | |
| Width w/ no C options [mm] | 229,0 | 229,0 | |
| Depth [mm] | 242,0 | 242,0 | |
| Depth with Option A/B [mm] | 242,0 | 242,0 | |
| kVA | 32.3 | 32.3 | |
| Power Loss NO [W] | 375 | 375 | |
| Power Loss NO [W] | 375 | 375 | |
| Continuous Current (NO) [A] | 28 | 28 | |
| Intermittent Current (NO) [A] | 30.8 | 30.8 | |
| Continuous Current (NO) [A] | 27 | 27 | |
| Intermittent Current (NO) [A] | 29.7 | 29.7 | |
| ATEX Marking 1 | ATEX: II (2) G [Ex eb Gb] [Ex | ATEX: II (2) G [Ex eb Gb] [Ex | |
| ATEX Marking 2 | db Gb] / II (2) D [Ex tb Db] | db Gb] / II (2) D [Ex tb Db] | |
| Power Rating at 525-550V | 18.5kW | 18.5kW | |
| Power Rating at 575V | 25HP | 25HP | |
| Power Rating at 690V | 22kW | 22kW | |
| Calculated Gross Weight [kg] | 25.54 | ||
| Calculated Net Weight [kg] | 21.84 | ||
| ECCN EU | Y901 | Y901 | |
| ECCN US | 3A999.a | 3A999.a | |
| Vendor | ERR01 | Cannot Determine Vendor | |
| Recommended Factory | ERR01 | Cannot Determine Vendor | |
| Modelcode01 | FC-102P22KT7E20H5UGC | ||
| Modelcode02 | XXXSXXXXA0B2CXXXXDX | ||
| Recommended Plant | ERR01 | ERR01 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG DANFOSS FC102 EN.pdf | 11 Mbytes |
|
| PDF CATALOG DANFOSS GENERAL EN.pdf | 2 Mbytes |
|
