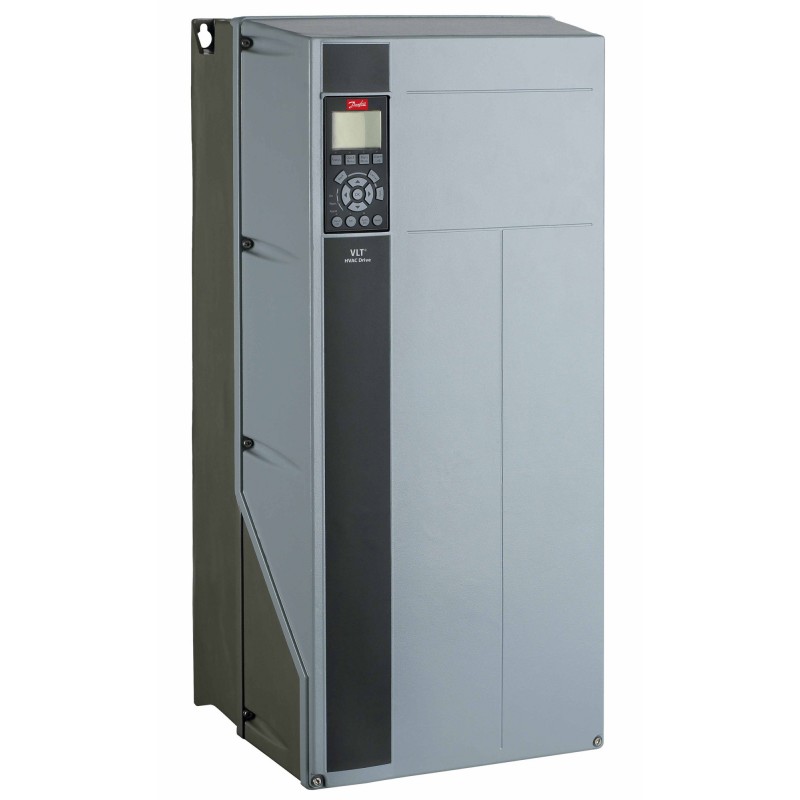

134U2736 DANFOSS DRIVES VLT AQUA Drive FC 202
134U2736
DANFOSS DRIVES
VLT AQUA Drive FC 202
Frequency converterFC-202P37KS4P3RHXXGXXXXSXXXXAXBXCXXXXDX VLT® AQUA Drive FC-202(P37K) 37 KW / 50 HP, Single phase, 380 - 480 VAC, UL TYPE 3R w. BackplateNo RFI FilterNo brake chopperGraphical Loc. Cont. PanelNot coated PCB, No Mains OptionLatest release std. SW.Frame: C2No A Option, No B OptionNo C1 option, No D optionOther options according to Model code
VLT AQUA FC202 - DANFOSS DRIVES
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS DRIVES
Best sellers
▲More info
▲Frequency converter
FC-202P37KS4P3RHXXGXXXXSXXXXAXBXCXXXXDX
VLT® AQUA Drive FC-202
(P37K) 37 KW / 50 HP,
Single phase, 380 - 480 VAC, UL TYPE 3R w. Backplate
No RFI Filter
No brake chopper
Graphical Loc. Cont. Panel
Not coated PCB, No Mains Option
Latest release std. SW.
Frame: C2
No A Option, No B Option
No C1 option, No D option
Other options according to Model code
Product details
| Gross weight | 60.89 Kilogram | ||
| Net weight | 57.55 Kilogram | ||
| Volume | 248.053 Liter | ||
| EAN | 5710107987375 |
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | FC- | VLT® AQUA Drive FC- | |
| Series | 202 | 202 | |
| Power Rating | P37K | (P37K) 37 KW / 50 HP | |
| Phase | S | Single phase | |
| Mains Voltage | 4 | 380 - 480 VAC | |
| Enclosure | P3R | UL TYPE 3R w. Backplate | |
| RFI Filter | HX | No RFI Filter | |
| Brake - Safe Stop | X | No brake chopper | |
| LCP | G | Graphical Loc. Cont. Panel | |
| Coating PCB | X | Not coated PCB | |
| Mains Option | X | No Mains Option | |
| Adaptation A | X | Standard Cable Entries | |
| Adaptation B | X | No adaptation | |
| Software Release | SXXX | Latest release std. SW. | |
| Software Language Pack | X | Standard Language Pack | |
| A Option | AX | No A Option | |
| B Option | BX | No B Option | |
| C0 Option MCO | CX | No C0 option | |
| C1 Option | X | No C1 option | |
| C Option Software | XX | No software option | |
| D Option | DX | No D option | |
| Frame Size | C2 | C2 | |
| Typecode Part 1 | FC-202P37KS4P3RHXXGX | ||
| Typecode Part 2 | XXXSXXXXAXBXCXXXXDX | ||
| Product Catalog | NO_VIEW | NO VIEW | |
| Power 110% (NO) [KW] | 37 | 37 | |
| Height [mm] | 780,0 | 780,0 | |
| Width w/ no C options [mm] | 370,0 | 370,0 | |
| Depth [mm] | 332,0 | 332,0 | |
| Depth with Option A/B [mm] | 332,0 | 332,0 | |
| kVA | 50.6 | 50.6 | |
| Power Loss NO [W] | 1480 | 1480 | |
| Power Loss NO [W] | 1480 | 1480 | |
| Continuous Current (NO) [A] | 73 | 73 | |
| Intermittent Current (NO) [A] | 80.3 | 80.3 | |
| Calculated Gross Weight [kg] | 60.89 | ||
| Calculated Net Weight [kg] | 57.55 | ||
| ECCN EU | Y901 | Y901 | |
| ECCN US | 3A999.a | 3A999.a | |
| Vendor | ERR01 | Cannot Determine Vendor | |
| Producing plant | ERR01 | Cannot Determine Vendor | |
| Modelcode01 | FC-202P37KS4P3RHXXGX | ||
| Modelcode02 | XXXSXXXXAXBXCXXXXDX | ||
| Delivering plant | ERR01 | ERR01 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF VLT AQUA Drive FC 202 2024 EN.pdf | 51 Mbytes |
|
| PDF CATALOG DANFOSS GENERAL EN.pdf | 2 Mbytes |
|
