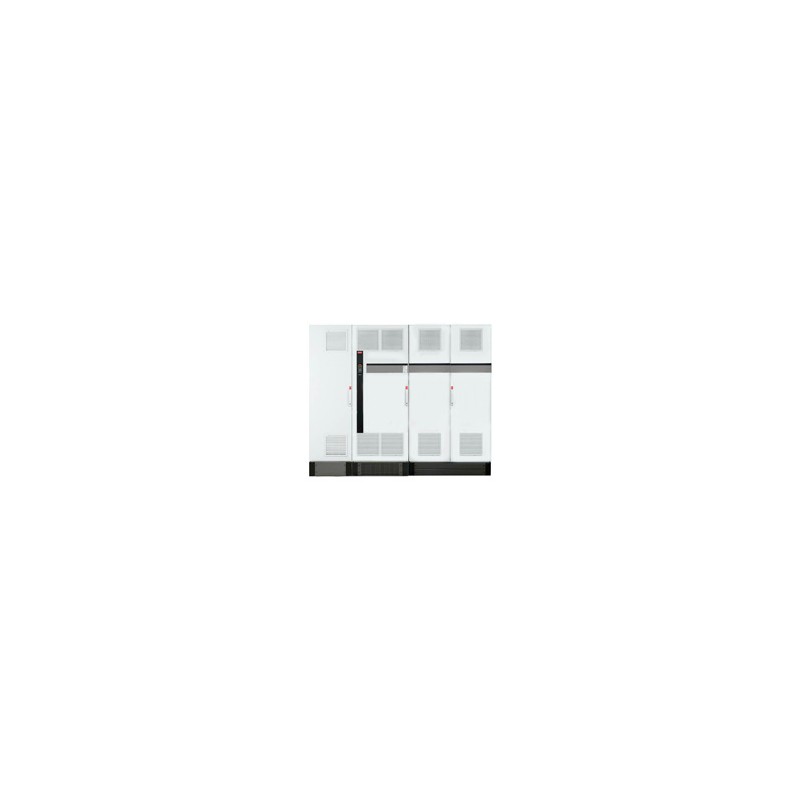

134U0117 DANFOSS DRIVES VLT AQUA Drive FC-202
134U0117
DANFOSS DRIVES
VLT AQUA Drive FC-202
Frequency converterFC-202P1M4T7R2XB2XGC3MKSXXXXAXB4CXXXXDX VLT® AQUA Drive FC-202(P1M4) 1.4 MW / 1900 HP, Specific Ratings: 1100kW@525- 550V, 1550HP@575V, 1400kW@690VThree phase, 525 - 690 VAC *, IP21+Heat+Light 230V Pwr12 Pulse + Class A2 RFINo brake chopperGraphical Loc. Cont. PanelCoated PCB, Mains Disconnect + FuseLatest release std. SW.Frame: F13No A Option, MCB-114 VLT Sensor InputNo C1 option, No D optionOther options according to Model code
VLT AQUA FC202 - DANFOSS DRIVES
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS DRIVES
Best sellers
▲More info
▲Frequency converter
FC-202P1M4T7R2XB2XGC3MKSXXXXAXB4CXXXXDX
VLT® AQUA Drive FC-202
(P1M4) 1.4 MW / 1900 HP, Specific Ratings: 1100kW@525- 550V, 1550HP@575V, 1400kW@690V
Three phase, 525 - 690 VAC *, IP21+Heat+Light 230V Pwr
12 Pulse + Class A2 RFI
No brake chopper
Graphical Loc. Cont. Panel
Coated PCB, Mains Disconnect + Fuse
Latest release std. SW.
Frame: F13
No A Option, MCB-114 VLT Sensor Input
No C1 option, No D option
Other options according to Model code
Product details
| Gross weight | 1037.3 Kilogram | ||
| Net weight | 1037 Kilogram | ||
| EAN | 5710107961207 |
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | FC- | VLT® AQUA Drive FC- | |
| Series | 202 | 202 | |
| Power Rating | P1M4 | (P1M4) 1.4 MW / 1900 HP | |
| Phase | T | Three phase | |
| Mains Voltage | 7 | 525 - 690 VAC * | |
| Possible rating issue | WARN01 | Possible Rating Issue: | |
| Enclosure | R2X | IP21+Heat+Light 230V Pwr | |
| RFI Filter | B2 | 12 Pulse + Class A2 RFI | |
| Brake - Safe Stop | X | No brake chopper | |
| LCP | G | Graphical Loc. Cont. Panel | |
| Coating PCB | C | Coated PCB | |
| Mains Option | 3 | Mains Disconnect + Fuse | |
| Adaptation A | M | Two 6.3-10A man motor star | |
| Adaptation B | K | F Frame Common Motor Term | |
| Software Release | SXXX | Latest release std. SW. | |
| Software Language Pack | X | Standard Language Pack | |
| A Option | AX | No A Option | |
| B Option | B4 | MCB-114 VLT Sensor Input | |
| C0 Option MCO | CX | No C0 option | |
| C1 Option | X | No C1 option | |
| C Option Software | XX | No software option | |
| D Option | DX | No D option | |
| Frame Size | F13 | F13 | |
| Typecode Part 1 | FC-202P1M4T7R2XB2XGC | ||
| Typecode Part 2 | 3MKSXXXXAXB4CXXXXDX | ||
| Product Catalog | NO_VIEW | NO VIEW | |
| Height [mm] | 2280,0 | 2280,0 | |
| Width w/ no C options [mm] | 2802,0 | 2802,0 | |
| Depth [mm] | 607,0 | 607,0 | |
| Depth with Option A/B [mm] | 607,0 | 607,0 | |
| Power Loss NO [W] | 18536 | 18536 | |
| Power Loss NO [W] | 19247 | 19247 | |
| Power Loss HO [W] | 16089 | 16089 | |
| Power Loss HO [W] | 16719 | 16719 | |
| Power Rating at 525-550V | 1100kW | 1100kW | |
| Power Rating at 575V | 1550HP | 1550HP | |
| Power Rating at 690V | 1400kW | 1400kW | |
| Calculated Gross Weight [kg] | 1037.3 | ||
| Calculated Net Weight [kg] | 1037 | ||
| ECCN EU | Y901 | Y901 | |
| ECCN US | 3A999.a | 3A999.a | |
| Vendor | ERR01 | Cannot Determine Vendor | |
| Producing plant | ERR01 | Cannot Determine Vendor | |
| Modelcode01 | FC-202P1M4T7R2XB2XGC | ||
| Modelcode02 | 3MKSXXXXAXB4CXXXXDX | ||
| Delivering plant | ERR01 | ERR01 | |
| NB: F-frame platform available | UNTIL DECEMBER 31, 2025 | UNTIL DECEMBER 31, 2025 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF VLT AQUA Drive FC 202 2024 EN.pdf | 51 Mbytes |
|
| PDF CATALOG DANFOSS GENERAL EN.pdf | 2 Mbytes |
|
