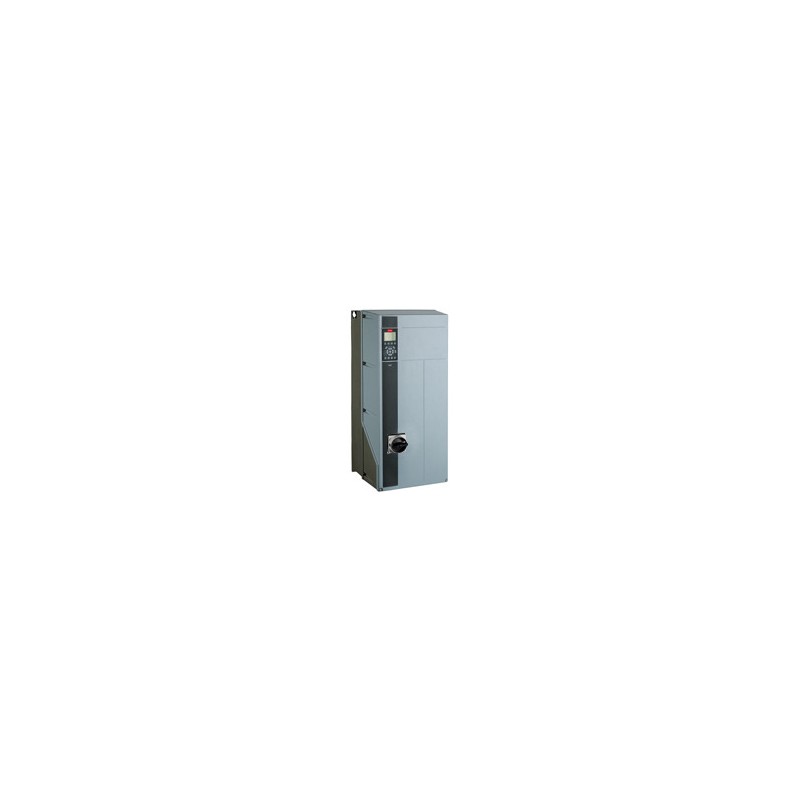

134N5069 DANFOSS DRIVES VLT AQUA Drive FC 202
134N5069
DANFOSS DRIVES
VLT AQUA Drive FC 202
Frequency converter. FC-202P37KT2E66H2XGX3XXSXXXXAXBXCXXXXDX. VLT® AQUA Drive FC-202. (P37K) 37 KW / 50 HP, Three phase. 200 - 240 VAC, (E66) IP66 / NEMA 4X. RFI Filter. No brake chopper. Graphical Loc. Cont. Panel. Not coated PCB, Mains Disconnect + Fuse. Latest release std. SW.. Frame: C2. No C1 option, No D option. No A Option, No B Option. Other options according to Model code
VLT AQUA FC202 - DANFOSS DRIVES
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS DRIVES
More info
▲Product details
| Gross weight | 61.9 kg | ||
| Net weight | 61.6 kg | ||
| Volume | 0 l | ||
| EAN | 5710107903290 |
VLT® AQUA DRIVE FC 200 SERIES
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | FC- | VLT® AQUA Drive FC- | |
| Series | 202 | 202 | |
| Power Rating | P37K | (P37K) 37 KW / 50 HP | |
| Phase | T | Three phase | |
| Mains Voltage | 2 | 200 - 240 VAC | |
| Enclosure | E66 | (E66) IP66 / NEMA 4X | |
| RFI Filter | H2 | RFI Filter | |
| Brake - Safe Stop | X | No brake chopper | |
| LCP | G | Graphical Loc. Cont. Panel | |
| Coating PCB | X | Not coated PCB | |
| Mains Option | 3 | Mains Disconnect + Fuse | |
| Adaptation A | X | Standard Cable Entries | |
| Adaptation B | X | No adaptation | |
| Software Release | SXXX | Latest release std. SW. | |
| Software Language Pack | X | Standard Language Pack | |
| A Option | AX | No A Option | |
| B Option | BX | No B Option | |
| C0 Option MCO | CX | No C0 option | |
| C1 Option | X | No C1 option | |
| C Option Software | XX | No software option | |
| D Option | DX | No D option | |
| Frame Size | C2 | C2 | |
| Typecode Part 1 | FC-202P37KT2E66H2XGX | ||
| Typecode Part 2 | 3XXSXXXXAXBXCXXXXDX | ||
| Product Catalog | NO_VIEW | NO VIEW | |
| Power 150% (HO) [KW] | 30 | ||
| Power 110% (NO) [KW] | 37 | ||
| kVA | 51.5 | ||
| Power Loss NO [W] | 1353 | ||
| Power Loss HO [W] | 1143 | ||
| Continuous Current (NO) [A] | 143 | ||
| Intermittent Current (NO) [A] | 157 | ||
| Calculated Gross Weight [kg] | 61.9 | ||
| Calculated Net Weight [kg] | 61.6 | ||
| Vendor | ERR01 | Cannot Determine Vendor | |
| Recommended Factory | ERR01 | Cannot Determine Vendor | |
| Modelcode01 | FC-202P37KT2E66H2XGX | ||
| Modelcode02 | 3XXSXXXXAXBXCXXXXDX | ||
| Recommended Plant | ERR01 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG DANFOSS FC202 EN.pdf | 800 Kbytes |
|
