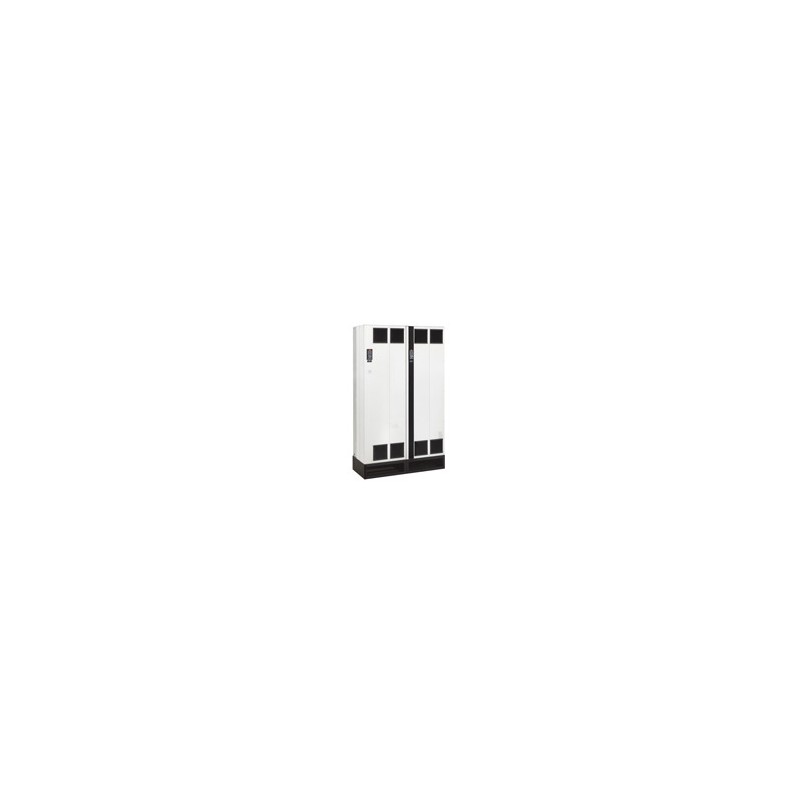

134L9620 DANFOSS DRIVES VLT HVAC Drive FC 102
134L9620
DANFOSS DRIVES
VLT HVAC Drive FC 102
Frequency ConverterFC-102P315T4E5MN4XGC5XXSXXXXAXBKCXXXXD0 VLT® HVAC Drive FC-102(P315) 315 KW / 450 HP, Three phase, 380 - 480 VAC, IP54/Type 12+main shieldLHD - AAF006 filter + A1 RFINo brake chopperGraphical Loc. Cont. PanelCoated PCB, Disconnect + Fuse + LoadLatest release std. SW.Frame: E9No A Option, MCB-101 General purp. I/ONo C1 option, MCB-107 24V DC backupOther options according to Model Code
VLT FC102 HVAC - DANFOSS DRIVES
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS DRIVES
Best sellers
▲More info
▲Frequency Converter
FC-102P315T4E5MN4XGC5XXSXXXXAXBKCXXXXD0
VLT® HVAC Drive FC-102
(P315) 315 KW / 450 HP,
Three phase, 380 - 480 VAC, IP54/Type 12+main shield
LHD - AAF006 filter + A1 RFI
No brake chopper
Graphical Loc. Cont. Panel
Coated PCB, Disconnect + Fuse + Load
Latest release std. SW.
Frame: E9
No A Option, MCB-101 General purp. I/O
No C1 option, MCB-107 24V DC backup
Other options according to Model Code
Product details
| Gross weight | 263.3 Kilogram | ||
| Net weight | 263 Kilogram | ||
| EAN | 5710107848393 |
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | FC- | VLT® HVAC Drive FC- | |
| Series | 102 | 102 | |
| Power Rating | P315 | (P315) 315 KW / 450 HP | |
| Phase | T | Three phase | |
| Mains Voltage | 4 | 380 - 480 VAC | |
| Enclosure | E5M | IP54/Type 12+main shield | |
| RFI Filter | N4 | LHD - AAF006 filter + A1 RFI | |
| Brake - Safe Stop | X | No brake chopper | |
| LCP | G | Graphical Loc. Cont. Panel | |
| Coating PCB | C | Coated PCB | |
| Mains Option | 5 | Disconnect + Fuse + Load | |
| Adaptation A | X | Standard Cable Entries | |
| Adaptation B | X | No adaptation | |
| Software Release | SXXX | Latest release std. SW. | |
| Software Language Pack | X | Standard Language Pack | |
| A Option | AX | No A Option | |
| B Option | BK | MCB-101 General purp. I/O | |
| C0 Option MCO | CX | No C0 option | |
| C1 Option | X | No C1 option | |
| C Option Software | XX | No software option | |
| D Option | D0 | MCB-107 24V DC backup | |
| Frame Size | E9 | E9 | |
| Product Catalog | NO_VIEW | NO VIEW | |
| Typecode Part 1 | FC-102P315T4E5MN4XGC | ||
| Typecode Part 2 | 5XXSXXXXAXBKCXXXXD0 | ||
| Power 110% (NO) [KW] | 315 | 315 | |
| Height [mm] | 2000,0 | 2000,0 | |
| Width w/ no C options [mm] | 1200,0 | 1200,0 | |
| Depth [mm] | 500,0 | 500,0 | |
| Depth with Option A/B [mm] | 500,0 | 500,0 | |
| kVA | 416 | 416 | |
| Power Loss NO [W] | 14051 | 14051 | |
| Power Loss NO [W] | 12936 | 12936 | |
| Continuous Current (NO) [A] | 600 | 600 | |
| Intermittent Current (NO) [A] | 660 | 660 | |
| Continuous Current (NO) [A] | 540 | 540 | |
| Intermittent Current (NO) [A] | 594 | 594 | |
| Calculated Gross Weight [kg] | 676.3 | ||
| Calculated Net Weight [kg] | 676 | ||
| ECCN EU | Y901 | Y901 | |
| ECCN US | 3A999.a | 3A999.a | |
| Vendor | ERR01 | Cannot Determine Vendor | |
| Producing plant | ERR01 | Cannot Determine Vendor | |
| Modelcode01 | FC-102P315T4E5MN4XGC | ||
| Modelcode02 | 5XXSXXXXAXBKCXXXXD0 | ||
| Delivering plant | ERR01 | ERR01 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG DANFOSS FC102 EN.pdf | 11 Mbytes |
|
| PDF CATALOG DANFOSS GENERAL EN.pdf | 2 Mbytes |
|
