> DANFOSS DRIVES>VLT AQUA FC202 - DANFOSS DRIVES>134L0049 DANFOSS DRIVES VLT AQUA Drive FC-202
Previous Product Next Product

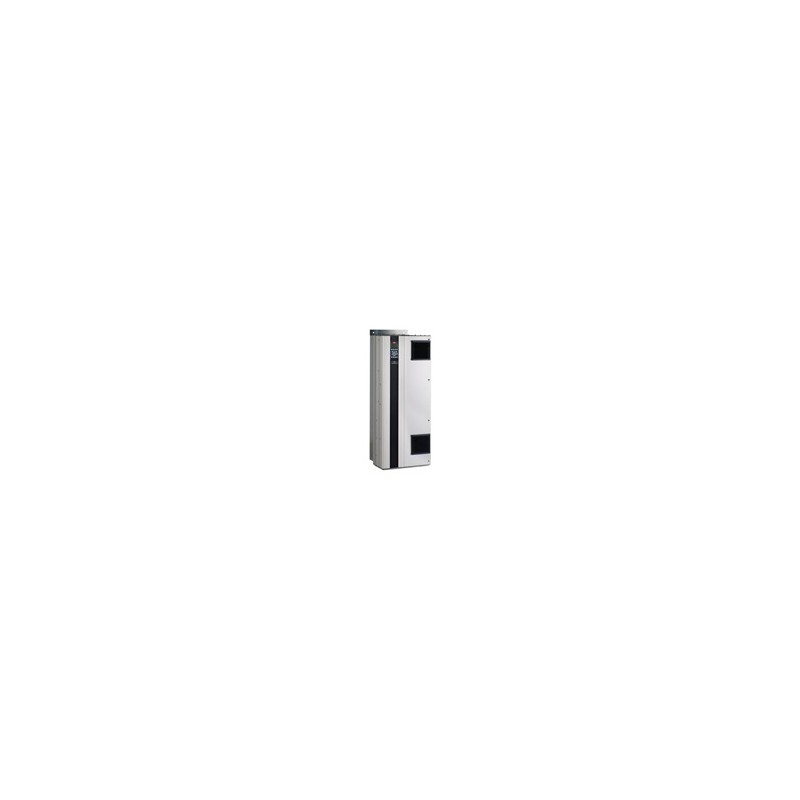

134L0049 DANFOSS DRIVES VLT AQUA Drive FC-202 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

134L0049 DANFOSS DRIVES VLT AQUA Drive FC-202

134L0049

DANFOSS DRIVES

VLT AQUA Drive FC-202

Frequency converterFC-202N250T4E54H4TGCXXXSXXXXA0BKCXXXXD0 VLT® AQUA Drive FC-202(N250) 250 KW / 350 HP, Three phase, 380 - 480 VAC, (E54) IP54 / Type 12RFI class A1 (C2)Safe StopGraphical Loc. Cont. PanelCoated PCB, No Mains OptionLatest release std. SW.Frame: D2HPROFIBUS DP MCA 101, MCB-101 General purp. I/ONo C1 option, MCB-107 24V DC backupOther options according to Model code

More details


VLT AQUA FC202 - DANFOSS DRIVES

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS DRIVES

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Frequency converter
FC-202N250T4E54H4TGCXXXSXXXXA0BKCXXXXD0

VLT® AQUA Drive FC-202
(N250) 250 KW / 350 HP,
Three phase, 380 - 480 VAC, (E54) IP54 / Type 12
RFI class A1 (C2)
Safe Stop
Graphical Loc. Cont. Panel
Coated PCB, No Mains Option
Latest release std. SW.
Frame: D2H
PROFIBUS DP MCA 101, MCB-101 General purp. I/O
No C1 option, MCB-107 24V DC backup

Other options according to Model code

Product details

Gross weight151 Kilogram
Net weight151 Kilogram
Volume370.188 Liter
EAN5710107751938

Product View (Switch)GLBLGlobal (Standard)
Product GroupFC-VLT® AQUA Drive FC-
Series202202
Power RatingN250(N250) 250 KW / 350 HP
PhaseTThree phase
Mains Voltage4380 - 480 VAC
EnclosureE54(E54) IP54 / Type 12
RFI FilterH4RFI class A1 (C2)
Brake - Safe StopTSafe Stop
LCPGGraphical Loc. Cont. Panel
Coating PCBCCoated PCB
Mains OptionXNo Mains Option
Adaptation AXStandard Cable Entries
Adaptation BXNo adaptation
Software ReleaseSXXXLatest release std. SW.
Software Language PackXStandard Language Pack
A OptionA0PROFIBUS DP MCA 101
B OptionBKMCB-101 General purp. I/O
C0 Option MCOCXNo C0 option
C1 OptionXNo C1 option
C Option SoftwareXXNo software option
D OptionD0MCB-107 24V DC backup
Frame SizeD2HD2H
Typecode Part 1FC-202N250T4E54H4TGC
Typecode Part 2XXXSXXXXA0BKCXXXXD0
Product CatalogNO_VIEWNO VIEW
Power 150% (HO) [KW]200200
Power 110% (NO) [KW]250250
Height [mm]1060,01060,0
Width w/ no C options [mm]420,0420,0
Depth [mm]378,0378,0
Depth with Option A/B [mm]378,0378,0
kVA333333
Power Loss NO [W]51375137
Power Loss NO [W]45664566
Power Loss HO [W]40394039
Power Loss HO [W]35753575
Continuous Current (NO) [A]480480
Intermittent Current (NO) [A]528528
Continuous Current (NO) [A]443443
Intermittent Current (NO) [A]487487
Continuous Current (HO) [A]395395
Intermittent Current (HO) [A]592592
Continuous Current (HO) [A]361361
Intermittent Current (HO) [A]542542
Calculated Gross Weight [kg]125.3
Calculated Net Weight [kg]125
ECCN EUY901Y901
ECCN US3A999.a3A999.a
VendorERR01Cannot Determine Vendor
Producing plantERR01Cannot Determine Vendor
Modelcode01FC-202N250T4E54H4TGC
Modelcode02XXXSXXXXA0BKCXXXXD0
Delivering plantERR01ERR01

Datasheet - PDF

▲
Title: Size: Type:
PDF VLT AQUA Drive FC 202 2024 EN.pdf 51 Mbytes
PDF CATALOG DANFOSS GENERAL EN.pdf 2 Mbytes
